Plasma cutting machines

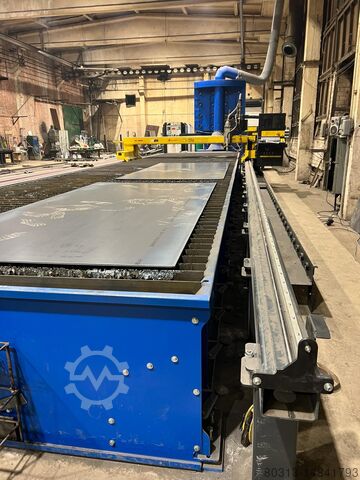

PRECISE PLASMA PP260

Plasma cutting machine from 2017, little used, made in Turkey. Fully operational. Currently selected.

Dodpjrf S Tbsfx Ah Sjkg
Technical Parameters
Table surface: 2 500x 12000 mm
Plasma generator: AJAN PP 260 (Precision Plasma 260 A )

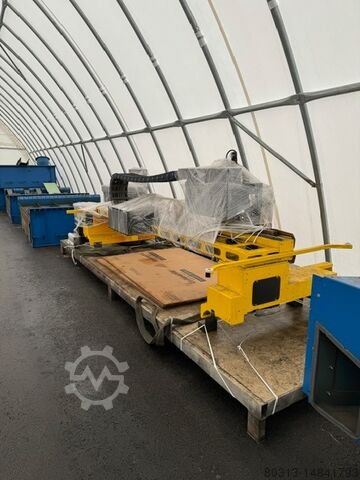

Machine bridges: 1 PCS
Plasma burner: Ajan (1 pc.):
Gas burner: AJAN (1 pc.) + with optical ignition
CNC systems: CNC control, Linux

Standart equipment
Ventilated width of the work table: 2500 mm
Ventilated length of the work table: 12000 mm
Maximum size of the sheet: 2500 x 12000 mm
Quantity of bridges: 1 unit.
Plasma system: PP 260 Ajan
Current: 30A, 80A, 130A, 260A
Cutting Ability (low-carbon steel): 32 mm
Cutting Capacity (stainless metals): 20 mm
Maximum piercing of holes: 40 mm
Max. Cutting ability (cut from edge): 100 mm
Max. Cutting capacity of the gas head: 150 mm
Maximum cutting speed (theoretical): ~ Almm/min (actual speed depends on the material, brand and thickness of the piece)
Positioning max: 15 m/min Re-
positioning max: +/-0.01 mm
Taper angle in accordance with ISO 9013 standard "range 3′
Gases for cutting: 02, N2, F5, H35
Protection: compressed air
Ventilation of the table: mechanical valve

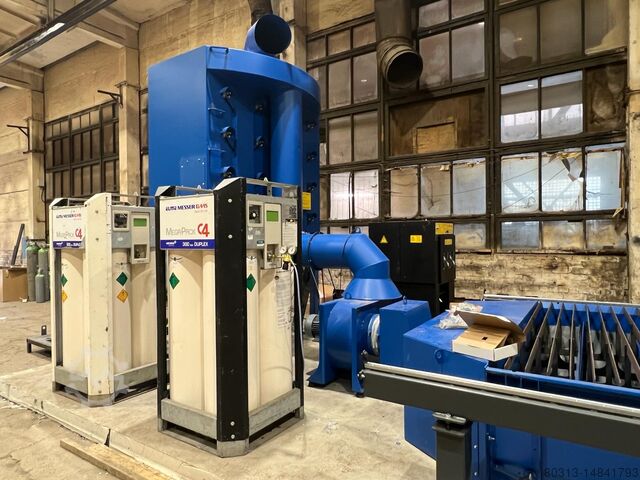

Filtering: JET filter AJF

Functions
- a bridge controlled by two 2-way servomotors of the AC type
- automatic ignition of the gas burner
- automatic gas control (for plasma and gas cutting)
- automatic burner height control (plasma) THC
- the function of "ohmic control"
- function "ARC control"
- function "Microjoint"
- function marking with a plasma head

Control
- programmable possibilities with DIN/ISO codes
- Ability to work with DXF, ESSI, and NC toolpath files
- Ventilator and generator for remote start and remote control with CNC
- AJAN-CAD - AJAN-i own control
- AJANCAM V 7.0 - AJAN-i own software

The start package
Include: 20 electrodes, 20 nozzles, 20 nozzle covers, 2 gas rings, 2 nozzle rings and coolant required to
start the machine.

AJAN-i CNC LINUX
NEW from 2017! AJAN CNC based on the LINUX operating system
"Allinclusive" Control Panel
- Free AJAN-CAD V 7.0
- Free software updates
- Geometric Shape Catalog
Automatic restart if stopped (power)
- Possibility of programming DIN / ISO G codes
- Ability to work in DXF, ESSI trajectories and NC files
- Wide selection, tuning and recording of the program
- Automatic selection of material and parameters (customize)

AJANCAM v 7.0
AJANCamv7.0 was developed by its own software configuration, which has the following features:
- Easy to use, fast and efficient
- Automatic errors, provisioning
- Ability to write a text
- its own directory (libary)
- Automatic or manual placement
- Cutting sequential modelling
- According to the automatic layout of DXF and G-codes ESSI making

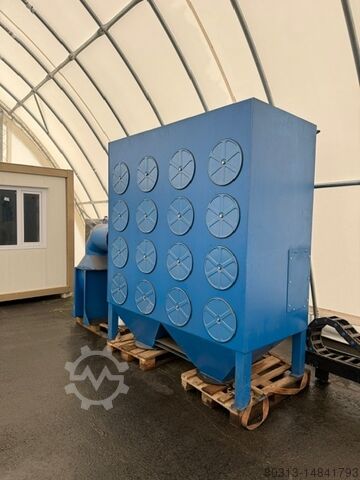

The total ared: 384 m2
Filtration elements: 16
Elements of Noise filter: 85 dBA
Ventilation Fan power: 11kW
Feature blow dry with compressed air

If you have more questions, welcome.
