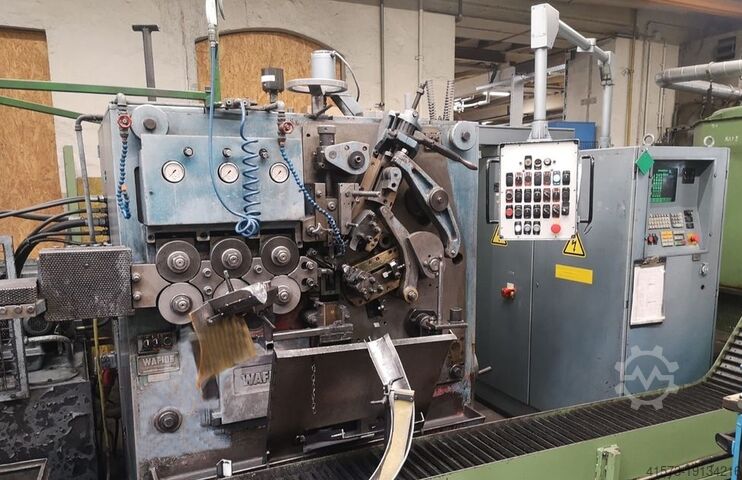

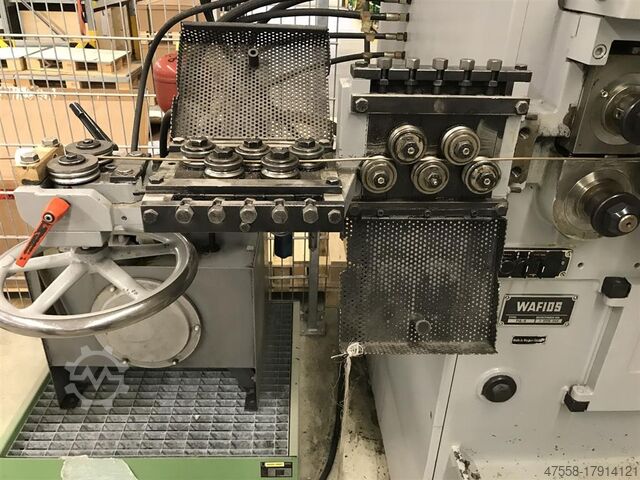

Spring Winding Machine - Automatic

WAFIOS FUL 8

Condition: ready for operation (used), Year of construction: 1982, functionality: fully functional, machine/vehicle number: 22076049, spring diameter: 120 mm, wire diameter (max.): 9 mm, power: 18 kW (24.47 HP), wire diameter (min.): 2 mm, production capacity: 5,400 unit/h, The machine was equipped with a new control system in the year 2000! A programmable, electronically-hydraulically controlled universal spring coiling machine for the production of right-hand and left-hand coiled compression and tension springs, as well as leg springs. The springs can be produced with any desired pitch and spring body shape. TECHNICAL DETAILS Wire diameter max.: 9 mm Wire diameter min.: 2 mm Production capacity max.: 90 pieces/min Outer spring diameter: 10 - 120 mm Wire feed speed: 27 - 80 m/min Wire feed length: unlimited Two-finger system Wire thickness: 2 - 9 mm Outer spring diameter: 10 - 120 mm Single-finger system Wire thickness: 3 - 7 mm Outer spring diameter max.: 60 mm MACHINE DETAILS Operating voltage: 380 V / 50 Hz Control voltage: 220 V Total power requirement: 18 kW Dimensions & Weight Machine dimensions (L x W x H): 3,300 x 1,500 x 1,450 mm Lubrication system dimensions (L x W x H): 830 x 650 x 1,000 mm Control cabinet dimensions (L x W x H): 700 x 1,500 x 1,750 mm Machine weight: approx. 5 t EQUIPMENT 5x feed rollers, wire holder 3 mm, two-finger Rcedpfx Aozb Dapjlaef Spring length measuring device (Model: LION PRECISION-PANTHER) Wire coil holder POST, motor-driven, mandrel holder (diameter: 1,400 mm) Lubrication system Control cabinet cooler RITA Hydraulic unit

Condition: used, Stretch blow molding machine by Etek ISBM line = Injection stretch blow molding Stretch blow molding machine for single-use PET bottles made from PET preforms Redpfxjkucxls Alaocf Stretch blow molding machine for production using the rotary process Manufacturer: ETEK / GF-Industries, Type Supra 800 sv 1 Serial number: 22000225 Year of manufacture: 2012 Power: 90 kW Mains connection: 400 volts, 50 Hz Weight: approximately 6000 kg In like-new condition

Condition: used, Year of construction: 1982, functionality: fully functional, machine/vehicle number: D32L/7864, Offer Number: D32L/7864 Machinetype: spring coiling machine Info: overhauled Make: WAFIOS Rcodpfx Ajwi S Ekelasf Type: FUL8 Constr. year: 1982/2000 wire diameter: 2,0-9,0 mm spring diameter: 10-120 mm feeding length: unlimited output pieces/min: 90 Location: In our warehouse

Year of construction: 1985, condition: reconditioned (used), Technical Details : Redpfxoh In The Alaocf Wire Dimeter range- 4-12mm Gscxckebw Run out table - 4m Speed -80' m/min. Reconstruction- 2022

Condition: used, 72″ x .187″ x 50,000Lb Paxson Loop Slitting Line Make: Paxson Material Width: 12″ – 72″ (Uncoiler 60″) Material Width: .010″ – .187″ Coil Weight: 50,000Lb Coil ID: 20″ – 24″ Coil OD: 72″ Speed: 500 /1000 fpm Direction: Right to Left Material Strength: 40,000 yield / 50,000 psi shear Rcodpfx Asihf Ufjlajf Material: CR, HR, Galvanized Entry Transfer Cart Entry Coil Car Mandrel Uncoiler Powered Hold-Down Roll Powered Expansion Sliding Base Hydraulic Peeling Table Driven Pinch Rolls

Year of construction: 2020, condition: new, Transport systems Depending on the customer's requirements, transport systems can move on the floor or be suspended on poles. - For comfortable solutions for manual installations, we recommend suspended cross traverses (cross transport). - For automated systems, chain conveyors are most often used that do not stop and are a great solution for companies that focus on quality and repeatability of the process. - For companies that make different items at once and have e.g. several cabins with different colors, flexible solutions with the use of the power-and-free conveyor are used. This is the most expensive solution. All installations are made to measure, depending on the customer's requirements. Continuous suspended chain transport systems are designed and manufactured to individual customer orders. Rcodpofz U S Eefx Alaef In this system, it is also possible to make bottom conveyor systems on which details are placed, e.g. flower pots, rims (photo). ROMER also manufactures suspended transport systems. Crossbeams (cross transports) are designed and made for the needs of specific installations The use of one photocell The use of one photocell in the space of the detail allows you to measure its length and, consequently, gives the option of switching on the guns when the detail appears in their range, and switching off the guns immediately after painting the detail. The photocell is standard equipment. Identification of details by means of special markers. Above the sling there are plates with identification holes. Based on them, the PLC controller in conjunction with the photocell recognizes the painted detail, turns the guns on and off in good time - thus saving energy and powder paint. Vertical shape detection. The use of light gates with horizontal detectors allows the PLC controller to analyze the shape of a detail vertically. The PLC controller counts the time in which the detail should appear in the gun space - thanks to this it is possible to selectively turn the guns on or off. Using light gates with multiple sensors horizontally and vertically. This solution allows precise measurement of workpiece dimensions, thanks to which it is also possible to control manipulators.

Condition: like new (used), Year of construction: 2022, functionality: fully functional, machine/vehicle number: 010/Q, For sale is a paper bag making machine manufactured by the company GAPS from Italy. Web width: 670–1670 mm Roll diameter: 1200 mm Core diameter: 76 mm Paper weight: 90–140 g/m² Bag width: 240–540 mm Cut-off length with handles: 380–670 mm Gusset: 90–270 mm Handle height: 100 mm Handle width: 16 mm Patch length: 160 mm Patch height: 52 mm Patch roll diameter: 1200 mm Rcedpeww T Najfx Alaef Patch roll width: 100 mm Patch roll basis weight: 80–100 g/m² Maximum production speed: 120 cycles Connected load: 30 kW Weight: 24,500 kg Machine dimensions: 16,500 × 3,500 × 2,800 mm

Condition: good (used), Year of construction: 2011, machine/vehicle number: 2212.287, Automatic panelsaw Schelling Typ:FH 6 430 Maskin nr:221.287 År:2011 Panel beam saw Schelling with automatic, rear-feed,lifting table. For sawing board material, chipboard, MDF, Plywood, Board, Laminate etc. Techn info: Software MCS Evolution 2.0, SPS, Soft-SPS-Siemens WinAC Operating system WINDOWS XP PC with keyboard and mouse TFT monitor 17" Cutting length 4300mm, automatic detection of the start of the plate Cutting width 4300mm Machine accuracy of the cut length 3m +-0.1mm Positioning accuracy measured at input +-0.1mm Max diameter saw blade 460mm, spindle 30mm Pre-scoring blade 200mm, spindle 20mm motor operation is set from the control console Max panel thickness 120mm Panel stack aligner Main saw blade motor 27kw Saw blade over table 135mm Safety curtain Air cushion table with 3pcs air ball nozzles, radial ventilator fan Table sizes 2650x850mm 620x850mm 2650x2550mm Pressure beam with automatic adjustment of pressure to cut length and package height Package straightener before and after the pressure beam Max package height 120mm (incl. sum of curvature and board thickness tolerance) Pusher with 12 grippers Max clamp opening (gripper) 133mm Min-max force package straightener 400/2000N Speed saw carriage forward 6-150m/min Speed saw carriage back 150m/min Forward feed speed (pusher) up to 25m/min (according to EC Europa EN1870-13) other countries 80m/min Speed feeding back up to 80m/min Push-off device 3 pcs Lift table length x width 4350x2550mm Hydraulic unit Standard version 1600mm lifting height 1.25/2.5m/min raising speed, 1.25/5m/min lowering speed Maximum load 1200 kg/m2 total 9 tons Roller track driven rollers, frequency controlled for stack on lifting table 4100x2600mm Max stack weight 6500 kg Max stack length 1060mm Slots for forklift 4 pcs, distance in the middle 1200mm, slot width 300mm Light curtain for personal protection Roller conveyor driven for package frequency controlled input to lifting table left 5600x2600mm max load 6500kg Roller conveyor driven for packages frequency controlled input to lifting table right 5600x2600mm max load 6500kg Slots for forklift 2 pcs, center distance 900mm, slot width 400mm 2 positioning stops with roller for stack alignment Light curtain (double beam) for personal protection Roller table after saw depth 4300mm, free-running ployamide rollers Angle stop at the rolling table Infeed guide two-lane (beam length 7200mm) 2-sided hardened precision guides rack and pinion drive, two-sided Input carriage (pusher) gear rack servo drive, non-contact measuring system Gripper, (scissor clamps) in pusher 12 pcs Automatic adaptation of the clamping force to the package height (progressive clamping force) can be set to 0 Rcedpfx Aetk It Solasf Pusher for panels thickness greater than 6mm,material thinner than 6mm is fed manually Central cleaning system feed trough (pusher) Compressed air 6-8 bar, approx. 1600l/min Power 38 kw, 70 A. 3x400 volts, 50 Hz, operating voltage 24 VDC Dust extraction 4000m/h, air speed 30m/s Diameter connection 80mm (angle connection), 120mm /pressure beam), 150mm (sawdust channel) Total setup area without driven roller conveyors including protective grid approx: 11650x7300mm Driven roller tracks left-right 5500+5500mm Stock no: 2002125BXACEO Subject to incorrect technical data presented

Year of construction: 2015, condition: good (used), We are selling 3 used paper pulp thermoforming machines in good condition and additional equipment. Model TPM-1500, manufactured by "Taiwan Pulp Molding" - one of the world's leading companies in this area. Thermoforming Line Description: 3 stage production (forming + drying 30t + hot pressing 50t). 480 v, 60 Hz; Manufacture date - Oct. 2015. Rjdpfx Alsnab Evjajcf Effective Molding Area, mm - 1500 x 900 x 120; Overall dimensions, mm - 7600 x 2250 x 3700; Weight - 16 tonnes; Production speed - up to 80 kg/h; The necessary quantity of operators - 1; Press pressure (critical for quality and performance) - 40t (1st) / 50t (2nd); Movement mechanism - Servo drive + ball screw, encoder positioning, accuracy +/- 0.01 mm for the drive, 0.05 mm for the mechanics; Automated sprinkles for quality improvement - For molds: adjustable time interval (15-20 bar). For products: automatic (2-3 bar); Safety - emergency stop button, optical sensors, zone security fences. Installed power - Up to 400 kW, depending on the type of product and quantity of heating elements. Features: 1. Completely dry-in-the-mold pulp product. 2. No distortion or variation in shape & size. 3. Smooth surface, highest quality finish in the industry. 4. Maximum mold utilization. 5. Suitable for various product's wall thicknesses. Suitable for the production of the following products: High-finish molded paper packaging; Single-use paper dishware; Single-use paper Cup lids; Paper Cup holders; Paper egg cartons; etc. Each Thermoformer set includes: Taiwan Pulp Molding Auto Stacker - TPM-AS-1500 0.5 HP, Two-Stage Auto Stacker 480 v, 60 Hz, Belt Width: 1500 mm; Cutes Water-ring Vacuum Pump (2017) - Cutes NN-1001FCD vacuum pump, 75 HP, 880 RPM, 1,000 CFM. Price per 1 Set: Thermoforming machine 300 000 euro + Autostacker 20 000 euro + Cutes water-ring vacuum pump 5 000 euros = 325 000 euros per set. If purchase few sets discount can be discussed. The last set includes a pulp preparation system and costs + 50 000 euros: 1. Taiwan Pulp Molding Co. Hydropulper w/Auto Feeding Conveyor (2017) - stainless steel hydropulper w/ 100 HP motor, 90" x 80" tall, w/ 47" x 44" x 31" dump hopper, including auto feeding conveyor; 2. BTG Instruments Consistency Control Unit - MnCPM-1300 type HX/Q0/C2/5/10 consistency transmitter unit; 3. Conical Refiner 75 HP; 4. Taiwan Pulp Molding Co. Cleaner Screen (2017) - 30 HP;

Condition: excellent (used), Year of construction: 2005, Vertical blockmold: KURTZ mod. MFV (4920 x 1274/1000 x 1240mm) Basic data: -Year of manufacture: 2005 -Block dimensions (HxWxL): 4920 x 1274/1000 x 1240mm -Operating voltage: 3×400 V, 50 Hz Rcjdpfx Aoucvq Hjlajf -Power consumption: 77 kW -Blockmold with movable side wall -Complete vacuum system (GARDNER DENVER / SIEMENS) -Hydraulic system: REXROTH–BOSCH -Operational pre-loading silo for the blockmold with dedusting system -Siemens PLC controller and Siemens touch-screen HMI control panel replaced with NEW units in 2019, including a control software upgrade -Siemens TOUCH SCREEN panel (replaced with a NEW one with a larger display) -MATTHEWS printer for block labeling/date marking -Block evacuation system with block storage -Complete set of documentation -Condition: EXCELLENT It is possible to adjust the maximum block height to, for example, 4550–4600 mm. TAG: Block mold, block mould, block-form, styrofoam, EPS, VIRO, Kurtz, Erlenbach, EREMA, Teubert, Lauscha, Autefa, HIRSCH, EPPINGER, Mert Makina
