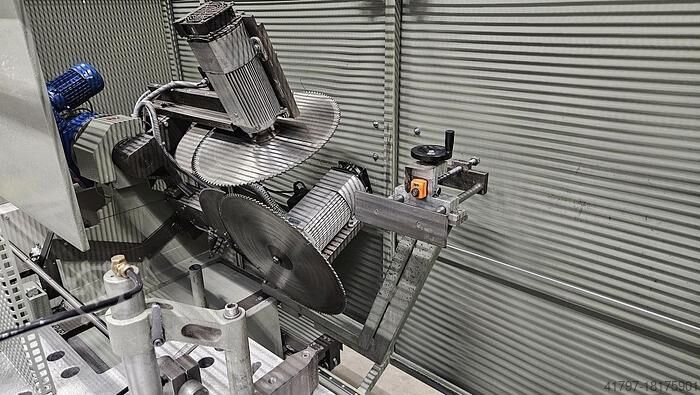

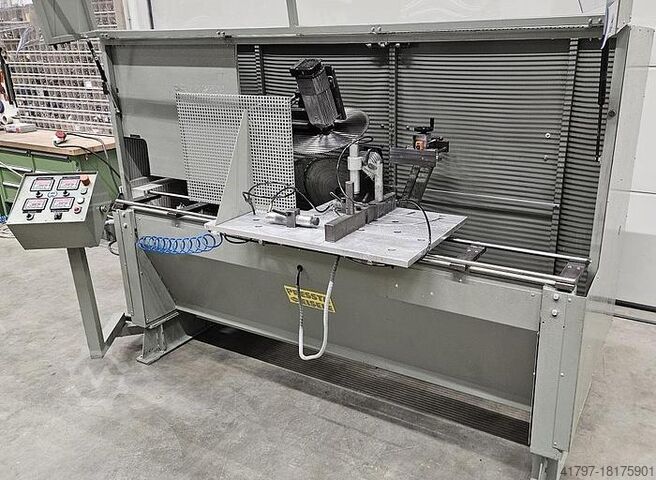

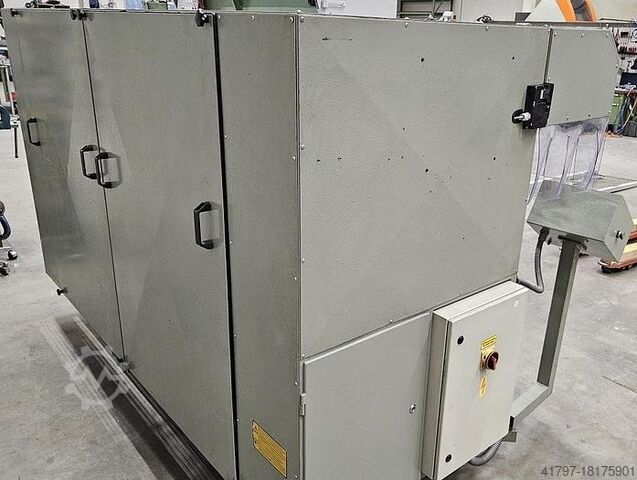

1999 Pressta Eisele Prisma 500

Pressta Eisele Prisma 500

Condition: used, Year of construction: 2017, For processing aluminum and PVC profiles: * Miter cuts possible in 3 planes, also usable as a crosscut saw. * Manual adjustment of the horizontal saw blade, allowing it to be positioned up to 20 mm in front of the vertical blade. * Notching options: right-angled, single-sided bevel, double-sided bevel, triple-sided bevel. Bsdpjzrk Rbjfx Ahmodh * Processing of profiles up to 300 mm wide at 90°, sharp miter cuts up to 30°, profile height 280 mm. * Notching depth: horizontal up to 185 mm, vertical up to 210 mm at 90°. * Notching width at 90°: 300 mm. * Max. profile height 280 mm. * Swivel range of the saw blade vertically from 30° - 90° - 30° (front/center/rear) manually, positioning via a mechanical digital display. * Swivel range of the saw blade horizontally with the vertical saw blade 30° - 90° - 30°, manually, positioning via a mechanical digital display. * Material stop (tabletop) can be swivelled manually to the left and right from 30° - 90° - 30°, positioning via a scale. * Material depth stop is manually adjustable with a sliding carriage and hand clamp, positioning via a mechanical digital display.

Year of construction: 1996, condition: good (used), machine/vehicle number: 9182, Offer 23168 Technical data: - Notching possibilities + miters in 3 planes - right-angled, one-sided + two-sided + three-sided oblique . - Can be used as a shift cut crosscut saw - Pneumatic profile clamping Machining with semi-automatic sawing units - Saw blade dimensions - vertical 500 x 3,5 x 40 mm positive - horizontal 500 x 3,5 x 40 mm negative Bedpfx Ahjmb U E Ajmedh - notching width / notching height at 90° 300 / 285 mm - vertical saw blade 60° - 90° - 25° mot. positioning with digital display - Swiveling range saw blade horiz. with vert. saw blade Saw blade - 45° - 90° - 45° mot. positioning with digital displays - Notching height adjustment with digital displays - profile stop shoulder manually tiltable 30° - 90° - 45° - pneumatic coolant check device - air connection 6 bar - drive 400 V / 2 x 3 kW - space requirement approx. W 2400 x H 2000 / D 1400 mm - weight approx. 1200 kg

Condition: as good as new (ex-display), Year of construction: 2018, saw blade diameter: 550,500 mm, Machine in perfect technical condition. Practically very little used. For processing aluminum and PVC profiles. Mitres possible in 3 levels and can be used as a splitting saw, manual adjustment of the horizontal saw blade by a maximum of 20 mm in front of the vertical saw blade. Notch options: rectangular, one-sided diagonal, two-sided diagonal, three-sided diagonal. Bedpfovtarnox Ahmsdh Processing of profiles up to 300, width up to 90 °, bevels up to 30 °. Notch depth horizontally up to 185 mm, vertically up to 210 mm at an angle of 90 °. Notch width at 90 °: 300 mm, profile height 280 mm Manual adjustment of the notch and height, positioning using mechanical digital displays. Vertical saw blade rotation range 30° – 90° – 30°, (front/middle/back) manual, positioning via digital display. Vertical saw blade rotation range 30° – 90° – 30°, manual, positioning via digital display. The material stop (table top) can be manually rotated left and right within the range of 30° - 90° - 30°, positioning via measuring scale. The material depth stop can be manually adjusted via the sliding carriage and manual clamp, positioning via digital display.

Year of construction: 1997, condition: used, Saw blade diameter vertical and horizontal: 500 mm Max. profile height: 280 mm Max. notch width: 300 mm Max. latch height: 185 mm Max. latch depth: 185 mm Pivoting material stop with locking points and digital display Motorized latch height adjustable with digital display Motorized adjustment of the angles with digital display Hydropneumatic material feed via 2-hand operation Bdodpfsx Ecg Uex Ahmjh Pneumatic material clamps coolant lubrication
