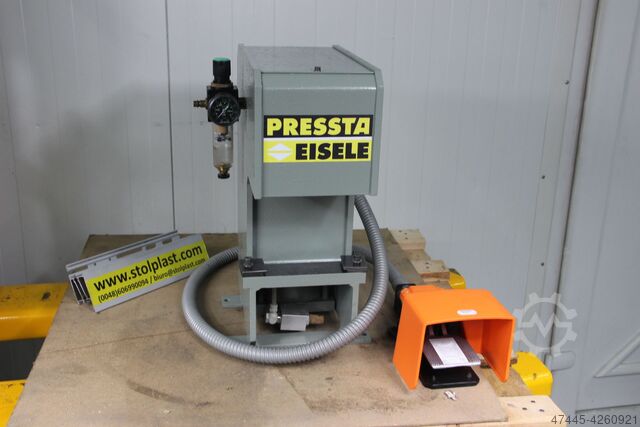

Punching Machine

Pressta-Eisele KTS

Condition: as good as new (ex-display), Year of construction: 2018, saw blade diameter: 550,500 mm, Machine in perfect technical condition. Practically very little used. For processing aluminum and PVC profiles. Fedpfsvtarnsx Afuopn Mitres possible in 3 levels and can be used as a splitting saw, manual adjustment of the horizontal saw blade by a maximum of 20 mm in front of the vertical saw blade. Notch options: rectangular, one-sided diagonal, two-sided diagonal, three-sided diagonal. Processing of profiles up to 300, width up to 90 °, bevels up to 30 °. Notch depth horizontally up to 185 mm, vertically up to 210 mm at an angle of 90 °. Notch width at 90 °: 300 mm, profile height 280 mm Manual adjustment of the notch and height, positioning using mechanical digital displays. Vertical saw blade rotation range 30° – 90° – 30°, (front/middle/back) manual, positioning via digital display. Vertical saw blade rotation range 30° – 90° – 30°, manual, positioning via digital display. The material stop (table top) can be manually rotated left and right within the range of 30° - 90° - 30°, positioning via measuring scale. The material depth stop can be manually adjusted via the sliding carriage and manual clamp, positioning via digital display.

Condition: repair required (used), Year of construction: 2024, Overhauled: 2024 PLC control: Siemens S7 Saw blade 60 - 250 mm Motor power 1.5 KW Saw blade feed 0-20 mm/min Cutting speed: 15 - 170 m/min (steel) 630 - 1885 m/min (non-ferrous metal) Max. working area: 70x40 mm (steel) Working area max.: 60x40 mm (non-ferrous metal) Working range round: 5 - 70 mm (steel) Working range round: 5 - 50 mm (non-ferrous metal) Feed length 5 - 500 mm 5-9999 (multiple stroke) Feed speed max. 500 mm/sec Weight (saw)approx.: 610 kg Dimensions LxWxH (saw)approx.:2500mm x 1000mm x 2000mm The machine will be overhauled in our company on customer request. Among other things, the following points will be renewed: - Conversion to Siemens S7 PLC control - Conversion to Siemens HMI control panel - Replacement of the pneumatic feed or replacement of the ball screw spindle Fpedpfxjuiy I As Afusn - Replacement of servo motor and servo inverter - Replacement of the frequency converter for the main saw drive - New electronic components - New pneumatic lines - Maintenance or replacement of all pneumatic cylinders and valve terminals - Optimization of the suction concept - Maintenance of the central and minimum lubrication system - Replacement of general wear parts - Overhaul of the machine body The machine also has: - Minimum lubrication for optimum sawing quality Due to its equipment and design, the machine is suitable for mass cutting of steel in the high-precision tolerance range. Guarantee: Unless otherwise agreed, we guarantee our machines for 6 months on all parts overhauled or replaced by us. Working time and wearing parts are excluded from the guarantee. Optional: - Conversion of the sawing unit to a gearless main drive for sawing non-ferrous metals and plastic materials (speed 1000 - 3000/1min.). - Feed unit 1000mm - Feed unit 2000mm - Screw magazine 4m - Screw magazine 6m - Servo-controlled material feed - Servo-controlled saw feed - Conversion to prismatic jaws (60°) for mass clamping of round materials - Discharge system - Delivery and installation on your premises - Training of your employees

Condition: excellent (used), Year of construction: 2007, Complete saw line consisting of loading unit, fully automatic circular saw, and unloading unit. Suitable for a wide range of applications, especially in the photovoltaic and automotive industries. Loading Unit: - Horizontal loading magazine model HLM - 4-strand timing belt conveyor - 6 compartments, each 285mm wide, for profile feeding - Maximum material height according to the saw cutting area; round material up to max. diameter 130mm - 3 sliding strips between timing belts as additional support - Profile length min. 2,700mm, max. 6,500mm Fjdsxvbvvjpfx Afuopn Saw: - Fully automatic circular saw Pressta-Eisele model PROFILMA 510 E-SA - Saw blade diameter max. 500mm - Continuously variable speed adjustment - Hydro-pneumatic saw blade feed, infinitely adjustable, from rear to front - Siemens S7-300 control system with touchscreen - Reversing device with five-fold stroke up to max. 5,000mm - Electric material feed 3 – 1,000mm (single stroke) - Cutting gap extension on both sides - Pneumatic unloading slide - Scrap flap after saw for offcuts / remains - Cut length depending on profile, from 8mm - Menzel minimum quantity lubrication system - Clamping pressure regulation - Two extraction nozzles for chip extraction Unloading: - Table size 1,500mm x 2,500mm - Pneumatic cross pusher

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, High-performance automatic sawing machine / Brand: PRESSTA-EISELE Type: Profilma 510 / Year of construction: 09/2008 Description: * High-performance automatic sawing machine with fully automatic operation, * Very high cutting accuracy, * Low cycle times, * Burdere-free sawing, * High reliability, * Low maintenance Suitable for aluminum and plastic, for cutting large quantities of small parts, length tolerance 1/10 mm. The automatic sawing machine can be inspected and tested by appointment. Fpedpfjw D T Uisx Afusn Previous use: Used for cutting corner connectors. Condition: Very well maintained, used, ready to use. Technical specifications: - Saw motor: 7,5 kW, S6 - Speed: 2.000 - 3.500 rpm - Cutting speed: up to 92 m/s - Material feed length: up to 1.000 mm / 5-fold reversal possible - Section length: from 8 mm depending on profile - Remaining piece length: from 90 mm depending on section length - Working pressure: 6 - 8 bar - Power supply: Standard: 400 V, 50 Hz - Weight: 1.750 kg - Dimensions Length/Depth/Height: 2.700 x 1.400 x 2.300 mm Equipment: - Control via Siemens S7 panel - Fully automatic bar feed - Roller conveyors - Extraction - Chip bunker - Various accessories - CE marking There is no guarantee for correctness and completeness of the technical details and accessories.

Condition: new, Year of construction: 2023, IN STOCK -- Fully automatic aluminium circular saw with 90° cutting capability and drilling unit TR 12 (up to ø10 mm) or TR 20 (up to ø20 mm), featuring simple and safe operation with excellent cutting performance. This machine is capable of only making 90° cuts, allowing workpieces to be drilled and cut in a single workflow. Technical Specifications: ● Cutting range: 90°: round 100 mm / square 100 x 100 mm / rectangle 170 x 60 mm ● Drive power: 1,9 kW / 400 V / 50 Hz ● Speed: 3000 RPM ● Feed: Single feed 300 mm (double stroke up to 600 mm) ● Max. Cutting Height: 100 mm ● Blade Dimension: 350 x 32 mm Fpjdpfx Afemftiwsujn Standard Equipment: ● Machine with 90° cutting capability, powered by a high-performance motor ● Clear and large-sized control panel ● Length adjustment from 5 to 300 mm via handwheel and counter ● Main clamping unit with 3 pneumatic clamping cylinders (1 horizontal, 2 vertical) ● Feed clamping unit with horizontal and vertical pneumatic clamping cylinder ● Large protective cover, covering the entire working area, pneumatically raised ● Adjustable cutting and feed speed ● Air gun for cleaning the machine ● Connections for dust extraction system ● Minimal lubrication system ● TR 12 or TR 20, fixed automatic drilling unit with one tool holder; spindle speed adjustment, drilling depth, etc. are manually adjusted; drilling cycle occurs automatically --> Also availabe with CNC control or in various sizes!

Condition: like new (used), Year of construction: 2023, functionality: fully functional, machine/vehicle number: G90230201, saw blade diameter: 350 mm, total length: 1,500 mm, total width: 970 mm, total height: 1,400 mm, cutting height (max.): 100 mm, overall weight: 350 kg, saw blade speed: 3,000 rpm, input voltage: 400 V, Automatic CNC controlled circular saw for cutting and drilling / tapping aluminium. Tronzadoras MG - GAA-350-90+CNC+TR12 • Automatic cycle. • 700 mm ballscrew feeder. • OMRON controller. Fedpfxjvl Eahj Afuepn • 10 programs with 30 lines. • 20 parts in memory. • Emergency stop. • Adjustable feeding and cutting speeds. • Automatic adjusted cutting length with multiple advances. • Cut to 90º. • Automatic air-oil cooling. • Semi-automatic or fully automatic operation. The machine is inspected, serviced and ready for work.

Condition: refurbished (used), Year of construction: 2007, functionality: fully functional, Semi-automatic circular saw for aluminium and non-ferrous metals with PD200-E-7 length measuring system Completely overhauled and fully functional Features: - Large cutting range with saw blade Ø 700 mm - Maximum profile width up to 530 mm, profile height up to 270 mm - Saw blade feed hydro-pneumatically adjustable from the outside - Radial feed movement from bottom to top - Saw motor drive power 7.5 kW - Infinitely variable blade speed adjustment - Metered spray unit - 2 vertical and horizontal clamping devices, each with pressure reduction - Infinitely adjustable feed rate of the saw unit - Manually operated safety guard Technical data: - Drive: 7.5 kW - Speed: 1300 - 2000 rpm - Cutting speed: 48 - 73 m/sec - Air pressure: 6 - 8 bar Fjdpfox Eb Anex Afujpn - Working height: 970 mm - Weight: 1250 kg - Dimensions: H 1900 x W 1400 x D 1700 mm - Height with guard open: 2450 mm PD200-E-7 length measuring system - Usable as a stop as well as a pusher - Measuring length: 6 m - Positioning control for automatic positioning - Easy-to-read LED display for target length, actual length, and quantity - Positioning accuracy 0.1 mm/m - Piece counter for number of completed pieces / cuts
