Machining Centre

Quaser MV184P

Condition: used, Year of construction: 2015, Quaser MV184P Machining Centre, Table Size 1200 x 600mm, 30 ATC. Serial No. 119K151271 (2015) No vice included. Country of Origin: Taiwan Dcsdpfoxftp Hsx Acwon A charge of £600 for dismantling and loading onto suitable transport will be automatically added to your invoice should you be successful in purchasing this item. Blocking and securing will be at the cost of the purchaser.

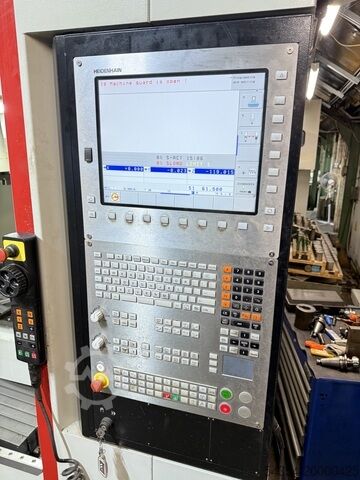

Condition: excellent (used), Year of construction: 2014, travel distance X-axis: 1,020 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 610 mm, spindle speed (max.): 12,000 rpm, spindle motor power: 25,000 W, spindle nose: 40, number of slots in tool magazine: 30, input voltage: 380 V, type of input current: three-phase, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, High-speed, high-precision 3-axis vertical machining center with HEIDENHAIN iTNC 530 CNC, fully equipped with: HEIDENHAIN linear scales on all 3 axes, BLUM TC-50 wireless workpiece probe, BLUM NT-A2 laser tool presetter (brand new, still packed), HR-410 electronic handwheel, KESSLER motor spindle 12,000 rpm, 25 kW, ISO 40 tool taper, 30-position tool changer, high-pressure through-spindle coolant at 20 bar, and chip conveyor. Main specifications: X-axis travel: 1020 mm Y-axis travel: 610 mm Z-axis travel: 610 mm Rapid traverse X-Y-Z: 40 - 40 - 36 m/min Dcsdpfx Asw Rmawscwon Maximum table load: 500 kg Table size: 1200 x 600 mm Max tool diameter: 75 (125) mm Max tool length: 280 mm Max tool weight: 7 kg Machine weight: 7390 kg Overall dimensions: 2760 x 2800 x 2860 mm Machine in perfect condition, as shown in the pictures.

Condition: used, Year of construction: 2012, travel distance X-axis: 1,020 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 610 mm, overall weight: 7,000 kg, Quaser MV184 P 3-axis cnc center passes: X1020mm Y610mm Z610mm Table size 1200x600mm Dodpfxjufh Dkj Acwjcn Spindle 22-30Kw max 12000 rpm Tool magazine 30 pieces BT40 Renishaw OMP40 measuring probe Spindle cooling 20 bar Fanuc 31i control with USB 1GB memory with machine chip conveyor, tools, measuring probe, documentation of the machine very good condition of the machine

Condition: used, Year of construction: 2017, travel distance X-axis: 1,020 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 610 mm, controller manufacturer: HEIDENHAIN, controller model: TNC 640, table width: 600 mm, table length: 1,200 mm, rotational speed (max.): 12,000 rpm, overall weight: 7,100 kg, X travel 1020 mm Y travel 610 mm Dcedpfxswx H Tuj Acwen Z travel 610 mm Spindle speed 12,000 rpm Table size 1200 x 600 mm Control TNC 640 Taper ISO 40 Machine weight approx. 7,090 kg Dimensions 2800 x 2760 x 2860 mm
