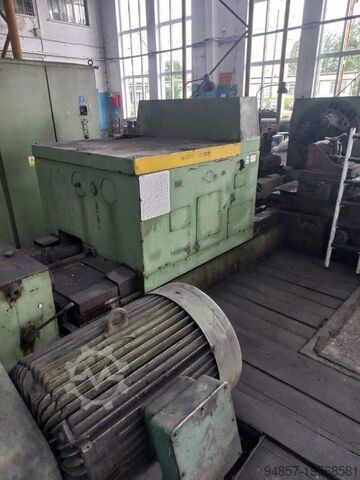

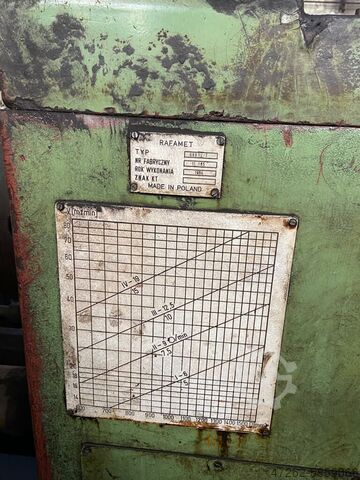

Wheel Lathe Rafamet UBB 112

RAFAMET UBB 112

Year of construction: 1984, condition: ready for operation (used), Rafamet UBB 112/2 Wheel Tread Diameter Minimum 700 mm Wheel Tread Diameter Maximum 1120 mm Fedpfx Aohvml Iod Iogg Clamping length 540 - 1050 mm Wheelset Axle Length Minimum 1640 mm Wheelset Axle Length Maximum 2800 mm Maximum Tire Width 150 mm Maximum Wheelset Weight 4000 kg Saddle Set Up Motion Speed 2000 mm/min Saddle Feed Maximum 2000 mm/min Main Drive Motor Power 80 kW Weight aprox 40000 kg

Condition: good (used), centerless grinding machine Fgjdpfx Adetrguvs Ijg

Condition: ready for operation (used), Year of construction: 1980, Gleason Hypoid cutter Sharpener 13A -1 pcs Milling diameter 89-500 mm Fgjdpfx Ajr Elpvsd Iog Grinding wheel dimensions 305x19x102 mm Feed 0,05-0,18 mm Grinding wheel drive motor - 1800 rpm (60 Hz) - 1500 rpm (50 Hz) Floor space 1240x2310 mm Height 1422 mm Machine weight 4083 kg Gleason 19 revacicle cutter checking machine - 1 pcs

Condition: new, For sale, a pipe straightener from the German manufacturer SMS MEER, the machine is brand new, it was dismantled from a plant that collapsed during the delivery and assembly of the machine. The machine has two Siemens 200 kW drive motors each. Straightening rollers have a length of 460mm, diameter on the sides 400mm, diameter in the middle 300mm. Fgsdpfxom H Unhj Ad Isg The weight of the machine itself is 44 tons, the total weight is 55 tons. I can send a lot of photos before dismentling.

Condition: good (used), Year of construction: 1979, Single column vertical turning lathe BERTHIEZ TM500 SP Manufacturer: Berthiez (France) Model: TM500 SP Year of manufacture: 1979 Main technical data: Table diameter: 6300 mm Maximum turning diameter: 15000 mm Maximum usable height: 4000 mm Arm travel: 3600 mm Main motor power: 100KW Maximum allowable load on faceplate: 80 t Fgsdpfsx A U Rajx Ad Ieg Ram size: 360x360 mm Machine weight: approx. 230 tons The machine is capable of both turning and milling operations. Do not hesitate to contact us for any additional information.

Condition: refurbished (used), Year of construction: 2017, functionality: fully functional, overall weight: 120,000 kg, total height: 5,600 mm, pressing force: 1,250 t, air pressure: 6 bar, distance between side stands: 1,200 mm, distance between stands: 1,400 mm, stroke length: 500 mm, table length: 1,850 mm, table width: 1,600 mm, Straight-sided eccentric press ERFURT type PKZe 1250 Fedpfx Adsubyrxe Ijgg Superb working condition, after full, professional overhaul. After - newer used. Specification: Capacity: 1250 ton force Slide stroke: 500 mm Slide adjustment: 215 mm Maximum shut height between bolster plate and slide (stroke down, adjustment up): 860 mm Bed area (width x depth): 1600x1850 Slide area (width x depth): 1300x1400 mm Opening in the bed (width x depth): 1100x1100 mm Main motor rating: 90 kW at 1478 RPM Ram adjusting motor rate: 7.5 kW at 1450 RPM Number of single strokes: 8 min-1 Cushion capacity: 200 ton force Cushion stroke: 200 mm Height above floor: 7900 mm Press weight: 130 000 kg.

Year of construction: 1978, condition: ready for operation (used), A Haeusler CNC large-format 4-roll plate bending machine is available. Number of rolls: 4, Roll width: 3050mm, Max. prebending plate width: 3000mm, Max. prebending plate thickness: 60mm, Max. rolling capacity at max. plate width and 3500mm bending diameter: 70mm, Roll diameter top/bottom/side: 620mm/600mm/500mm, Max. top roll load: 12000kN, Operating speed: 4m/min, Connected load: 132kW, Weight: approx. 85t. Including cone bending device. Documentation available. An on-site inspection is possible. Fgedozka H Aepfx Ad Ieg

Condition: excellent (used), Year of construction: 1970, functionality: fully functional, I am selling this machine; it is connected and can be tested. A video of the machine can be sent via WhatsApp. Swing diameter over bed: 1250 mm – Swing diameter over support: 1000 mm – Turning length: 6000 mm. Fjdpoxwqk Esfx Ad Iogg

Condition: good (used), Manufacturer: INNOCENTI Type: PM 325 FT Year of construction: 2012 Specifications: Metric Metric US Standard Table length 4250 mm Table width 4250 mm Table load 130.000 V-axis feed 3000 mm B-axis rotation 360.000 ° High-speed rotation B-axis 0.16 - 34.5 Omw/min. Dimensions (estimate) length 8000 mm Fjdpfx Ajtwllfsd Iogg width 4250 mm height 2000 mm weight 62500 kg Please note: The information on this page is given in good faith and to the best of our knowledge, and where possible, has been obtained from the manufacturer, but accuracy cannot be guaranteed. Accordingly, it does not constitute a representation or contract and we recommend that you check all relevant details.

Condition: good (used), Center height: 1,000 mm Distance between centers: 15,600 mm Maximum diameter allowed above the bed: 2,019 mm Maximum diameter allowed above the carriage: 1,625 mm Diameter of the faceplate: 1,800 mm Maximum clamping between chucks: 1,500 mm Maximum load: 75 tons Spindle motor power: 82 Approximate dimensions: Length = 21,570 mm, Width = 4,765 mm Accelerated carriage travel: 2,000 mm/min Metric thread possibilities: from 2 to 25 mm Maximum thread length: 800 mm Minimum distance from faceplate to tool: 2,000 mm Accessories: Fedpfszbt S Ijx Ad Ijgg 2 faceplates with a diameter of 1,100 mm on a traveling steady rest 2 steady rests, 150 to 450 mm 2 steady rests, 450 to 750 mm 2 steady rests, 750 to 1,000 mm (on a traveling steady rest) Videos available.
