Double mitre saw

RAPID DGL 200 E

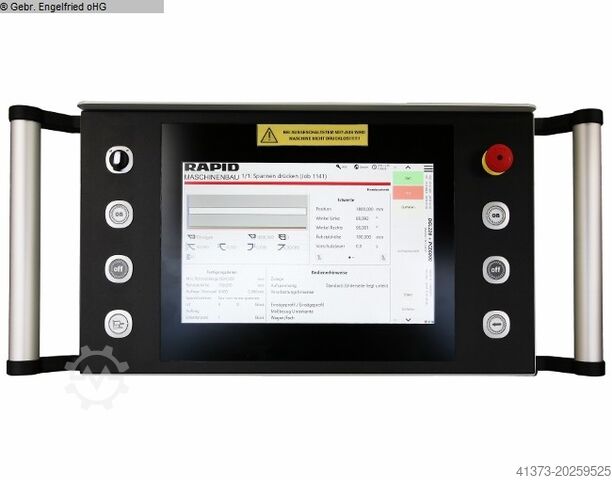

Condition: ready for operation (used), Year of construction: 2017, total height: 1,900 mm, overall weight: 1,260 kg, This RAPID DGL 200-E sawing machine was manufactured in 2017. It features a manual swivel range from 45° to 90°, a 500mm saw blade, and pneumatic saw feed. It includes both horizontal and vertical clamping cylinders, enhancing its versatility. Dimensions for the 3700mm cutting length are 5250 x 1420 x 1900 mm, and it weighs 1260kg. A robust choice for diverse cutting needs. Contact us for further details regarding this sawing machine. Additional equipment • Pneumatic saw feed • Clamping device:2 horizontal clamping cylinders 2 vertical clamping cylinders Machine Benefits Qualitative Machine Benefits • The machine ran in two shifts for approximately 3 years and in one shift for the last few years. Technical Machine Benefits • Max blade diameter: 500 mm • Swivel range: manual 45° to 90° • Cutting lengths: 3700 mm Njdjzvu Npspfx Agrodb Extra Information Drive: 2 x 2.2 kW motors Unit adjustment: Motor-initiated Saw feed: Pneumatic Swivel range: 45-90°, manually adjustable Clamping device: Two horizontal clamping cylinders Control system: Prepared for the attachment of a Rapid control system Fixed center support to support the profiles Saw blades D=500 2x ball screw spindle for unit adjustment Smallest sawing dimension: approx. 310 mm Equipment: DGL-200/R600 ELEKTRONIK with ATV 32 DGL200SE VERT. CLAMP NO. M. AGAINST DGL-200E DGL200TK SHORT T. CONNECTION DGL-200RB Movable roller conveyor, width 215 mm DGL-200E CONNECTION 2.2KW Preparation for FRENIC EXTRACTION CONNECTION Socket connection for extraction up to max. 2.2 kW prepared at the factory DGL200VP - PLANK PACK. FIXED CONTROL PANEL DG1.200 Dimensions Machine Depth 5250 mm

Condition: good (used), Year of construction: 1997, Double miter saw RAPID DGS 200 Year of manufacture 1997 Drive: 2 x 2.2 kW, 400 V Swiveling range, manual: 45° to 90° Saw blade: 420 mm Ø Saw feed: pneumatic Cutting length: 4000 mm Profile clamping: 2 horizontal clamping cylinders 2 vertical clamping cylinders Nedpohctt Ejfx Agrjdb Length adjustment: manual Length display: digital Air pressure: 7 bar Profile support: fixed on the outside, movable in the center Dimensions (L/W/H): 5200/1200/1500 mm Weight: 800 kg
