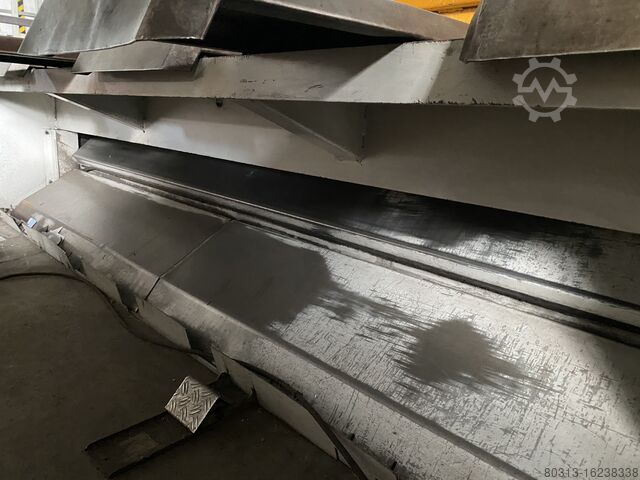

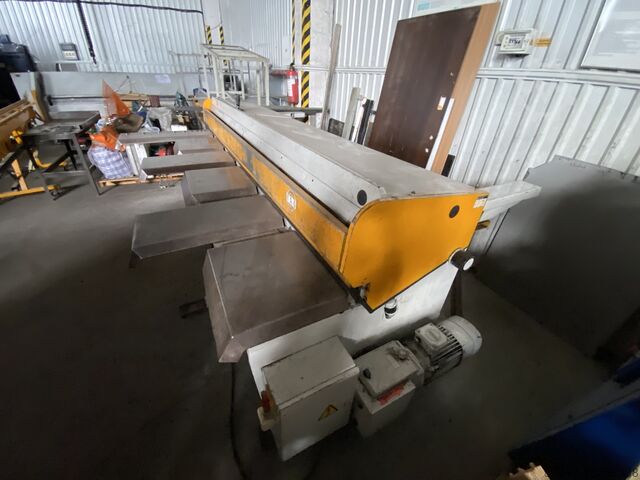

Plate shear

RAS 52.30

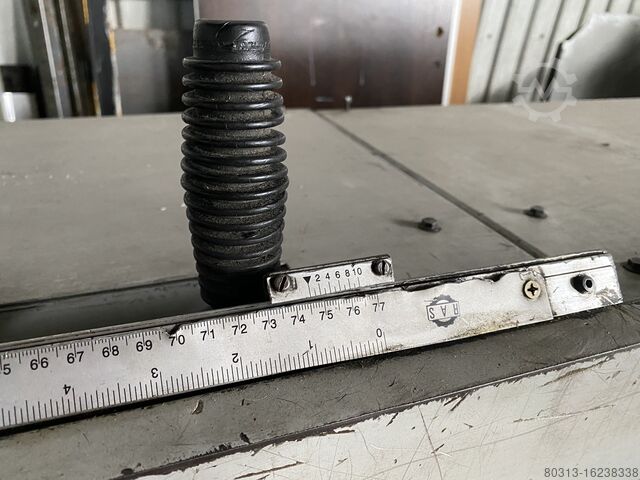

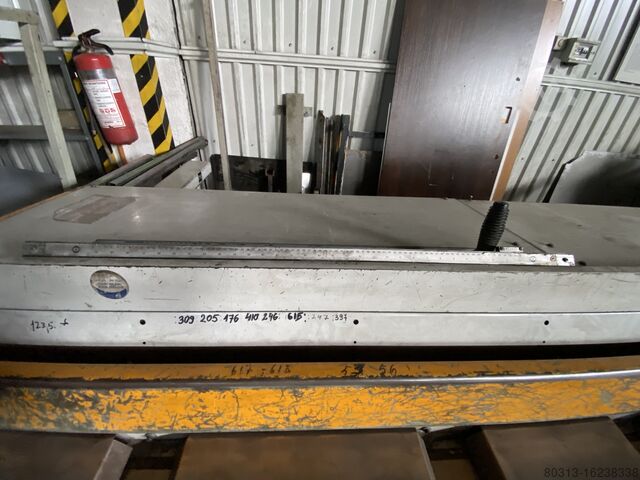

Condition: used, Year of construction: 1993, Technical details: sheet width: 3050 mm plate thickness: 6,0 mm distance between columns: 3460 mm no. of strokes: min./max.: 9 / 17 Hub/min back gauge: 750 mm (motorisch) mm cutting angle: 0,5° - 3,0° ° cutting gap adjustment: manuell mm down holder: 18 Stück (hydraulisch) Stück Podpfx Amsu Rni Hexerb Table dimensions: 380 x 3100 mm total connected load: 7,5 kW weight of the machine ca.: 4,56 t dimensions of machine: L: 3,64 x B: 2,55 x H: 1,58 m Equipment: With side stop L: 1000 × W: 100 × H: 60 mm and stop bar 990 mm, with 8 supports Operation via control panel and foot switch Cutting zone lighting Stroke counter Machine feet *
