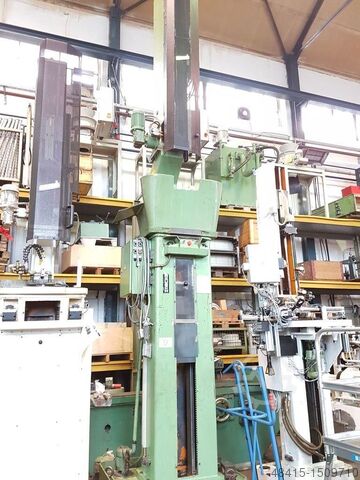

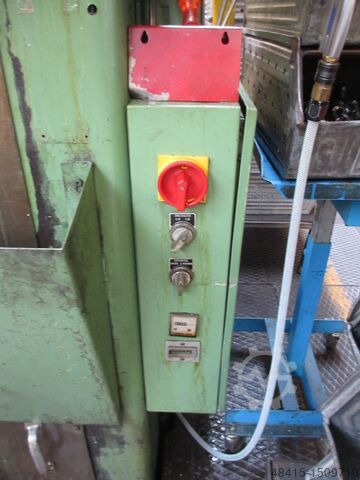

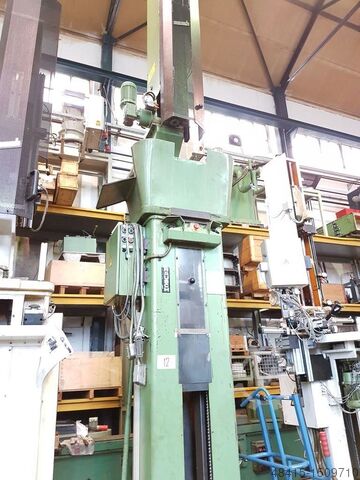

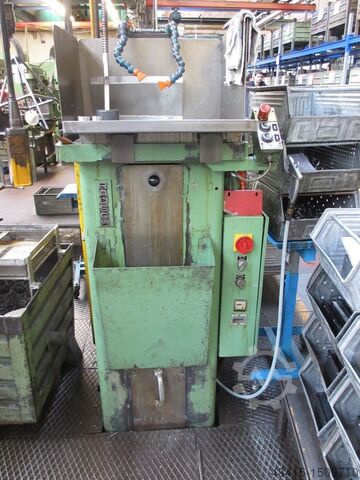

Broaching machine vertical – under power

Rausch RS 10/1500

Condition: ready for operation (used), Straight bevel gear generator SARATOV 5C276P Max Module 10 Max. gear wheel diameter 500 mm Kjdpfx Absuc T Hxj Iewt Max. gear wheels cone distance 250 mm Max. gear ring width 80 mm Min. angle of dividing cone (pitch), degrees 5 Number of wheel teeth: 10 - 150 Distance between spindle and machine center, mm - max. (stock angle 5 degrees) 375 mm; - min. (stock angle 90 degree) 75 mm Stroke 100 mm Slider double stroke 48 - 400 spm Motor capacity 4 KW Machine dimensions 2885 x 2570 x 1995 mm Machine weight 8750 kg

Condition: excellent (used), Broaching tool, broaching needle, special tool, grooving tool, keyseating machine, keyway broaching machine, keyway broaching machine, keyway broaching tool, broaching needle -Manufacturer: SWZ, broach push broach -Type: B 6 J9x1.8 RL 24-72mm -Item no.: 45 0014 -Width: 6mm Kwjdpfx Abjitt Rye Iot -Number: 2x broach available -Price per piece -Total dimensions: 900/6/H13 mm -Weight: 0.5 kg/pc.

Condition: used, Broaching tool, broaching needle, special tool, grooving tool, keyseating machine, keyway broaching machine, keyway broaching machine, keyway broaching tool, broaching needle -Manufacturer: Planeta Coswig, broach push broach Kedoitt Sajpfx Ab Iewt -Type: 16D11x2.7 34-120inSt 34-165inGG - Width: 16mm -Number: 1x available -Total dimensions: 1250/16/H30 mm -Weight: 4.2kg

Condition: used, power converter / rectifier. techn. details see photos. Kwodpod Ihayefx Ab Iet

Condition: used, Year of construction: 1997, max. wheel diameter 275 mm gear width 150 mm max. module 6 min. module 1,5 total power requirement 62 kW weight of the machine ca. 12 t dimensions of the machine ca. 4,7x4,4x2,45 m max. wheel diameter mm gear width mm max. module 6 min. module 1.5 max. workpiece diameter 275 mm tooth width max. 5.5 mm spiral angle 0 - 60 ° number of teeth 5 - 120 transmission ratio min. 1:1 transmission ratio max. 1:10 milling drive motor 20 kW workpiece drive 14.5 kW total power requirement 62 kVA weight of the machine ca. 12 t dimensions of the machine ca. 4,7 x 4,387 x 2,45 m Tool spindle (D-axis) - workpiece spindle speed (infinitely) 60 to 350 [...] Tool positioning axis (E-axis) - swivel range 0 to 360° - swivel speed max. 19.5°/s Workpiece spindle (B-axis) - mounting diameter outer cone (1: 4) 140 mm - standard internal cone (1:20) 99.218 mm - workpiece spindle speed max. 300 [...] - workpiece spindle passage 90 mm Workpiece positioning axis (Y-axis) - travel 870 mm - speed max. 4.5 m/min Roller rotation axis (A-axis) - swivel range 315° - swivel speed max. 40°/s Axis intersection (Z-axis) - travel range max. +/- 50 mm Kwedoul Etdepfx Ab Iot - speed max. 0.657 m/min Workpiece swivel axis (C-axis) - swivel range -8.5 to 98° - swivel speed max. 21.5 °/s Milling depth axis (X-axis) - travel from -25 to 640 mm - max. speed 6 m/min Machinen distance (V-axis) - travel 150 mm - speed max. 1.6 m/min
