Spotting Press

REIS TUS100 OK100

Year of construction: 1990, condition: ready for operation (used), A Reis spotting press for tool and mold making is available. Pressing force: 1000kN, clamping area: 1200mm/1500mm, installation height: 1575mm, max. mold weight: 10000kg, max. tilting plate load: 4000kg, ram stroke: 1450mm, return force: 400kN, hydraulic pressure: 190bar, pneumatic pressure: 5bar. Machine dimensions X/Y/Z: approx. 3200mm/4500mm/4100mm. Documentation available. On-site inspection possible. Kdjdpfx Adjxt Rl Io Isw

Condition: used, Year of construction: 1985, pressure 100 t distance between columns 1250 mm stroke 1035 mm table surface area 890 x 1280 mm distance table/ram, max. stroke up, adjustment up 1035 mm table height over floor 630 mm ram surface 1000 x 1200 mm side window 700 mm max. tool weight 7 t max. capacity of swivelling ram plate 3,5 t oil volume 180 l Kdjdpfx Aevuumcjd Isw power capacity 9,0 kW weight 11,0 t Dimensions (WxDxH) 2,1 x 3,8 x 3,9 m with swivelling ram, movable table, inclining table, ejector in table, hydraulic ram interlocking press can be inspected in running condition in our warehouse

Condition: excellent (used), Year of construction: 2001, pressure 100 t table length 2000 mm table width 1580 mm voltage 400 V max. table loading capacity 10.000 / 20.000 kg total power requirement 18 kW weight of the machine ca. 22 t dimensions of the machine ca. 5,65 x 2,95 x 5,85 m Kdjdpfx Aeucgqwsd Ijw Serial no: 03.246.00 max. Distance between columns (width) 1620 mm d upper table no swiveling 10t / swiveling 6t d lower table 22t

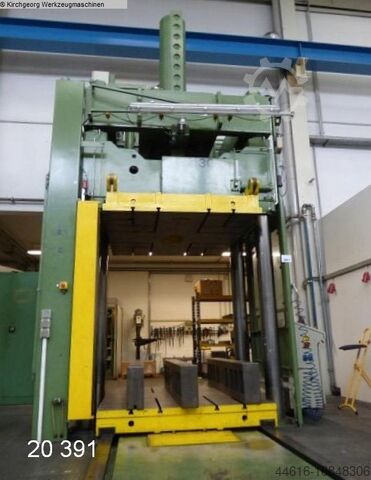

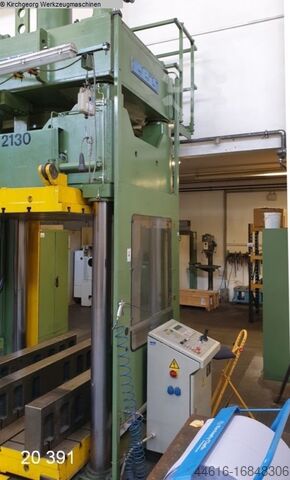

Condition: used, Year of construction: 1985, Make: Reis Type: TUS 160 OK 100 Year of manufacture: 1985 Control: Conventional Country of origin: Germany Delivery time: approx. 4 weeks Freight basis: ex stock Kodpfx Aogv Ikhjd Iedw Technical details Pressure 100 T column passage 1620 mm Table + ram 1800 x 1550 mm Open height 1800 mm Swivelling table load 6000 kg Table load top (without swivelling) 10.000 kg Table load bottom 20.000 kg Stroke 1500 mm Machine weight approx. (without operating materials) 22 T Dimensions L x W x H 5642x2940x5840 column diameter 180 mm Oil tank 400 L Additional information: Ejector in table

Condition: used, Year of construction: 1983, functionality: unexamined, machine/vehicle number: 02.056.00, overall weight: 11,000 kg, space requirement length: 2,420 mm, space requirement width: 2,040 mm, space requirement height: 3,220 mm, TECHNICAL DATA: - Pressing force (infinitely variable): 1000 kN - Max.ejector force: 30 kN - Retraction force: 300 kN - Pressing speed: 8 mm/sec. - Rapid traverse: 48 mm/sec. - Opening speed: 44 mm/sec. - Retraction speed: 23 mm/sec. - Press travel (stroke): 600 mm - Spray nozzle stroke: 70mm - Max.spray volume: 5 dm3 - Surface Ram top: 1000 x 1200 mm - Surface Ram below: 998 x 1280 mm - Distance between columns: 1130 mm - Plane parallelism between upper and lower plate: +/- 0.1 to 600mm lenght with uniform load distribution - Maximum mould weight: 7000 kg Ksdpfxoupy Abo Ad Iodw - Load capacity of swivel plate: 3500 kg - Power connected load: 30 kW - Motor power: 7.5 kW - Sprays pressure max-min.: 4 - 10 bar - Max.flow pressure: 190 bar - Return pressure: 190 bar - Air comsumption injection: 20 - 50 Ndm3 - Tank: 140 l
