GX-200 New Grain Press, REMET - 1 unit

REMET CNC

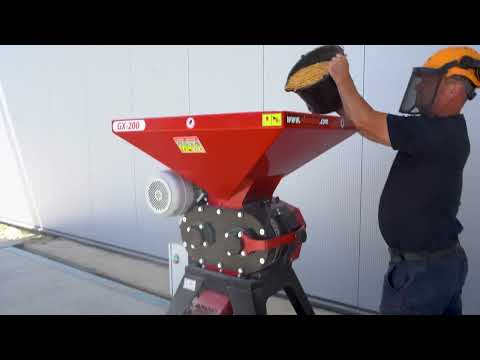

Grain Crusher GX-200 NEW (new model with increased performance)
The GX-200 NEW grain crusher is designed for crushing grains of all types, as well as legumes, for the production of animal feed. It is primarily used in small agricultural operations.
The crusher features a robust, stable frame that rests on adjustable rubber feet. The hopper, with a capacity of 110 liters, is equipped with an adjustable slide gate that feeds the grain into the crushing mechanism. The gap width between the rollers can be adjusted tool-free via an eccentric – in contrast to the previous version, which required tools. The design of the crusher is optimized for durability, efficiency, and ergonomics, and allows for quick adjustment of the roller gap in the range of 0 to 5 mm – depending on the type of grain.
The drive is provided by a 7.5 kW motor, which transmits power to both crushing rollers via three V-belts. Iron contaminants that may be present in the grain are filtered out by a special set of neodymium magnets. The machine is equipped with a folding bagging device and a pivoting discharge chute, which facilitate the collection of the crushed grain. Regular lubrication of the roller bearings, which are mounted in cast housings and installed in a welded machine body, ensures trouble-free operation.
Performance of the GX-200 NEW crusher:
Wheat: up to 1250 kg/h
Barley: up to 800 kg/h
Corn: up to 1000 kg/h
Technical specifications
Weight: 250 kg
Induction motor: 7.5 kW / 400 V CEE / 50 Hz
Lajdpfx As Ab Srcehaoh
Dimensions of the hopper top: 790 x 865 mm
Dimensions of the filling gap: 260 x 40 mm
Number of crushing rollers: 2 pcs
Width of the crushing rollers: 270 mm
Diameter of the crushing rollers: 240 mm
Height: 1520 mm
Width: 800 mm
Length: 1200 mm

The listing was translated automatically. Translation errors are possible.
