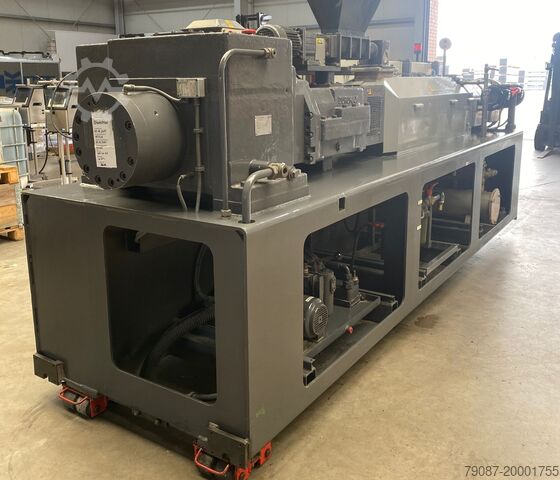

EXTRUDER ROLLEPAAL T-REX 90-30

ROLLEPAAL T-REX 90-30

Condition: good (used), WEBER tube extrusion line including: Hjdpovryhyjfx Ahujng WEBER DS 8.5 Elmepla saw Battenfeld R200/6 Battenfeld V125

Condition: excellent (used), Year of construction: 2014, operating hours: 19,000 h, functionality: fully functional, Gabler M92L thermoforming machine, in excellent running condition. Hnodpfswcdvnjx Ahujg

Condition: excellent (used), Year of construction: 1999, functionality: fully functional, Make Illig Model RV 74 Year 1999 Hours Approx TBC Delivery Date Immediately Stations Forming, Cutting and Stacking Maximum Forming Area 700 x 500 mm Hodpfxsxp H Nue Ahueng Minimum Forming Area 400 x 250 mm Depth of Draw Above-Below 120 / 40 mm Maximum Material Thickness 2.0 mm Maximum Cycle Rate 20 / min Total Weight 6,600 kg All details are subject to change and/or errors. All equipment is subject to availability and/or prior sale.

Condition: ready for operation (used), Year of construction: 2001, Ø 710-1000mm range PVC pipe production line. Hsdpfx Ahovzqy Ssuong

Condition: excellent (used), Year of construction: 2006, Manufacturer Gabler Model M92 L Year 2006 Condition Very Good Stock Number 00006 Max forming area 750 x 436 mm Depth of draw 150 mm Max material width 835 mm Max cycles / min 44 Max mould closing force 350 kN Max top heater output 81.90 kW Max bottom heater output 54.60 kW Operating air pressure 8 bar Power Supply 230V 50Hz Total Connected Load 138.66 kW Approx Dimensions 7,925 x 5,320 x 3900mm (LxWxH) Approx Weight 10,400 kg Notes All details are subject to change and/or errors. All equipment is subject to availability and/or prior sale. Hnodsw Rpzqopfx Ahueg

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, Manufacturer Kiefel Model KMD 60B Year 2012 Condition Used Stock Number 00034 Approx hours 26000 Delivery date Immediately Stations Three Max tool dimensions TBC Maximum Mould Surface 580 x 440 mm Minimum Mould Surface 260 x 250 mm Hnjdpfx Ahex Ekcaouog Depth of draw 120 mm +/- Max film width 630 mm Max dry cycles / min 70 Operating pressure 6 bar Approx Dimensions TBC Approx Weight 10,000 kg Notes All details are subject to change and/or errors.All equipment is subject to availability and/or prior sale.

Condition: new, Year of construction: 2016, operating hours: 9 h, functionality: fully functional, BMCtouch Integrated Automation System The control system, constructed in modular design, includes the following components: - PLC in industrial-standard design for machine control - Industrial PC for visualization and data management - Swivel-type operating and display panel with 19" TFT touch screen Performance Features: - User interface and functionality as per previous BMCtouch systems - Temperature control with self-tuning function - Pre-heating and start-up program - Prepared for data transfer to haul-offs with BMCsmart control systems - Operation of haul-off and saw from extruder terminal - CANopen Interface DS420 V2.0 - Flexible process display with individually configurable summary pages and customizable background - Configurable alarm management and alarm history - Trend data acquisition and presentation - Order management/administration - Configurable access authorization - Online assistance - Suitable for independent multi-user operation - Additional memory for history trends - Network capability - Modem Integration of Central Air Supply Co-extruder, BCE 1-30-25D - Stand-alone machine - Synchronization with main extruder via CANopen, DSP 420 V2.0 - AC drive incl. gearbox - Nitrided screws - BMCeco operator terminal - Product of battenfeld-cincinnati China branch Extruder, solEX 75-40 i Designed for pipe extrusion Technical Data: - Screw diameter: 75 mm - Effective screw length: 40xD - Drive power: 300 kW - Barrel heating zones: 5 pcs. - Barrel cooling zones: 5 pcs. - Total installed power, max.: 347.37 kVA Die heating zone incl. thermocouple (6 kW, 230 V) (BMCtouch control) Extrusion Die, helix 500 VSI-TZ Designed for the extrusion of PO pipes - Two-step distributor consisting of smoothing thread and compact lattice basket - Base die and die set made of tempered steel - Material flow surfaces are polished - Pipe O.D.: 90 - 500 mm - Number of heating zones: 17 Co-extrusion ring for 4 color stripes Calibrating sleeve, type 6 For PO pipes vacStream 500-6 No. 1 Hnjdpsx Sbc Refx Ahueg Designed for calibrating and cooling of pipes - Closed stainless steel tank with welded feet - Tank on rollers with height and lateral adjustment - Rust-proof hinged lids - Central water inlet and outlet - Pipework made from rust-proof materials - Manual reversible flow filter unit with bypass - Mechanical vacuum control - Temperature display Technical Data: - Pipe diameter range: 90 - 500 mm - Number of solid taper nozzles: 162 pcs. - Number of spray rods: 6 pcs. - Max. vacuum: 0.7 bar - Length of vacuum chamber: 5500 mm - Total length: 5900 mm vacStream 500-6 No. 2 Designed for calibrating and cooling of pipes coolStream 500-6 4 For pipe cooling - Closed stainless steel tank - Base frame with height-adjustable feet - Rust-proof, hinged lid - Central water inlet and outlet - Pipework made from rust-proof materials - Manual reversible flow filter unit with bypass - Temperature display - Spray rods made of PVC - Solid taper nozzles with bayonet lock - Visual monitoring of pumps - Drip trays at inlet and outlet - Water circulation pump pullStream R_ 500-6 E Designed for pipe haul-off cutStream RTAplus 500 For chipless cutting of PO pipes
