Press brake

SafanDarley E-Brake 100-3100 NS

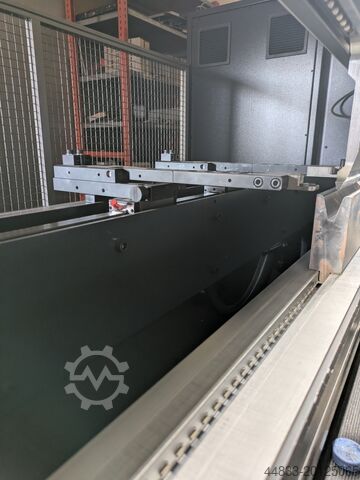

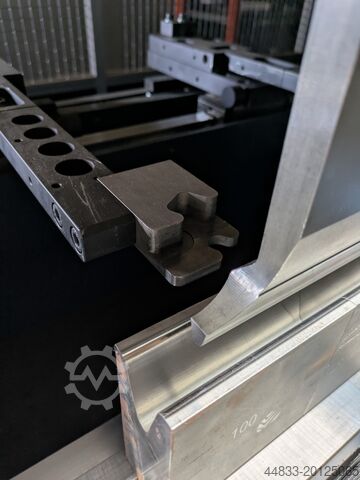

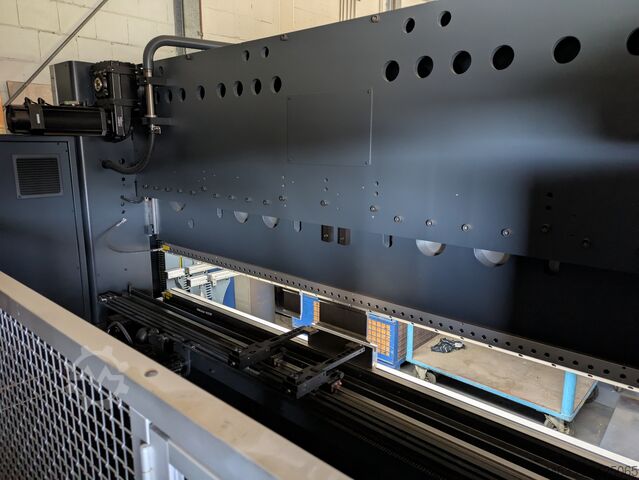

Condition: excellent (used), functionality: fully functional, Year of construction: 2021, working width: 3,060 mm, distance between stands: 3,060 mm, total width: 3,100 mm, pressing force: 100 t, Servo-electric press brake SAFANDARLEY type E-Brake 100-3100 NS Available with WILA or AMADA tooling system Manufacturer Netherlands - Lochem We are the official representative of SafanDarley in Poland. - Servo-electric drive Gsdpjv Edu Defx Ah Ioca - 100 T pressure - 3060 mm bending length - 300 mm stroke - CNC control in Y1 / Y2 / X / R / Z1 / Z2 axes - rear stop controlled in 4 CNC axes - X / R / Z1 / Z2 - 2D graphic control - EC20 model - light curtain - programmable - WILA tooling system - upper clamp or AMADA - (to choose) - WILA tooling system - lower clamp possible 4V / 2V / 1V / T-type matrices with a base of 60 mm - lower table compensation

Year of construction: 2012, condition: ready for operation (used), Pressing force: 1700kN, bending length: 3230mm, ram stroke: 445mm, installation height: 615mm, distance between uprights: 2690mm, throat depth: 420mm, closing speed: 220mm/s, operating pressure: 300bar. Machine dimensions X/Y/Z: approx. 5250mm/2000mm/3000mm, weight: approx. 16000kg, operating hours: approx. 19133h. Documentation available. An on-site inspection is possible. Gcjdpfxoxbhg Sj Ah Ija

Condition: excellent (used), functionality: fully functional, I am selling this lathe, connected, can be tested. Machine accessories. Can send a video of the machine via whatsapp. Swing diameter over the bed ..... 1050 mm Gcjdpfx Ahjv Nw A Ns Ija Distance between centers ..... 6000 mm Swing diameter over the slide ..... 940 mm

Condition: excellent (used), Year of construction: 2000, The machine is in very good condition 1500x600 Gcedpjxl Ay Ijfx Ah Ija

Condition: excellent (used), functionality: fully functional, Year of construction: 2019, operating hours: 634 h, control type: CNC control, controller model: CN DELEM T3500T, bending force (max.): 100 t, working width: 3,060 mm, stroke length: 350 mm, distance between stands: 3,384 mm, installation height: 500 mm, type of crowning: CNC-controlled, TRUMPF TRUBEND 3100 Press Brake (X) Version with Increased Clearance to 500 mm Only 634 hours powered on! Protective laser CNC crowning table DELEM T3500T CNC control CNC axes: Y1/Y2/X/X2/R/Z1/Z2 Year: 2019 Currently tooled for a bending length of 2550 mm 1 die (V6 mm) with a length of 2550 mm included as additional equipment. MACHINE NOT ANCHORED TO FLOOR Specifications Bending length: 3060 mm Capacity: 100 tons Frame gap: 3384 mm Gcjdpox E Ag Djfx Ah Isa Ram stroke: 350 mm Motorized backgauge travel: 560 mm Distance table-to-ram: 500 mm Main drive power: 24 KVA Weight: 8,300 kg Machine dimensions (L x W x H): 3,607 x 1,644 x 2,800 mm

Condition: like new (used), Year of construction: 2024, functionality: fully functional, grinding length: 1,650 mm, grinding diameter: 400 mm, We offer a new BUB40 x 1500 NC machine equipped with a MITSHUBISHI NC controller. The machine is still under lease with ING Lease. It has been thoroughly refurbished based on the TOS HOSTIVAR BUB 40 model by FAS GŁOWNO. Technical data: • Maximum workpiece diameter: 400mm • Maximum workpiece length: 1500mm • Centre height: 200mm • Distance between centres: 1500mm • Minimum grindable workpiece diameter with a 380 mm grinding wheel: 20mm • Tailstock quill stroke: 40mm • Maximum tailstock clamping force: 4000N • Spindle headstock centre taper: ISO 296-1991/Morse 5 • Tailstock centre taper: ISO 296-1991/Morse 5 • Maximum workpiece weight between centres: 500kg • Maximum workpiece weight in chuck (including chuck): 100kg • Machine width (with enclosure): 6650mm • Machine depth (with enclosure, without control panel): 2400mm • Machine height (with enclosure): 1850mm • Machine weight: 7000kg • Total power requirement: 38kVA Grinding spindle: • Standard grinding wheel dimensions: 500 x 80 x 203.2mm • Grinding spindle drive motor power: 11kW • Grinding spindle rated speeds (for 430 mm / for >430 mm and 500 mm wheels): 2000 / 1744 rpm • Grinding headstock traverse servo motor power: 2kW • Grinding headstock traverse servo motor torque: 9.5Nm • Maximum continuous X-axis traverse speed: 2m/min • Minimum X-axis grinding wheel increment: 0.001mm • Maximum continuous X-axis traverse speed: 6m/min • Minimum X-axis grinding wheel increment: 0.001mm • Maximum grinding wheel increment in INC mode: 0.1 mm Godswzkywspfx Ah Ijca • Table traverse servo motor power: 3.5 kW • Table traverse servo motor torque: 16.7 Nm Workpiece spindle: • Workpiece spindle speed range: 1 – 150 rpm • Workpiece spindle servo motor power: 3.5kW • Workpiece spindle servo motor torque: 16.7Nm More information available upon request via email or phone.

Condition: excellent (used), functionality: fully functional, Year of construction: 2011, Description Trumpf TRUBEND 5085 - WORKING INSIDE PRODUCTION DAILY ORDERS WORKING HORS: PRESENT ON PHOTO OF SCREEN Gjdpfxjvlayvj Ah Ioca Year 2011 Compression force: 85 tonnes Table length: 2,200 mm Free travel speed: 220 mm/s Accessories: Increased lift height from 230 mm to 615 mm. 5-axis bending. Hydraulic tool clamping at the bottom. Hydraulic tool clamping at top. Automatic bombing. Bendguard guard ACB angle measurement FOR CLIENT WE ORGANIZE AS WELL DISMANTLING AND TRANSPORT Specifications Manufacturer TRUMPF Model TRUBEND 5085 Year 2011 Condition Used (EXCELLENT)
