CNC Bending Machine

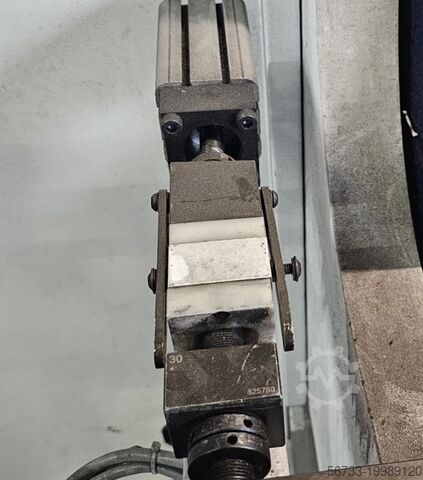

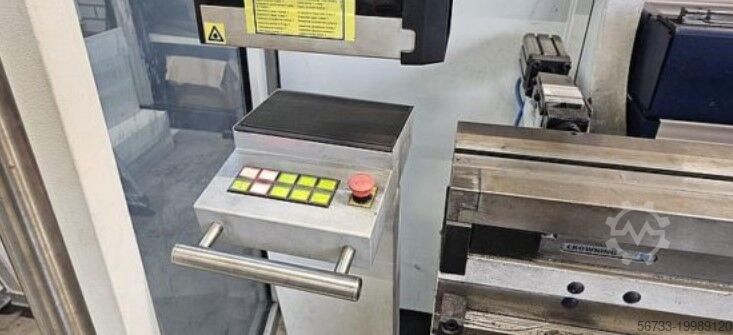

Trumpf TruBend 5170

Condition: used, functionality: fully functional, Year of construction: 2007, working width: 4,250 mm, type of crowning: CNC-controlled, overall weight: 16,000 kg, total length: 6,000 mm, total width: 1,700 mm, total height: 3,000 mm, - Press beam operating hours: 9,874 h Rsdpexcxy Sjfx Agieck - Stroke: 600 mm - Force: 1,700 kN - Working length: 4,250 mm - 5-axis backgauge - CNC crowning - Hydraulic tool clamping (top/bottom) - Die adjustment for hemming - CNC-controlled bending aid - Bendguard safety device - ACB angle measuring sensor

Condition: used, Machine very good condition. Rcedpskq S D Uofx Agiok Max diameter 1250 mm Max length 10000 mm Best regards Jozef DOMINIK

Condition: excellent (used), functionality: fully functional, Year of construction: 2005, operating hours: 17,400 h, control type: CNC control, actuation type: hydraulic, controller manufacturer: TRUMPF, controller model: TASC 6000, bending force (max.): 230 t, working width: 3,230 mm, stroke length: 445 mm, throat depth: 420 mm, distance between stands: 2,690 mm, installation height: 615 mm, operating speed: 10 mm/s, number of axes: 6, type of crowning: CNC-controlled, oil tank capacity: 330 l, travel distance X-axis: 600 mm, back gauge adjustment: CNC-controlled, back gauge: 860 mm, overall weight: 16,000 kg, total length: 4,270 mm, total width: 2,120 mm, total height: 3,200 mm, number of support arms: 2, Equipment: CE marking, angle measuring system, documentation/manual, emergency stop, finger protection, foot remote control, safety light barrier, + 2 quick-adjustable support consoles on linear guides + 6-axis backgauge system (X1, X2, R1, R2, Z1, Z2) with control cabinet air conditioning + Hydraulic and hardened upper tool clamping + CNC-controlled crowning + Preparation for ACB + BendGuard safety device for 200 mm/s Standard equipment: - Four-cylinder upper drive concept - Electrohydraulic ram drive with proportional valve technology - Ram travel measurement system - Modern block hydraulics - Electronic pressure scale Redpfsx Elxvjx Agiock - Spherical suspension and inclination of the pressure beam - CNC backgauge system - Safe forward finger adjustment - 2 stop fingers - Self-centering, manual, hardened upper tool holder for vertical tool change - Hardened, hydraulic lower tool holder - Flat front cover - Modern safety guard - CE mark - Oil cooler - Control cabinet cooling (air-air) - Operating manual

Condition: excellent (used), functionality: fully functional, Year of construction: 2019, operating hours: 634 h, control type: CNC control, controller model: CN DELEM T3500T, bending force (max.): 100 t, working width: 3,060 mm, stroke length: 350 mm, distance between stands: 3,384 mm, installation height: 500 mm, type of crowning: CNC-controlled, TRUMPF TRUBEND 3100 Press Brake (X) Version with Increased Clearance to 500 mm Only 634 hours powered on! Protective laser CNC crowning table DELEM T3500T CNC control CNC axes: Y1/Y2/X/X2/R/Z1/Z2 Year: 2019 Currently tooled for a bending length of 2550 mm 1 die (V6 mm) with a length of 2550 mm included as additional equipment. MACHINE NOT ANCHORED TO FLOOR Specifications Bending length: 3060 mm Capacity: 100 tons Frame gap: 3384 mm Ram stroke: 350 mm Motorized backgauge travel: 560 mm Distance table-to-ram: 500 mm Main drive power: 24 KVA Rcsdpfxjx E Ag Dj Agisk Weight: 8,300 kg Machine dimensions (L x W x H): 3,607 x 1,644 x 2,800 mm

Condition: excellent (used), functionality: fully functional, I am selling this lathe, connected, can be tested. Machine accessories. Can send a video of the machine via whatsapp. Swing diameter over the bed ..... 1050 mm Rcjdpsv Nw A Nofx Agiok Distance between centers ..... 6000 mm Swing diameter over the slide ..... 940 mm

Condition: ready for operation (used), Year of construction: 2010, operating hours: 35,767 h, Main Drive Pressing force 2300 Kn Number of axis 8 Bending length 4250 mm This 9-axis TRUMPF TruBend 5230 press brake was manufactured in 2010. It features a pressing force of 230T, a bending length of 4m, and a stroke of 445mm. Equipped with a 6-steered backgauge axles and includes an angle measuring system and tools. Consider the opportunity to buy this TRUMPF TruBend 5230 press brake. Contact us for more information. Application Types Bending Rcodsx D Dqfepfx Agiek

Condition: excellent (used), Year of construction: 2000, The machine is in very good condition 1500x600 Rodpfx Agjxl Ay Ijiock

Condition: like new (used), Year of construction: 2024, functionality: fully functional, grinding length: 1,650 mm, grinding diameter: 400 mm, We offer a new BUB40 x 1500 NC machine equipped with a MITSHUBISHI NC controller. The machine is still under lease with ING Lease. It has been thoroughly refurbished based on the TOS HOSTIVAR BUB 40 model by FAS GŁOWNO. Technical data: • Maximum workpiece diameter: 400mm • Maximum workpiece length: 1500mm • Centre height: 200mm • Distance between centres: 1500mm • Minimum grindable workpiece diameter with a 380 mm grinding wheel: 20mm • Tailstock quill stroke: 40mm • Maximum tailstock clamping force: 4000N • Spindle headstock centre taper: ISO 296-1991/Morse 5 • Tailstock centre taper: ISO 296-1991/Morse 5 • Maximum workpiece weight between centres: 500kg • Maximum workpiece weight in chuck (including chuck): 100kg • Machine width (with enclosure): 6650mm • Machine depth (with enclosure, without control panel): 2400mm • Machine height (with enclosure): 1850mm • Machine weight: 7000kg • Total power requirement: 38kVA Grinding spindle: • Standard grinding wheel dimensions: 500 x 80 x 203.2mm Rcjdpfx Aswzkywegijk • Grinding spindle drive motor power: 11kW • Grinding spindle rated speeds (for 430 mm / for >430 mm and 500 mm wheels): 2000 / 1744 rpm • Grinding headstock traverse servo motor power: 2kW • Grinding headstock traverse servo motor torque: 9.5Nm • Maximum continuous X-axis traverse speed: 2m/min • Minimum X-axis grinding wheel increment: 0.001mm • Maximum continuous X-axis traverse speed: 6m/min • Minimum X-axis grinding wheel increment: 0.001mm • Maximum grinding wheel increment in INC mode: 0.1 mm • Table traverse servo motor power: 3.5 kW • Table traverse servo motor torque: 16.7 Nm Workpiece spindle: • Workpiece spindle speed range: 1 – 150 rpm • Workpiece spindle servo motor power: 3.5kW • Workpiece spindle servo motor torque: 16.7Nm More information available upon request via email or phone.

Condition: excellent (used), functionality: fully functional, Year of construction: 2011, Description Trumpf TRUBEND 5085 - WORKING INSIDE PRODUCTION DAILY ORDERS WORKING HORS: PRESENT ON PHOTO OF SCREEN Rcsdsvlayvspfx Agijk Year 2011 Compression force: 85 tonnes Table length: 2,200 mm Free travel speed: 220 mm/s Accessories: Increased lift height from 230 mm to 615 mm. 5-axis bending. Hydraulic tool clamping at the bottom. Hydraulic tool clamping at top. Automatic bombing. Bendguard guard ACB angle measurement FOR CLIENT WE ORGANIZE AS WELL DISMANTLING AND TRANSPORT Specifications Manufacturer TRUMPF Model TRUBEND 5085 Year 2011 Condition Used (EXCELLENT)
