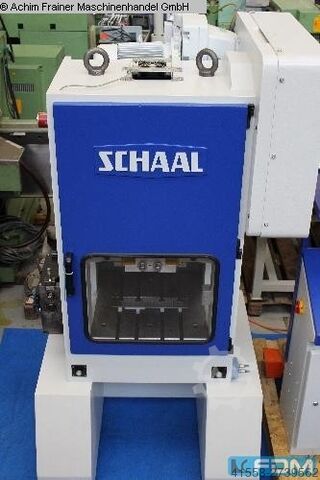

Automatic Punching Press

SCHAAL SEP 40

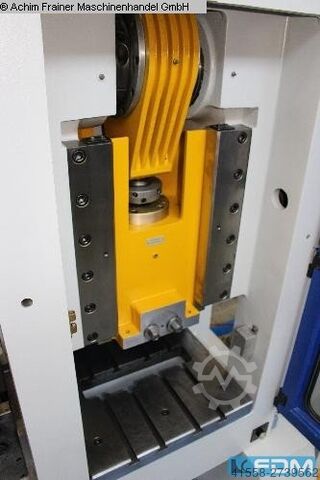

Condition: refurbished (used), Year of construction: 1984, functionality: limited functionality, pressing force: 40 t, year of last overhaul: 2024, punching force: 40 t, SCHAAL Punching Press Type SEP40 Machine number 84/623 Year of manufacture: 1984 Condition: very good, mechanically overhauled, without press control; A new control unit is available on request Press force: 40 tons Sheet width: 150 mm Stroke: Fixed stroke 50 mm. (Original 8 - 70 mm) Number of strokes – infinitely variable: 100 – 250 spm (possible up to 400 spm, but with the current stroke of 50 mm the maximum is 250 spm) Ram surface: 340 x 320 mm Tool holder bore: Ø 40 x 80 mm Ram adjustment: 70 mm Table size: 550 x 580 mm (not included in the scope of delivery, available upon customer request) Clear opening in table: 400 x 90 mm Lateral frame opening: 250 mm Distance between uprights: 560 mm Drive power: 5.5 kW Dimensions (H x W x L): 2300 x 1600 x 1400 mm Weight: approx. 3,800 kg Feed: Type: SZV 2 Number: EP4340 Year: 1999 Strip width: 8 - 120 mm Feed length: 2 – 80 mm Feed thickness: 0.1 – 2 mm Feed accuracy: ±0.01 mm Equipped with Unidor press force measuring system, calibrated on 29-2-2024 Press and roll feed have been mechanically overhauled at the beginning of 2024. Renewed: eccentric shaft, main bearings, flywheel bearings, connecting rod bearings, ram roller bearings, drive belt for roll feed, pressure regulator, rotary union seals, access doors, and polycarbonate panels. Bsdpfexwk Tgox Ad Aswl The machine can be inspected in operation.

Condition: used, Year of construction: 1987, pressure 40 t Bwjdpevu E Iwefx Ad Ajl no. of strokes 500 Hub/min total power requirement 5,5 kW
