Panel saw

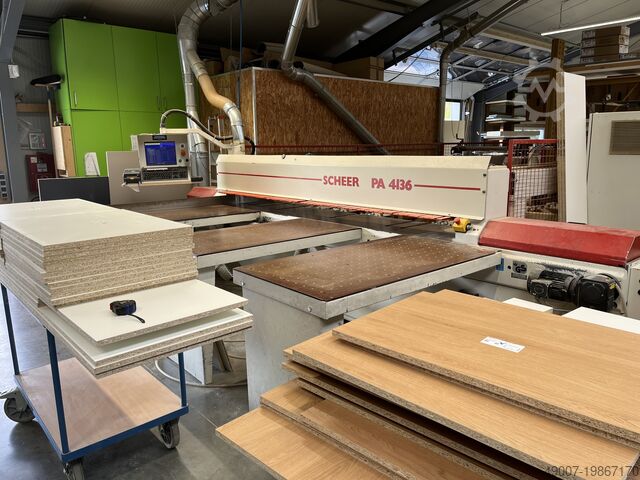

Scheer PA 4136

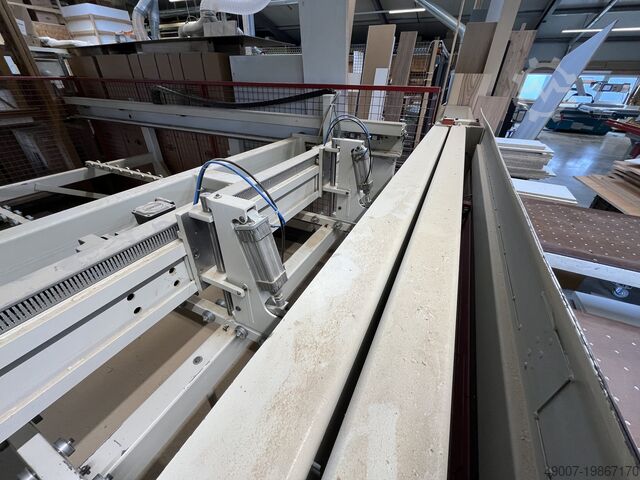

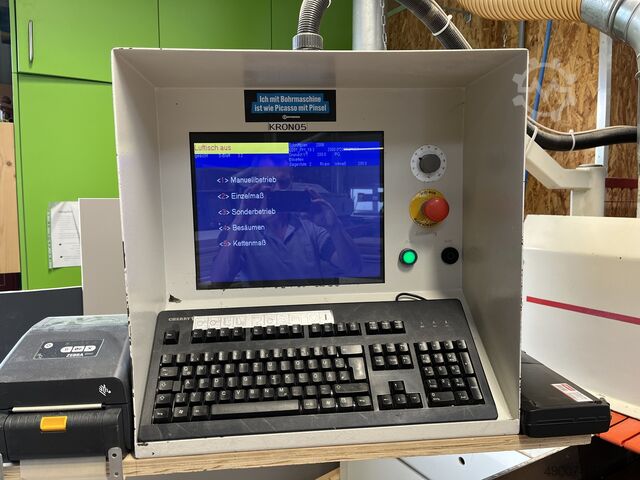

Condition: like new (used), functionality: fully functional, cutting length (max.): 3,100 mm, cutting height with scoring (max.): 70 mm, saw blade diameter: 305 mm, feed rate X-axis: 40 m/min, feed rate Z-axis: 50 m/min, total length: 3,100 mm, total width: 3,100 mm, overall weight: 3,000 kg, power: 7 kW (9.52 HP), space requirement length: 3,100 mm, space requirement width: 3,100 mm, Equipment: rotational speed infinitely variable, scorer, Panel Sizing System SCHEER PA 4136 – 3100 x 3100 The PA 4136 is a high-performance, electronically controlled panel saw designed for precise, efficient, and automated cutting of wood-based materials. Ideally suited for industrial applications in joineries, furniture production, and panel processing. Condition & Service: Condition: Very good Functionality: Fully operational Warranty: 12 months CE-compliant and dust-tested (limit value < 2 mg/m³) Key Technical Data & Equipment: - Rip saw FM 20-3100 with hardened guides - Automatic forward & return travel of the saw unit (automatic lowering during return) - Feed drive via three-phase gear motor, frequency inverter controlled - Feed speed: 2 – 40 m/min (stepless) - Return speed (rapid traverse): 50 m/min - Extraction channels in machine base & pressure beam - Score saw blade adjustable externally (without opening the hood) - Safety hood locking with lamella curtain SZ 5008 - 3-step cutting height adjustment LA 4143 - 6 cut-out sections in the pressure beam for residual cuts down to 5 mm - Saw motor: 7.0 kW | Scoring motor: 1.1 kW (switchable) - Cutting length: 3100 mm | Cutting height: 70 mm Material Handling & Feed: Chsdpowrn Efsfx Abwec - Angle pressure device WP 5003 with clamping claw for cross cuts - Adjustment range: 2400 mm - Fully automatic control via DNC-AT - Material feed table HP 5091 - 2 upper guides, rack-and-pinion guidance - Servo drive for material pusher - Feed speed: 25 m/min (safety limited) - Return: 40 m/min - 6 clamping fingers, 4 double roller tracks - Table length: 3100 mm | Fence depth: 3150 mm - Closed Pertinax surface in the area of the angle fence Control & Operation: - Operating system: Ubuntu Linux - Integrated PC with hard disk, parallel & serial interfaces - Network capable (LAN/WLAN), remote maintenance via internet (TeamViewer, Remote Desktop) - USB printing function - Multilingual dialog programming - 15" flat screen, multifunction keyboard on a swiveling control console - Graphic display of cutting plans and processes Software / Programs: - OPTIMAX: Office optimization, waste calculation, material requirements - OPTIMIN: Direct optimization at the machine PC with parts list entry - Processing via USB, diskette or online (optional) - Manual, automatic & special operation modes (e.g. grooving, veneered parts) Additional Equipment: - Angle fence table HP 5085: 1,720 x 800 mm | Pertinax overlay - Workpiece support table HP 5025: 1,720 x 800 mm | Pertinax overlay - Air cushion system LK 5030 integrated in both tables - Circular saw blade KSB 4005: Ø 305 mm, Z = 60 - Circular saw blade KSB 4006: Ø 200 mm, Z = 60, tapered Reliability in Continuous Operation: This machine is in use worldwide – under extreme conditions. Whether in the dry climate of Africa or in high humidity regions of Southeast Asia (e.g. Thailand): The PA 4136 runs reliably in 3-shift operations – 365 days a year – and stands out for its outstanding stability and durability. Warranty: We are so convinced of the quality and stability of our machines that we offer a 7-year warranty on the machine frame and guideways. (Excludes electronic supply parts and wear parts.) 📞 Contact us for an individual offer or to arrange a viewing appointment. Machine available from stock. Delivery, commissioning, and training available upon request.
