Mesh welder

Schlatter MG900

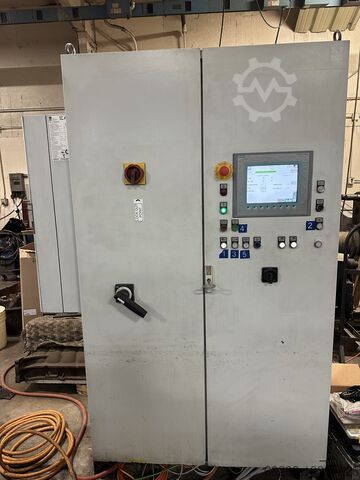

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, working width: 1,240 mm, wire diameter (max.): 12 mm, type of input current: AC, Machine Overview: Schlatter MG900 MG12 Mesh Welding Machine - "Offical Expose upon request" The Schlatter MG900 is a powerful and refurbished resistance welding machine, specifically designed for the production of wire mesh panels. With a width capacity of up to 1250 mm and a length of 3000 mm, it handles wire diameters of up to 12 mm. This machine has undergone extensive modernization to deliver maximum efficiency and flexibility in production. Main Components • LV - Longitudinal Wire Feeder o Upgraded with a high-precision servo axis o Hopper magazines for longitudinal wires up to 3000 mm • MG12.4 - Mesh Welding Unit o Equipped with 3 to 6 transformers. o Up to 12 Schlatter welding presses with a capacity of 5 kN •QFD34 - Cross Wire Feeder o Allows for double cross wire insertion for two different cross wire diameters / length, *Note: The second level is not yet installed in the photos • MVL - Mesh Extraction Unit o Controlled by a new MS2N Servo Motor from Bosch Rexroth CrtlX o Equipped with four Schlatter mesh grippers (expandable upon request) • MS - Mesh Stacker o Automatically stacks mesh panels with a travel path of up to 3100 mm • Control and Power Cabinet Nwjdjvtg Sbjpfx Afcoc o Siemens S7 TIA Control System o Rexroth CrtlX Components for high-dynamic motion control Specs: • Mesh Width (Transverse Wire Length) max. 1250mm / min. 200mm • Mesh Length (Manual Loading) max. 3200mm / min. 300mm • Distance Between Outer Longitudinal Wires max.1200mm • Longitudinal Wire Spacing 20 - 150mm • Cross Wire Spacing min. 12.5mm • Longitudinal Wire Diameter 2.0 - 10.0mm • Transverse Wire Diameter 2.0 - 8.0mm • Maximum Number of Longitudinal Wires max.24

Condition: good (used), Year of construction: 2003, travel distance X-axis: 13,000 mm, travel distance Y-axis: 4,500 mm, travel distance Z-axis: 1,000 mm, spindle speed (max.): 30,000 rpm, distance between stands: 6,500 mm, spindle nose: HSK A63, X-axis: 13.000 mm Y-axis: 4.500 mm Z-axis: 1.000 mm Distance between columns: 6.500 mm C-axis: 190º A-axis: 110º Nwedpfx Aott I Sfsfcsc Positioning speed XYZ: 15.000 mm/min. Positioning speed AC: 10 tpm CNC Controller: Siemens 840D Spindle nose: HSK A63 Spindle speed: 30.000 rpm Spindle power: 20 kW Toolchanger: 20 Pockets Torrestool tables: 16x X-axis: 11.500 mm Y-axis: 3.500 mm Z-axis: 750 mm Country of origin: Spain Machine size LxWxH: 19.000 x 11.000 x 6770 mm Machine weight: 70.000 kg The Torresmill Gantry is a 5-axis CNC milling and drilling machine, specially designed to work on aeronautical materials (Composite, Aluminum, Titanium, Steel, ...). The Torresmill gantry is perfectly combined with the Torrestool universal clamping device, guaranteeing flexibility and process time.

Condition: excellent (used), Year of construction: 2017, operating hours: 3,200 h, pressing force: 130 t, Space requirement: 11,500 mm x 10,000 mm Nedpexayl Dsfx Afcjwc + Increased installation height/lift + 230 mm + 4-axis backgauge system + Rear work area lighting + Front work area lighting - TruBend documentation Automation BendMaster (60) Standard equipment: BendMaster - Sturdy base frame and manipulator made of cast aluminum construction - Load capacity 60 kg, sheet plus gripper - Low-level floor track in welded construction - Sheet sensor for contour detection - Rotary feedthrough for quick gripper change Gripper coupling on the BendMaster - Sensor system for 4-axis backgauge system - Electric drives - Double sheet detection - NC regrip station - Vacuum generation for suction grippers Control - TRUMPF PC control with operator terminal - Teleservice via internet - Convenient operation: screen, mouse, keyboard Safety - Safety fence with access door Special equipment + Track extension to 10 m + Gripper change console + Modular vacuum gripper without separation (materials for 3 grippers) + Modular vacuum gripper with separation (materials for 3 grippers) + Clamp gripper with rotary axis + Sheet removal station with linear axis + Additional pallet for sheet removal station + Right-hand side door for safety fence (or left-hand side in combination with ToolMaster) Machine - Robust machine frame entirely in steel construction - Press beam - Spherical mounting of pressure beam with inclined position - Electro-hydraulic upper drive system with 4-cylinder technology - Optical set-up and positioning assist with control valves - Generous free space for bending - Flat front covers - Block hydraulic system - Electronic pressure gauge - Measuring system with glass scale and spring-back compensation - Hydraulic oil in machine (lifetime lubrication) - Oil cooler - Electrical cabinet cooling via air-to-air heat exchanger - Modern machine design Backgauge System - 2-axis backgauge system, X and R axes Tool Clamping - Hydraulic upper tool clamping - Lower tool holder, hydraulic clamping, hardened - Lower tool displacement, 2 positions, pneumatic Crowning - CNC crowning Control - TRUMPF TASC 6000 - Graphical workshop programming - Windows XPe (embedded), Pentium 4 with 2.8 GHz clock speed - 2 GB RAM - 15-inch touch screen - Network capability - Teleservice via internet Operation - Control panel with LCD keypad and foot switch - Communication rail - MobilControl Safety - Standard safety equipment - CE marking

Condition: ready for operation (used), Year of construction: 2008, operating hours: 56,089 h, Swing diameter over bed/cross slide: 820mm/550mm, distance between centers: 2666mm, max. turning diameter: 610mm, max. workpiece length: 2500mm, travel X/Z: 410mm/2560mm, travel Y: -80mm/100mm, max. workpiece weight without/with tailstock: 500kg/1500kg, tool positions: 12, rapid traverse X/Z/Y: 24m/30m/12m/min, feed force X/Z/Y: 17kN/20kN/17kN. Machine dimensions X/Y/Z: approx. 5500mm/2250mm/2550mm, weight: approx. 15000kg, operating hours: approx. 56089. Documentation available. An on-site inspection is possible. Expected to be available from mid-2026. Nwjdpfx Afew Dfhuocec

Condition: refurbished (used), Year of construction: 2009, functionality: fully functional, machine/vehicle number: 30214501, turning length: 2,000 mm, total length: 12,000 mm, WFL Millturn M60/2000 WORKING RANGE center distance mm 2000 swing over bed, turning diameter mm 690 MAIN DRIVE AC-drive with 2 gear steps drive power 100% duty cycle kW 40 max. speed min-1 3300 max. torque at the spindle 100% duty cycle Nm 1830 TAILSTOCK quill diameter mm 140 quill travel mm 160 quill force (adjustable) N 3500-31000 quill with installed live center MK 5 Nodsu Hl R Tjpfx Afcswc TOOL HOLDER (single tool holder, turning-boring-milling unit) AC-drive drive power 100% duty cycle kW 30 speed range max. min-1 6000 max. torque at the spindle 100% duty cycle Nm 315 travel vertical to the X/Z-plane (Y-axis) mm 300[-125/+175] pivot capability of the milling spindle (B-axis) ° -110/+90 spindle head acc. DIN 69893 HSK-A100 spindle diameter in front bearing mm 100 DIMENSIONS length (max. tool magazine) m 11 width/height m 3,9/3,3

Condition: good (used), Year of construction: 2022, UK DELIVERY ONLY Developed for the shop-floor, the TIGO SF is a fully-protected and versatile coordinate measuring machine (CMM) that combines robust construction, innovative technology and flexibility of setup to ensure high-accuracy measurement in the harshest of environments. Nwsdju Spvqepfx Afcec Tigo SF 5.6.5 HH-A-T5, 5° Automatic Indexing Head HP-S-X1S Analogue Scanning Probe Standard Styli Kit PC-DMIS Measurement Software Year of Manufacture 2022 Please contact us for alternative configurations. Measuring Range: X 500mm, Y 580mm, Z 500mm MPE(E0/E60) (18 °C - 22 °C) 2.2 + L/300 See Datasheet for further information.

Condition: reconditioned (used), Year of construction: 1982, functionality: fully functional, overall weight: 17,500 kg, working width: 1,300 mm, working height: 1,300 mm, working range: 1,300 mm, Amada H1300 Horizontal Bandsaw (1982) Capacity 1300 x 1300mm Nodetv E Hcepfx Afcjwc Power 230 V – 50/60 hz / 400 v – 50hz / 460 v 60hz Blade drive 11 kw Hydraulic drive 3.7 kw Coolant drive 0.4 kw Wire brush drive 0.4 kw Blade size 11380mm x thickness 1.6 x width 65 mm Net weight 17.500 kgs Total power requirement 16 kw Machine Data: Model H1300 Year of Construction 1982 Built in Japan

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2016, TRUMPF TruBend Cell 5000 – Robotic Bending Cell | Year 2015 TruBend 5130X Press Brake Nwedpfexdfqmox Afcoc BendMaster Robotic Bending System Control System: TASC 6000 (robot and press are programmed via the machine interface) Press Brake Specifications: Press force: 130 tons Bending length: 3,250 mm Year of manufacture: 02.2016 More information and video available on request ...

Condition: ready for operation (used), Year of construction: 2015, operating hours: 61,469 h, controller manufacturer: TRUMPF, controller model: TASC 6000, This TRUBEND Cell 5000 with TruBend 5085 extended version (2720 mm x 850 kN) and BendMaster 60 was manufactured in 2015. World's first bending automation with image recognition for maximum flexibility. Sheet metal parts up to 40 kg, 6-axis backgauge sensor technology. Maximum repeat accuracy thanks to angle sensor technology (ACB) in automated operation. It features a stable all-steel frame, electro-hydraulic top drive, and a modern block hydraulic system. The control unit is a TRUMPF TASC 6000 with a 15-inch touchscreen and network capabilities. Ideal for precise bending operations, consider the opportunity to buy this TRUMPF TruBend Cell 500 press brake. Contact us for more information about this machine. • Machine: TruBend 5085 (2720 mm x 850 kN) with BendMaster 60 • Stable all-steel machine frame • Press beam with spherical bearing and tilt adjustment • Electro-hydraulic top drive with 4-cylinder technology • Generous edge clearance • Flat front covers • Modern block hydraulics • Electronic pressure balance • Measuring system with glass scale and spring compensation • Hydraulic oil in the machine (lifetime lubrication) • Oil cooler • Control cabinet cooling via air-to-air heat exchanger • Modern machine design • Stop/Backgauge • Stop system • Backgauge system: 2 axes (X and R) • Tool clamping • Upper tool holder, manual clamping, hardened • Lower tool holder, hydraulic clamping, hardened Nedpjx Imqlsfx Afcewc • Lower tool shift, 2 positions, pneumatic • Crowning • Manual crowning • Control • TRUMPF TASC 6000 • Graphical workshop programming • Windows XPe (embedded), Pentium 4, 2.8 GHz • 2 GB RAM • 15-inch touchscreen • Network-enabled • Teleservice via modem • Operation • Control panel with LCD keypad and foot switch • Communication rail • Safety • Standard safety devices • BendGuard safety device for upper tools up to 390 mm • CE marking Additional equipment • TRUMPF BendMaster automation (standard features) • Robot/Handling • Stable base and manipulator in die-cast aluminum • Load capacity 60 kg (workpiece plus gripper) • Low-profile welded floor track • Sheet metal sensor for contour detection • Rotary feedthrough for easy gripper change • Gripper coupling on the BendMaster • Sensors for 4-axis backgauge system • Electric drives • Double sheet detection • NC gripper transfer station • Vacuum generation for suction grippers • Control • TRUMPF PC control with operator terminal • Teleservice via modem • Operation via screen, mouse, and keyboard • Safety • Safety fence with access doorWorld's first bending automation with image recognition for maximum flexibility Sheet metal parts up to 40 kg, 6-axis backgauge sensor technologyMaximum repeat accuracy thanks to angle sensor technology (ACB) in automated operationTruBend 5085 (2720 mm x 850 kN) with BendMaster 60
