Schlatter MG903 ZG24 Mesh Welding plant

Schlatter MG903 ZG24

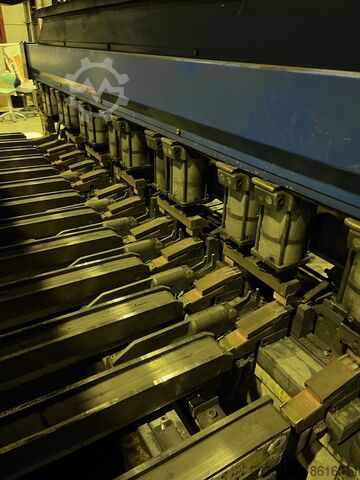

Condition: refurbished (used), SCHLATTER Welded wire mesh production line MG24 Full revamped WORKING RANGE Panel width: max. 2500 mm Weft wire length: min. 900 mm Weft wire length with QF5 dispenser: min. 300 - 1600 mm Spacing between extreme warp wires: max. 2400 mm Mesh length (warp wire length): max. 2500 - 6000 mm Spacing between warp wires: min. 100 mm Spacing between weft wires: 25-250 mm Adjustable by cutting device (0-1) Warp wire diameter: 4.0 - 12.0 mm Weft wire diameter: 4.0 - 12.0 mm Number of warp wires: max. 24 WELDING MESH MACHINE MG 24.1/8C, Basic equipment including: - 1 Machine frame - 1 Upper support for press reception, continuously adjustable by hand crank - 1 Magnet supports with retaining magnets and weft wire monitoring. - 1 Row of pneumatic solenoid valves for press actuation. - 1 Installation for air and water. - 2 Pneumatic rotary drives with oil damping - Static motor torque with 5 bar compressed air: 480 Nm - Front continuously adjustable from: 25 - 250 mm adjustable by cutting device (0-1) - 1 Advance carriage with panel lifting device - 1 Set of tools for machine adjustment WELDING SECTION 8 Type C Transformers Rated power of each transformer: 100 kVA No-load secondary voltage: 7.1 V Rated secondary current: 14 kA 8 Thyristor contactors ES 130 12 Welding presses: 5.0 kN 12 Chain current bridge for spacing of warp wires: 50-100 mm 12 Chain current bridge for spacing of warp wires (for offset warp wires): 100 mm 10 Chain current bridge for spacing of warp wires: 100-150 mm 8 Chain current bridge for spacing of warp wires (for offset warp wires): 150 mm 6 Chain current bridge for spacing of warp wires: 150 - 200 mm 6 Chain current bridge for spacing of warp wires (for offset warp wires): 200 mm 24 Lower electrode holders Cu with standard angled electrodes and each with a water-cooled current cable, width: 58 mm 24 Wire clamping pliers Panel width: max. 2500 mm Hjdjwu Tu Dopfx Afcji Weft wire length: min. 900 mm Weft wire length with QF5 dispenser: min. 300 - 1600 mm Spacing between extreme warp wires: max. 2400 mm Mesh length (warp wire length): max. 2500 - 6000 mm Spacing between warp wires: min. 100 mm Spacing between weft wires: 25-250 mm Warp wire diameter: 4.0 - 12.0 mm Weft wire diameter: 4.0 - 12.0 mm Number of warp wires: max. 24

Condition: excellent (used), Year of construction: 2007, COMPLETE mesh welding plant Plant consist of - Hsdpfx Aswr Tk Hofcei 1. Mesh welding line SCHLATTER model MG-230 Min/Max wire diam - 3,5 - 14,00 mm Max width of mesh - 2.500mm Line and Cross wire feeding - from precut wires / bars Construction year - 2007 2. COMBINED rolling/ribering/straightening/cutting line Line is COMBO - wire rolling/ribering/straightening/cutting Construction year - 2023. 3. Straight and cut machine WAFIOS model R-41-L Min/Max wire diam - 3,00 - 10,00 mm Max cutting length - 10.000 mm Construction year - 1990. Please contact us for more details. VIDEOS AVAILABLE upon request.

Condition: used, Year of construction: 2016, functionality: fully functional, working width: 2,000 mm, wire diameter (max.): 6 mm, type of input current: three-phase, operating speed: 142 mm/s, mesh size: 9,999 mm, continuous power (apparent): 833 kVA, We offer a used Schlatter MG600/MG24.4/10Sp-AC mesh welding machine, model year 2016. Type: MG600/MG24.4/10Sp-AC Serial number: 4885.31609 Year of manufacture: 2016 Rated primary voltage U1N: 400 V Rated secondary voltage Ua: 230 V Primary phases: 3 ~ Secondary phases: 1 ~ Hjdpfoyaqzqjx Afcsi Frequency: 50 Hz Rated apparent power Sp: 833 kVA Rated primary current I1,p: 1202 A Primary short-circuit current I1cp: 50 kA Secondary short-circuit current I’acp: 10 kA If you have any questions or require further information, please feel free to send us a message or call us.

Year of construction: 2001, condition: ready for operation (used), A steel mesh welding system for the automatic production of welded steel wire mesh is available. Mesh width range with a bar diameter of 3mm to 6mm: 500mm-2150mm, mesh width range with a bar diameter of 2mm to 3mm: 500mm-2000mm. Grid length range with a rod diameter of 3mm to 6mm: 600mm-3000mm, grid length range with a rod diameter of 2mm to 3mm: 600mm-2000mm. Min. cross wire pitch: 12.5mm, min. longitudinal wire pitch: 25mm, wire diameter range: 2mm-6mm, max. number of longitudinal wires: 52, production capacity: 52 strokes/min, rated power at 50%: 840kVA, max. stack height: 600mm. Total system dimensions X/Y/Z: approx. 20000mm/7600mm/3400mm. Including longitudinal wire distributor in 40mm and 50mm pitch and longitudinal wire console in 40mm, 50mm and 75mm pitch. Documentation available. On-site inspection is possible. Hodjwfg Eqspfx Afcoi

Condition: excellent (used), Year of construction: 1999, FULLY AUTOMATIC - EVG G55/102 MESH WELDING LINE Construction year – 1999. Line is refurbished 4-5 years ago. Electrical cabinet completelly updated in software, PLC S7-405 and electrical systems in DECEMBER 2018. Line + cross wires from coils Mesh width: min. 1200mm to max. 2500mm Mesh length: min. 2000mm to max. 6000mm Separations between AT: 50mm – 1000mm stepless Separations between AL: 100mm, 150mm, and multiples Diameter AT: min. 3,8mm to max. 8mm Diameter AL: min. 3,8mm to max. 8mm Machine speed: max. 150 QD/min. Reel weight: max. 3000 kg Stack height: max. 700mm Panel weight: max. 150 kg Hsdpoxvmamsfx Afcsi Power rating of welding transformers at 50% intermittent duty: 960 KVA Drive power: 153kW Tension de red: 3 x 400V Network frequency: 50 Hz Dimensions (approx. mm) Machine: L x W x H Weight: G55L/102-RV 4900mm x 1800mm x 2300mm 15,000 kg T6B/102 7500mm x 2200mm x 1800mm 6,000 kg T6B/102 5200mm x 1700mm x 2200mm 4,200 kg Main Voltage: 3 x 400 V Frequency: 50 Hz Connection power: 960 kVA (50% S.I.) 192 kVA (drive force) 24 longitudinal wire straightener Longitudinal wire dragger Lars loop Longitudinal straighteners Longitudinal feed Welding head Shears Mesh extraction Turner stacker Exit table of 7m Cross feeders Cross wire drag
