SCHLATTER MESH WELDING LINE MG 24.1/8CSCHLATTER
MESH WELDING LINE MG 24.1/8C
Machine data
- Machine type:
- SCHLATTER MESH WELDING LINE MG 24.1/8C
- Manufacturer:
- SCHLATTER
- Condition:
- refurbished (used)
Price & Location
- Location:
- Madrid, Spain
Details about the offer
- Listing ID:
- A194-29911
- Reference number:
- 4056
- Update:
- 25.06.2025
Description
Full revamped
WORKING RANGE
Panel width: max. 2500 mm
Weft wire length: min. 900 mm
Weft wire length with QF5 dispenser: min. 300 - 1600 mm
Spacing between extreme warp wires: max. 2400 mm
Mesh length (warp wire length): max. 2500 - 6000 mm
Spacing between warp wires: min. 100 mm
Spacing between weft wires: 25-250 mm
Adjustable by cutting device (0-1)
Warp wire diameter: 4.0 - 12.0 mm
Weft wire diameter: 4.0 - 12.0 mm
Number of warp wires: max. 24
WELDING MESH MACHINE MG 24.1/8C, Basic equipment including:

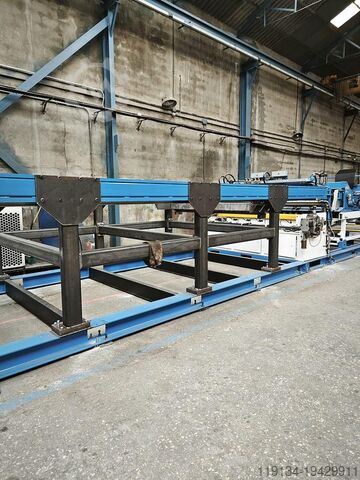

- 1 Machine frame
- 1 Upper support for press reception, continuously adjustable by hand crank
- 1 Magnet supports with retaining magnets and weft wire monitoring.
- 1 Row of pneumatic solenoid valves for press actuation.
Hedpfx Afowu Tu Djcsi
- 1 Installation for air and water.
- 2 Pneumatic rotary drives with oil damping
- Static motor torque with 5 bar compressed air: 480 Nm
- Front continuously adjustable from: 25 - 250 mm adjustable by cutting device (0-1)
- 1 Advance carriage with panel lifting device
- 1 Set of tools for machine adjustment
WELDING SECTION
8 Type C Transformers
Rated power of each transformer: 100 kVA
No-load secondary voltage: 7.1 V
Rated secondary current: 14 kA
8 Thyristor contactors ES 130
12 Welding presses: 5.0 kN
12 Chain current bridge for spacing of warp wires: 50-100 mm
12 Chain current bridge for spacing of warp wires (for offset warp wires): 100 mm
10 Chain current bridge for spacing of warp wires: 100-150 mm
8 Chain current bridge for spacing of warp wires (for offset warp wires): 150 mm
6 Chain current bridge for spacing of warp wires: 150 - 200 mm
6 Chain current bridge for spacing of warp wires (for offset warp wires): 200 mm
24 Lower electrode holders Cu with standard angled electrodes and each with a water-cooled current cable, width: 58 mm
24 Wire clamping pliers
Panel width: max. 2500 mm
Weft wire length: min. 900 mm
Weft wire length with QF5 dispenser: min. 300 - 1600 mm
Spacing between extreme warp wires: max. 2400 mm
Mesh length (warp wire length): max. 2500 - 6000 mm
Spacing between warp wires: min. 100 mm
Spacing between weft wires: 25-250 mm
Warp wire diameter: 4.0 - 12.0 mm
Weft wire diameter: 4.0 - 12.0 mm
Number of warp wires: max. 24
