Tipper semitrailer

SCHMITZ CARGOBULL Kipper 52m³ mit gekröpftem Chassis

Chassis weight-optimized chassis frame in a new design
* Light chassis 9.6 cranked, welded fine-grain steel
* Axle spacing 1310/1310 mm
* Side impact protection, color Schmitz Granite Underrun protection foldable
* Axle lift
* Axle lift 1st axle automatic/pneumatic Starting aid electric
* Hydraulics
* Low pressure cylinder 170 to max. 190 bar HYVA
* Axle ROTOS SCB running system (disc brake)
* 3 x axle SCB 9 t, SP2040, FM1300, ET 120 Disc brake 430 mm
* Suspension
* 3 x SCB air spring type: MRH-EO30
* Braking system
* Two-line compressed air braking system with standard couplings EBS 2S/2M with stability program automatic lowering during tipping
Gujdpfsuaifrjx Afpsh
* Double diaphragm spring-loaded cylinder lifting and lowering device with AUTO-RESET function 2 wheel chocks with holder
* CARGOBULL *TrailerConnect
* TrailerConnect control unit CTU including battery
* TrailerConnect tire pressure monitoring system
* Support winch
* Auxiliary support frame (only park when empty)

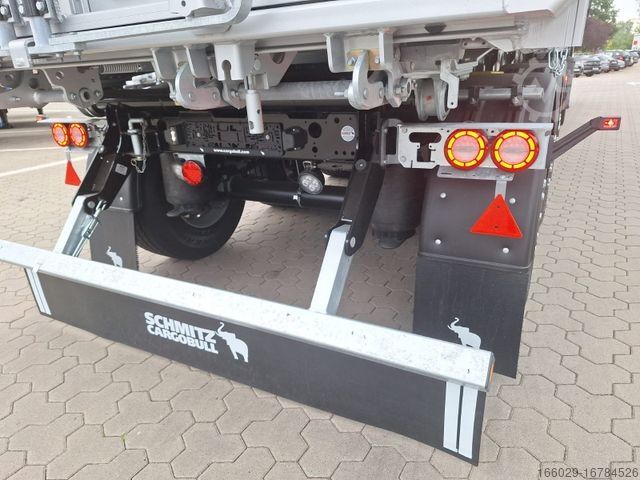

* Lighting systemLED lighting system 24V with double round 3 K lights and 1 LED rear fog lightPremium distributor+Flexbox with 3 sockets 2x7-pin. DIN ISO3731+DIN ISO1185+ISO12098
* Reversing alarm switched via reversing lights
* LED side marker lights coupled with indicators
* 2 x 2 LED reversing lights separately
* Installation 2 pieces at the rear and 2 pieces on the right/left side
* Wheels and tires Tire brand SCB "SELECTION" Continental Regional transport tires (M + S) 6-fold 385/65R22.5 (11.75x22.5) 6x ALU wheels Dura-Bright ET 120 Make: ALCOA Fender P00704 Antispray mud flaps with Schmitz logo
* Additional chassis equipment
* Tow coupling with locking pin on the left in the direction of travel
* Without rear ladder
* Large plastic toolbox, installation in front of the axle unit on the left in the direction of travel
* Structure
* Bulkhead Bulkhead inclined 20° with stable supports for the front tilt cylinder

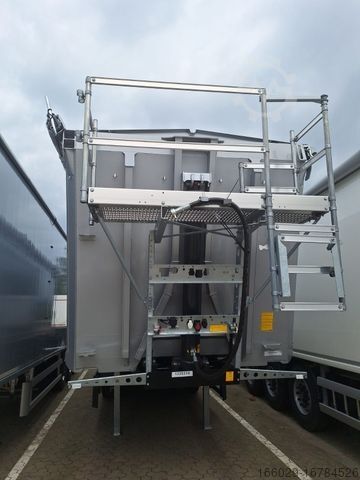

* Holder for broom and shovel on the front wall Working platform with access on the front left and ladder for trough entry (for BH from 2200mm)Side walls
* without wear plate Side wall Rubber impact protection profile on the outside, as impact protection and deflector for tarpaulin straps
* Tipper trough/accessories
* Aluminum box trough (AK) 9.6, height 2200 mm Inner wall thickness 3.5mm, rounded bottom belt
* Profile joints completely welded through inside Rear wall1 pair of additional tension locks
* Aluminum combination door 1/1 door and pendulum function with pendulum frame and bow
* Trough length 9,807 mm Double-joint pendulum bearing for surface-mounted rear wall flaps and combination doors Cross bow in front of the rear wall removable
* automatic, mechanical 4-hook locking
* 2 grain pushers with cover

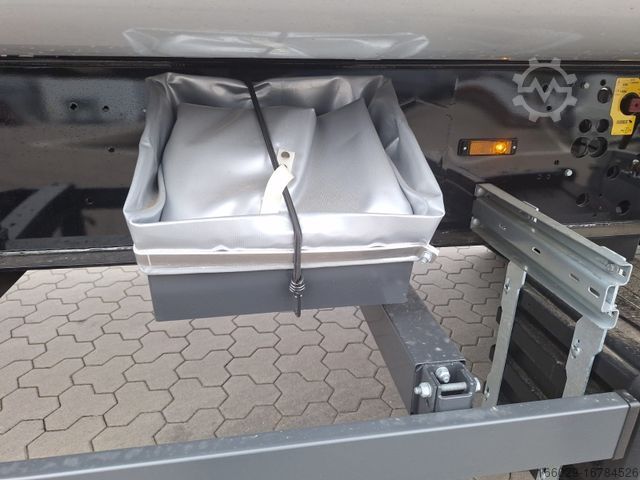

* Grain discharge hopper with sack
* FloorAluminum floor rear approx. 3600mm in 5mm front 5mm (AK9.6) front floor assembly in tunnel design, front wall suitable for cranked chassis floor cannot be driven on with a forklift truck
* roof-shaped crossbar with tensioning chain 90° swivel, removable, telescopic
* Bow/tensioning chain marking on the right and left of the side walls
* TarpaulinsPVC roll-up tarpaulin with tarpaulin wrap profile (tube) and side stops tarpaulin design for roof-shaped attachments tarpaulin with sewn-in center tube tarpaulin fastening at the rear with tensioning rubbers at the top tarpaulin with quick-release device
