Vertical CNC working centre

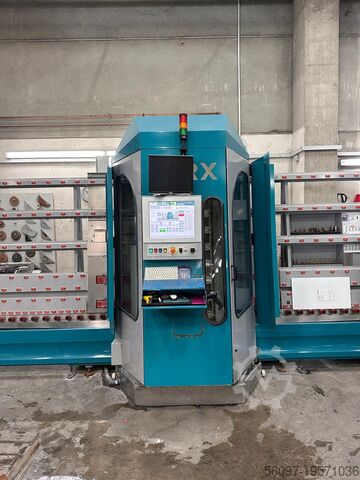

Schraml Topdrill M-RX 130 linear 8 vertical CNC

Condition: excellent (used), Year of construction: 2016, Schraml Topdrill M-RX 130 Vertical cnc glas milling and drilling centre Processing: Max. Glas-Length: 3.200 mm Max. Glas-height: 1.300 mm Nledpjwzkm Rjfx Ah Dsi Min. Glas-length: 600 mm Min. Glas-height: 130 mm Thickness: 4-20 mm Options: - 2x Elektrospindle 5,5 kW 0-12.000 U/Min - Tool Magazin with 2x 8 slots - CAD/CAM - central lubrification

Condition: new, Year of construction: 2025, Schiatti Angelo BFP12 Double Edger Max. working width: 1.300 - 4.500 mm Processing station with different processing options: 5 / 6 / 8 / 9 / 10 / 11 Spindle - Glasthickness 3-35 mm - min. working width 160 mm - Max. weight: 480 KG - Automatic thickness adjustment via SPS Nlodpfowd Hbiex Ah Doi - Tanks for waste water collection - Inkl. turning station

Condition: refurbished (used), Year of construction: 2020, functionality: fully functional, Tamglass HTF ProE 2136-CTS-20-L (iC) Glaston Furnace Computers/Software 2020 Glaston iControl upgr 2020 Glaston Furnace 1 PC upgrade 2023 Glaston Blower Upgrade 2020 Glaston Furnace Integrated Sca 2020 delivered year 2013 • Thermal scanner upgrade delivered year 2014 • Air balance upgrade (AAB) delivered year 2019 • New Impellers (2 pcs) for blowers KSXMB-80-3 RD/LG • New Bearing units (2 pcs) for blowers KSXMB-80-3 RD/LG • Blower vibration monitoring system upgrade (BMONi) • Frequency converters for quenching blowers (S) TECHNICAL SPECIFICATION AND DATA TAMGLASS HORIZONTAL TEMPERING FURNACES Glass thickness range: 3.8...19 mm tempering Loading area: 3.8mm and over 2100mm x 3600mm Maximum glass size: ANSI Z97.1-1984 ECE R43 4.7 mm and over 2100 mm x 3600 mm (3900)* 1000 mm x 1500 mm 3.8 mm and over 2100 mm x 3000 mm - Nodewinuhjpfx Ah Djli *Single sheets 300 mm longer can be tempered with reduced production rate Minimum glass size: 3.8mm and over 100mm x 250mm Maximum production rates with K = 100%, with clear float glass. 4mm 160 m2/h 5mm 135 m2/h 6mm 112 m2/h 8mm 84 m2/h 10mm 67m2/h 12mm 56m2/h 15mm 45m2/h 19mm 35m2/h In actual operation, the production rates reach 50-85% of the maximum and depend on the glass dimensions, edgework quality, and loading area utilization. Minimum distance of sheets from each other is 50 mm. Environmental conditions: Temperature 20…40 ºC Relative humidity < 80% Installed power at sea level: Heating and drive 464 kW Blowers 2 x 215 kW 430 kW Total 884 kW

Condition: new, Year of construction: 2024, functionality: fully functional, machine/vehicle number: GM-1400H, total width: 3,000 mm, total length: 5,000 mm, total height: 3,250 mm, type of input current: three-phase, energy consumption: 60 kWh, input current: 80 A, workpiece weight (max.): 2,720 kg, power: 48 kW (65.26 HP), workpiece height (max.): 950 mm, warranty duration: 1 months, working range: 319 mm, number of chambers: 3, Equipment: adjustable chassis, Conveyors are produced in such a way that they will not scratch the glass and leave no stains. The machine is made of steel and aluminum materials. Thanks to specially designed water sprays and brushes, the glasses comes out completely free from oils, stains and dust and cleaned. Angles of water nozzles will be adjustable. Conveyor rollers are produced of Ø 55 mm vulcanized rubber . Induction hardened gears are used in transmission gears. There will be 3 Washing Cabins, pre-washing, washing and rinsing washing system. In the pre-washing section, the upper and lower surfaces of the glass are washed with high-pressure spray nozzles. In the same cabin ,will be compressed air to the upper surface of the glass with air knife and the water will be completely cleansed. Thanks to this process, the glasses will go into the wash without entering the brush washing compartment, free from their dirt. There are 6 Brushes (Ø 120 mm.) in the Washing Machine and they will be able to wash laminated glasses. 2 of the brushes will be in the inlet (pre-wash) and 4 in the outlet (rinse-wash). there are brushes in total, 2 piece of them at the entrance and 4 pieces at the exit. 2 of the brushes will be suitable for laminated glass washing. the other 4 brushes will be for normal standard use. Features of brushes to wash laminated glass is ; Bristle material will be 6.6 P.A. The bristle diameter will be 0.15mm. The bristle length will be between 30-35 mm. Brush shaft will be produced of ASI 304L quality stainless material. During washing, the brush suitable for the laminated coated glass, whose properties are given above, will come into contact with the surface of the glass. Njdpfxer Ak Exs Ah Djli To the other part of the glass will come into contact standard glass washing brush. The washing and air drying section will have an elevator system with a 350 mm opening and closing structure for maintenance and cleaning. Thanks to the elevator, the glass thickness (3-19 mm) can be adjusted easily. The speed of the conveyors will be adjustable between 0 m/min and 5 m/min. There will be a sound insulation cabinet in the drying fan. 1 piece of G4 filter and 1 piece of F7 filter will be at the air inlet of the drying fan . The filters will be of standard size and can be changed and will be 592*592*20 mm square type. 23. Thanks to the powerful air knives, the glasses will come to the exit conveyor dry. The height of the air knives will be adjustable. All pipes and hoses in the machine will be in a matte color to prevent algae formation in daylight. 26. Digital displays and many electronic equipment will be Delta or Schneider brand. There will be a stop sensor at the exit of the conveyor to prevent the glass coming from the machine from falling to the ground. There will be lighting system in the washing exit area for quality control from the bottoms and top of the conveyor towards the glasses. These lightnings will have the ability to be switched on and off separately. There are 3 separate water tanks in the machine. There will be an overflow water line that will prevent the water in the water tanks from overflowing.

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, type of input current: AC, Equipment: documentation/manual, TAMGLASS / GLASTON HTF ProE – 2448-ADS-R 2400 x 4800 mm, 3 – 19 mm, Right – Left Njdpoxtf Dfofx Ah Deli Glass tempering furnace (for Low-E glass) Year: 2006 Noise reduction cabin included 160 kW compressor for 3 mm glass included In good condition.

Condition: excellent (used), Year of construction: 2021, functionality: fully functional, total length: 20,800 mm, total width: 9,500 mm, total height: 2,000 mm, year of last overhaul: 2024, Maximum glass processing size 2000 x 3000 mm Nljdpfotvmkfex Ah Dsi

Condition: excellent (used), Year of construction: 2004, BOVONE (2004) Lamination Line Comprising: Tilting table, washing unit, positioning table, portal table, film roll storage, folding table, transport table, pre-lamination oven with pressing unit, transport table, and take-off tilting table. Glass thickness: 3–12 mm Maximum assembled panel thickness: 60 mm Minimum panel size with automatic loading and unloading (standard cycle): 400 x 700 mm Minimum panel size without automatic loading and unloading (small parts cycle): 550 x 300 mm Maximum panel size: 2200 x 4500 mm Approximate average assembly time per panel (glass/PVB/glass): 70–100 seconds Worktop height: 950 mm +/- 20 mm Nljdpfxewxxk Ej Ah Dji Compressed air consumption: minimum 6 bar, 400 l/h Demineralized water consumption (with water recycling system): 0.7 m³/8h Three-phase supply voltage: 400 V +10% Supply frequency: 50 Hz +2% Auxiliary voltage for cabinet lighting: 240 V single-phase Installed electrical power: 265 kW Estimated average electrical power consumption: 215 kW Compact installation area (U-shape) Autoclave ITALMATIC available

Condition: good (used), Technical specifications for the pallet rack crossbeam: Shelving system: Stow Type: Pal Rack NS Included in delivery: 1x pallet rack crossbeam, used Material color: RAL 2004 orange Box profile: 80 x 50 mm Crossbeam type: PNB0488 Hooks: 4 HK (hook) Clear width: 2,500 mm Max. load per pair of crossbeams: 1,000 kg with evenly distributed load Nodpfx Ahjwaghnj Doli 2x locking pins, used Design: fully galvanized To secure the longitudinal beams against accidental lifting Your contact person in our company: Mr.: Andre Evering Mr.: Mario Klöver Mr.: Falk Deutsch General information about the item: This item is available for pickup only. Any additional transport or shipping of this item will incur additional costs, which can be requested separately from us depending on the delivery location and scope of delivery.

Condition: used, Year of construction: 1994, BAVELLONI B73 CN – Year 1994 Bevelling machine Min. plate size: 40 x 40 mm Thicknesses: 3 - 20 mm Working speed: 0 - 4 m/min Angle: 3 - 45 ° Bevel size: 50 mm Power: 17 kW Dimensions: 7200 x 1700 x 2300 mm Weight: 4200 kg Nedjxxaupopfx Ah Dsli

Condition: good (used), Technical data for pallet rack beam: Racking system: Stow Type: Pal Rack NS Included in delivery: 01x pallet rack beam, used Material colour: RAL 2004 orange Box profile: 160 x 50 mm Beam type: PNB0446 Connector: 4 hooks Clear width: approx. 3,900 mm Max. load per pair of beams: 3,491 kg with evenly distributed load 02x locking pins, used Design: completely galvanized For securing the crossbeams against unintentional lifting Your contacts at our company: Mr. Andre Evering Mr. Mario Klöver Nodpfxoxup Rxo Ah Dsli Mr. Falk Deutsch General information about the item: This item is only offered for collection. Should transport or shipping of this item be required, this will incur additional costs, which can be quoted separately according to the delivery location and volume.
