Multirip saw

SCM M3

Condition: good (used), Multiblade saw SCM M3 Maximum cutting height: 100 mm Conveyor belt width: 300 mm Minimum cutting length: 390 mm Drive motor: 18.5 kW with laser unit Blodpjxrtq Dofx Abmjp Weight: approx. 1,800 kg Location: Austria, Ried im Innkreis

Condition: used, Year of construction: 2019, Incl. tools CNC-CONTROLLED MACHINING CENTER morbidelli m100 Drilling and milling made for you! This numerically controlled machining center is equipped with a wide range of milling and drilling tools to meet every woodworking requirement. - Highly powerful - with 8,000 rpm drilling spindles and . technology, the most stable spindle available on the market, with more than 1,000 maintenance-free hours of use. - Optimally and comprehensively equipped - the vacuum cleaners can be individually configured with the TV FLEX work table to customize the machine to meet individual requirements. - Easy and understandable programming thanks to the integrated Cad-Cam MAESTRO CNC software - Easy to operate; the lowered machine frame makes the work table accessible at all times. The control cabinet and vacuum pump are integrated into the machine bed, and in the PRO SPACE version, no additional structural protective measures are necessary. Supporting structureThe supporting structure consists of a particularly strong monolithic steel base, ribbed and very robust. The particularly wide support was specifically designed to give the machine stability, ensuring constant precision in all working conditions. The machine does not need to be anchored to the ground. The base provides a large and solid support for the mobile column: the work unit is equipped with a balanced, stable and resistant support that can withstand the most extreme stresses, ensuring superior performance and greater precision. The mobile gantry consists of a solid single part anchored to the base and the work unit is fixed to it and moves along Y and Z axes, also on prismatic guides with ball return sliding blocks of the highest quality. The movement of the lower moving unit (X-axis) and the working unit along the crosshead of the moving unit (Y-axis) is achieved thanks to the power transmission via a rack and pinion with helical teeth; This creates a greater tooth-to-tooth thrust, which achieves greater acceleration and higher speed along the X and Y axes. The specially designed helical gearing ensures less wear on the mechanical components and less noise. The vertical Z axis is driven by a screw with ball return, which ensures perfect balance with dynamic loading and strong acceleration and deceleration. The main milling unit is directly coupled to the Z axis carriage and ensures very high quality finishing as vibrations are completely eliminated. Translation along the X-Y-Z axes is carried out by brushless motors driven by static inverters. These ensure:- Reduced machining times thanks to improved acceleration- Better positioning accuracy thanks to the high resolution encoder- Elimination of setup operations when switching on the machine thanks to absolute encoders- Elimination of general maintenance operations as there are no brushes with the "brushless" systemThe management of the axis displacement and in general of the working elements of the machine is done via e Bodpjvvi Scjfx Abmjlp

Condition: new, Year of construction: 2025, Table milling machine minimax twf 55 es M 3 UP Professional workman's machine with motorized height and inclination adjustment of the milling spindle, four speeds and electronic control system Item number 5502266 Brand Holzkraft / SCM EQUIPMENT Equipment Aluminum sliding carriage ✔ Handle at sliding carriage ✔ FLEX ONE routing fence: heavy-duty professional design, automatic adjustment of the entire routing fence depending on the tool diameter, manual adjustment of chip removal, swing-away device, aluminum fence jaws with connecting strips Height adjustment of the spindle motorized. Telescopic miter fence with two folding stops Inclination adjustment of the spindle motorized Cantilever table ✔ Ready 3 control: Programmed movement of the milling unit in two axes, Automatic adjustment of the entire milling stop depending on the tool diameter, Stepless adjustment via switch or automatic positioning system Curved milling protective hood ✔ Position of control elements Control panel at eye level, swiveling Eccentric clamp TECHNICAL DATA Dimensions and weights Length (product) approx. 1200mm Weight (net) approx. 510kg width/depth (product) approx. 2000mm Bedpfx Ashp Rc Iobmjlp Connection suction suction connection diameter 2 x 120mm Work table Working table length 1200mm Sliding carriage length 1200mm Working table width 530mm Sliding carriage width 360mm Table height 900mm Slide height 142mm Installation information Space requirement length 2800mm Machine body width/depth 846mm Space requirement width [...]

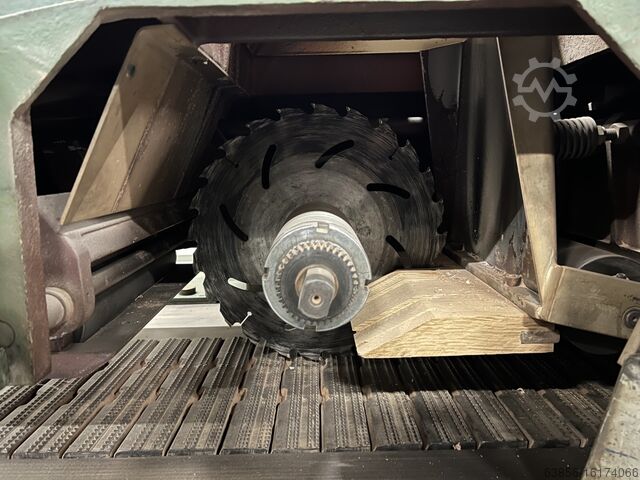

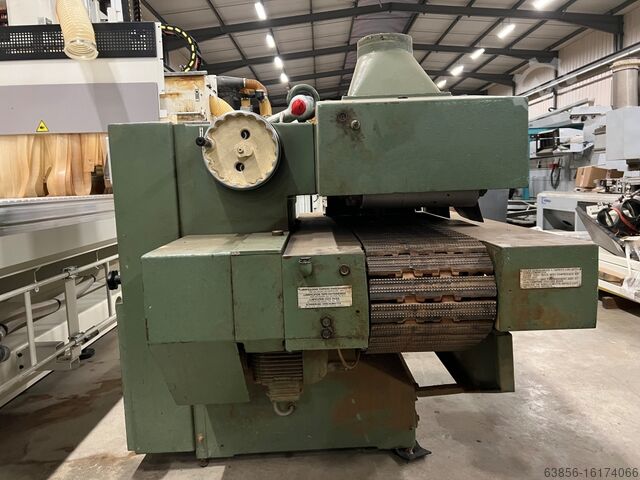

Condition: used, SCM M3 double edger, in good condition, 300 mm cutting width, 100 mm cutting height Blodpexlnpnjfx Abmep

Year of construction: 2000, condition: good (used), Multiblade tracked SCM M3 4 - Italian production Bljdpfx Aeg Tdfdebmjp - year of production 2000 - DTR TECHNICAL SPECIFICATIONS: track width 300 mm cutting height 120 mm engine power 25 kW max. blade diameter 350 mm max. workpiece width 1000 mm min. workpiece length 400 mm adjustable feed on the inverter pneumatically adjustable ruler on the right revolver ruler setting of 6 types three rows of anti-recoil pawls possibility of putting on a board - a shoe spindle diameter 50 mm sleeve diameter 70 mm sleeve equipped with spacers automatic central lubrication four upper pressure shafts spigot diameter 180 mm and 120 mm dimensions of the machine (length / width / height) 210/175/160 cm weight 1800 kg

Condition: used, Year of construction: 2001, machine/vehicle number: AB145642, MULTIRIP SAW SCM MOD. M3 – CE RULES - Year of manufacture: 2001 - Serial number: AB145642 - Power supply voltage: 400 V / 50 Hz - Motor power: 18.5 kW - Blade rotation speed: 4,200 rpm - Maximum blade pack width: 300 mm - Conveyor belt width: 300 mm - Maximum blade diameter: 350 mm - Minimum blade diameter: 200 mm - Minimum workpiece length: 390 mm - Blade bore diameter (shaft): 70 mm - Keyway dimensions on blade shaft: 20 x 5 mm - Distance from machine base to first right blade: 200 mm - Conveyor feed speed: continuously adjustable from 6 to 48 m/min - Conveyor type: with direct-joint spheroidal cast iron pads - Conveyor guide rails: low-friction, one with prismatic profile for perfect straightness - Conveyor lubrication: automatic - Clutch: present on feed speed variator - Working table height from floor: 750 mm - Working table dimensions: 1,530 x 950 mm - Dust extraction port for blades: Ø 200 mm - Dust extraction port for conveyor: Ø 120 mm - Air volume extracted (at 25 m/sec): 3,850 m³/h - Programmable fence: with turret stops, pneumatic positioning via foot pedal Bsdpfx Aewr Elpjbmslp - Laser reference: for cutting line - Base frame: made of single-block cast iron

Condition: excellent (used), chain width 300mm cutting height 120mm max blades diameter 350mm variable regulated feeder manual regulation of pressure rolls manual regulation of shafts Blsdpfjw A Hz Hsx Abmjp connection 380V

Condition: excellent (used), Year of construction: 2006, track width: 300 mm cutting height: 120 mm Bsdpswxrrvjfx Abmolp max. disc diameter: 350 mm motor power: 30 kW table width: 750 mm feed adjustable via frequency inverter fence adjustable pneumatically

Condition: excellent (used), SCM M3 multi-track saw Width of track 300mm Cutting height max 120mm Main engine power 37kw Feed speed adjustable on variator 6-45m/min Disc diameter max/min 350/200mm Maximum piece width 1000mm Minimum workpiece length 600mm 3 rows of anti-rejection latches Spindle diameter 50mm Bushing diameter 70mm Central track lubrication CE certificate Extraction spigot 200mm Bsdpfxjm Rg Dge Abmelp

Condition: ready for operation (used), Technical characteristics Blade diameter: max 350 mm Cutting width: 350 mm Cutting height: 120 mm Bodpfx Aotqw Uwobmslp Feed speed: 6 to 48 m/min Belt width 300 mm Motor 18.5 kW Feed 1.5 kW Belt lubrication Infeed guide 4 pressure rollers Power and Motors Pluging: Three-phased Power: 20 Kw Motor: 25 CV Overall dimensions
