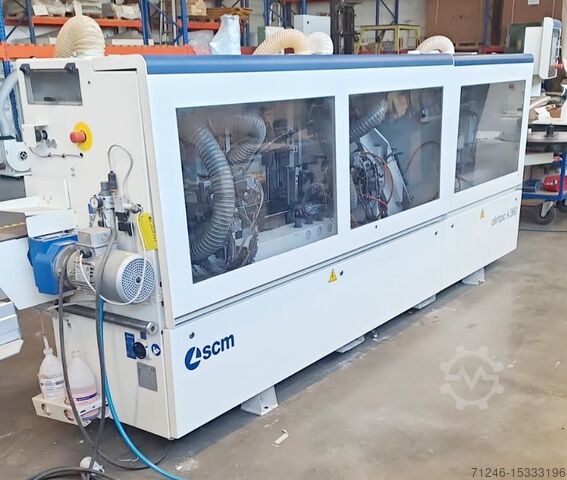

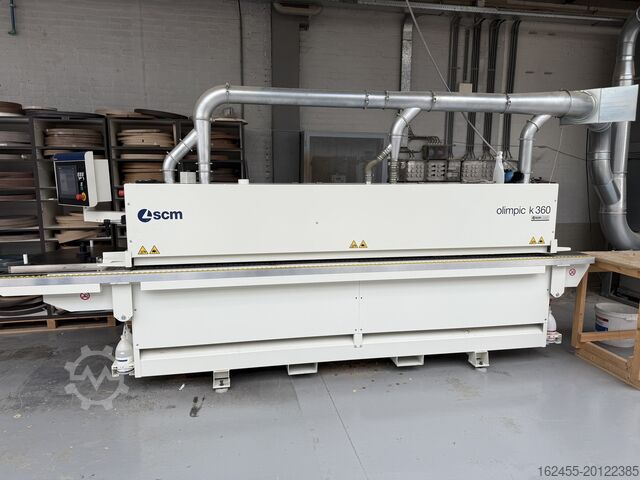

Edge Bander (Edgebander)SCM
olimpic k 360
Machine data
- Machine type:
- Edge Bander (Edgebander)
- Manufacturer:
- SCM
- Model:
- olimpic k 360
- Year of construction:
- 2017
- Condition:
- good (used)
Price & Location
- Location:
- RUE DES PINS 2, 44460 SAINT NICOLAS DE REDON, France
Details about the offer
- Listing ID:
- A153-33196
- Update:
- 17.02.2026
Description
Brand: SCM
Model: K 360 HP-T-ER1 Serial No.: AH/120944
Ref: 123304 Year: 2017
WORKING CAPACITIES:
- Panel height to be machined: 8 - 58 mm
Thickness 10 to 45 mm when using rounding unit
- Panel length for edgebanding: 210 to 2500 mm
- Minimum panel width to be machined: 90 to 1100 mm
- Edge thickness in coil: 0.4 to 3 mm without rounding
max 3 mm with rounding unit
- Edge thickness in strips: max 6 mm without rounding
max 3 mm with rounding unit
- Edge width: panel thickness + 2 mm each side
- Feed rate: 11 m/min
- Minimum gap between panels: 600 mm
- Panel overhang beyond the transfer chain: 30 mm
MACHINE CONFIGURATION:

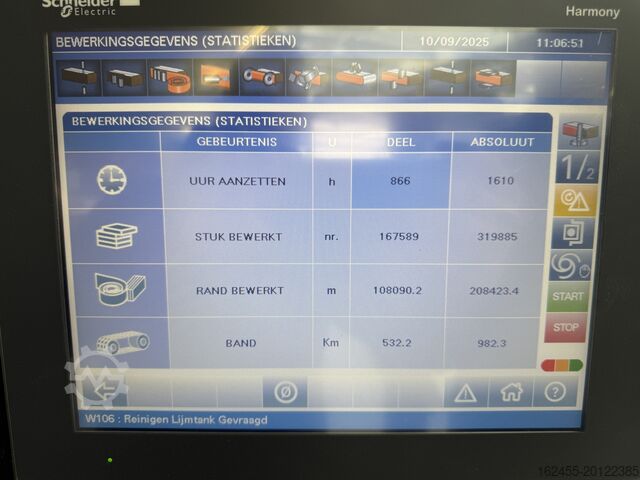

- StarTouch control
- Prepared for barcode reader
- Reel holder table Ø800 mm
- Front extension table
- Easy size: digital positioning of infeed fence and panel passage height
- Anti-adhesive spray unit
- Pre-milling unit (RT-V trimmer) 12,000 RPM
- Infrared panel preheating at infeed
- Glue application unit (VC-VM) with interchangeable glue pot
for granules, capacity: 1 kg. Heating time: 12 minutes
Pneumatic pre-cut guillotine
Digitally positioned pressure station with 3 rollers
(1 roller powered and with timer)
- Trimming unit (end cutting) tiltable 0-20° 12,000 RPM
- Top/bottom flush trimming unit with digital positioning and copying system. 2 mm radius (or chamfer) router 12,000 RPM
- Corner rounding unit R2 mm, 12,000 RPM, digital positioning
- Top/bottom R1 & R2 mm radius scrapers with digital positioning
- Top/bottom straight scrapers
- Edge finishing spray device (Nebulizer)
OTHER FEATURES:
- Pre-milling group motors: 2x2 kW
- End trimming motors: 2x 0.19 kW
- Lift/lower motor: 0.30 kW
- Feed motor: 1.1 kW
- Flush trimming group motors (milling): 2x 0.65 kW
- CE Marked
- Lockable isolator, emergency stop buttons
- Power supply: 380 V, three-phase, 50 Hz
- Pneumatic supply: 8-10 bar max, dry air

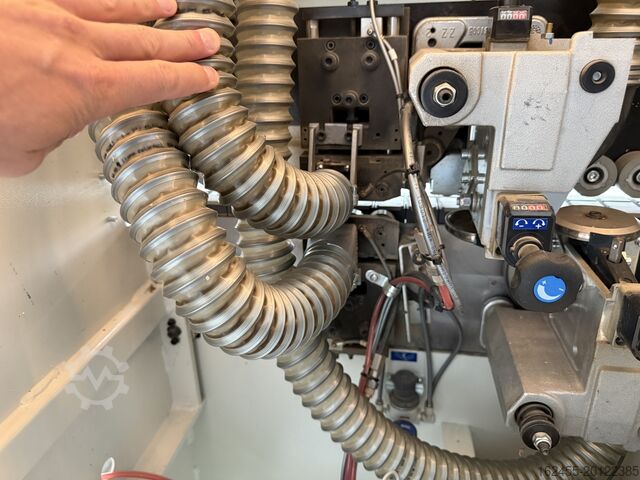

- Extraction: 1x Ø100 mm and 5x Ø80 mm
Hodpfx Ajrx S Iped Hoff
Spindles: 780 m³/h Edge trimming: 360 m³/h Scrapers: 2x360 m³/h
Max. footprint in working order: 10.80 x 2.40 m
Dimensions for transport (LxWxH): 4.85 x 1.20 x 1.70 m
Weight: 1568 kg
Machine supplied with mounted tools, manual, spare parts list and diagrams.
The listing was translated automatically. Translation errors are possible.
