SCM Olimpic k 360 Olimpic
Success:
Your message has been sent.
Listing
Liberec 30
8,158 km

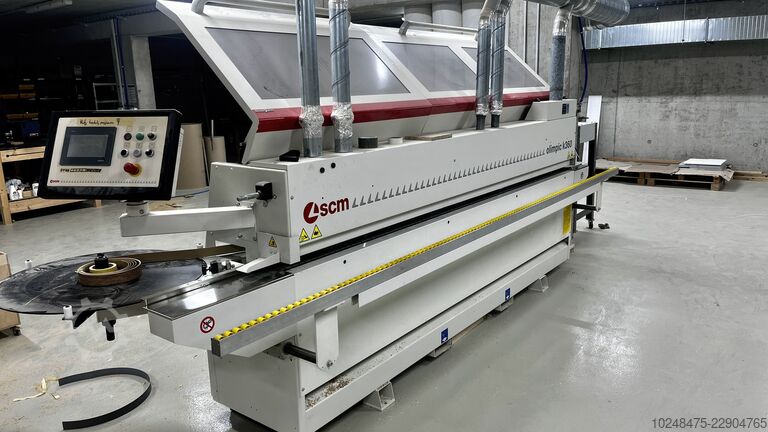

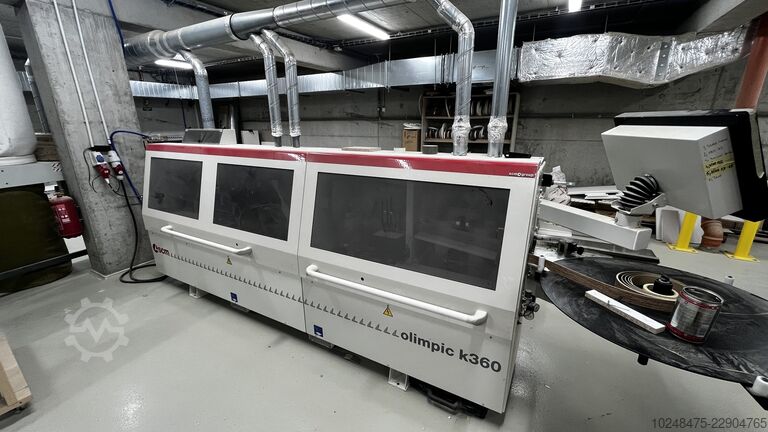

Edgebander
SCMolimpic k 360
Call
Condition: ready for operation (used), Year of construction: 2017, machine/vehicle number: AB / 231059, functionality: fully functional, input voltage: 400 V, input current: 23 A, input frequency: 50 Hz, type of input current: three-phase, edge thickness (max.): 3 mm, height adjustment type: mechanical, feed rate X-axis: 11 m/min, actuation type: electric, total height: 1,770 mm, total length: 4,400 mm, total width: 1,100 mm, overall weight: 1,000 kg, Equipment: documentation/manual, This machine comes fully equipped to provide flawless edges:
1. Pre-Milling Unit (RT-V): 2 counter-rotating diamond heads to eliminate panel chipping and telegraphing.
2. Gluing Station: High-efficiency EVA glue basin with rapid heating and automatic temperature control.
3. Pressure Zone: Driven main roller plus 2 idle pressure rollers for an optimal glue line.
4. End Trimming Unit (K-2): Dual-motor automatic switching for straight or beveled cuts.
5. Fine/Flush Trimming Unit: High-frequency motors with numerical control adjustment for flush, radius, or chamfered trimming.
6. Corner Rounding Unit (Round 1): Complete finishing of panel corners on straight or shaped panels.
7. Edge Scraping Unit: Eliminates radius chatter lines for a smooth finish.
8. Glue Scraping Unit: Cleans away any residual squeeze-out along the joint line.
9. Polishing/Buffing Unit: Dual cloth motors to restore color and sheen to extruded PVC/ABS edges.
10. Anti-Adhesive Spray System: Dual-liquid spraying device to keep panels perfectly clean.
Controls

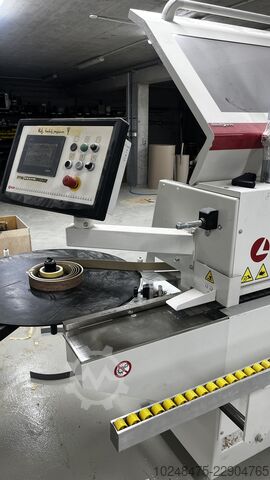

• Interface: SCM Orion electronic control panel with digital display for effortless program setup, unit exclusion, and troubleshooting.
• Guide System: Numerically controlled automatic infeed guide.
• Safety: CE certified with full enclosure safety hood and safety microswitches.
• Material Support: Extendable roller support rail for processing oversized panels.
Knsdpo Ah Simsfx Afdsd
Success:
Your message has been sent.
Listing
Saint-Nicolas-de-Redon
7,315 km
Edge Bander (Edgebander)
SCMolimpic k 360
Call
Condition: good (used), Year of construction: 2017, NUMERICALLY CONTROLLED EDGE BANDER WITH PRE-MILLING (SPINDLES) & CORNER ROUNDING UNIT
Brand: SCM
Model: K 360 HP-T-ER1 Serial No.: AH/120944
Ref: 123304 Year: 2017
WORKING CAPACITIES:
- Panel height to be machined: 8 - 58 mm
Thickness 10 to 45 mm when using rounding unit
- Panel length for edgebanding: 210 to 2500 mm
- Minimum panel width to be machined: 90 to 1100 mm
- Edge thickness in coil: 0.4 to 3 mm without rounding
max 3 mm with rounding unit
- Edge thickness in strips: max 6 mm without rounding
max 3 mm with rounding unit
- Edge width: panel thickness + 2 mm each side
Kodpferx S Ipox Afdsnd
- Feed rate: 11 m/min
- Minimum gap between panels: 600 mm
- Panel overhang beyond the transfer chain: 30 mm
MACHINE CONFIGURATION:
- StarTouch control
- Prepared for barcode reader
- Reel holder table Ø800 mm
- Front extension table
- Easy size: digital positioning of infeed fence and panel passage height
- Anti-adhesive spray unit
- Pre-milling unit (RT-V trimmer) 12,000 RPM
- Infrared panel preheating at infeed
- Glue application unit (VC-VM) with interchangeable glue pot
for granules, capacity: 1 kg. Heating time: 12 minutes
Pneumatic pre-cut guillotine
Digitally positioned pressure station with 3 rollers
(1 roller powered and with timer)
- Trimming unit (end cutting) tiltable 0-20° 12,000 RPM
- Top/bottom flush trimming unit with digital positioning and copying system. 2 mm radius (or chamfer) router 12,000 RPM
- Corner rounding unit R2 mm, 12,000 RPM, digital positioning
- Top/bottom R1 & R2 mm radius scrapers with digital positioning
- Top/bottom straight scrapers
- Edge finishing spray device (Nebulizer)
OTHER FEATURES:
- Pre-milling group motors: 2x2 kW
- End trimming motors: 2x 0.19 kW
- Lift/lower motor: 0.30 kW
- Feed motor: 1.1 kW
- Flush trimming group motors (milling): 2x 0.65 kW
- CE Marked
- Lockable isolator, emergency stop buttons
- Power supply: 380 V, three-phase, 50 Hz
- Pneumatic supply: 8-10 bar max, dry air
- Extraction: 1x Ø100 mm and 5x Ø80 mm
Spindles: 780 m³/h Edge trimming: 360 m³/h Scrapers: 2x360 m³/h
Max. footprint in working order: 10.80 x 2.40 m
Dimensions for transport (LxWxH): 4.85 x 1.20 x 1.70 m
Weight: 1568 kg
Machine supplied with mounted tools, manual, spare parts list and diagrams.
Success:
Your message has been sent.
Listing
Carquefou
7,371 km
EDGE BANDER - NEW EDGE BANDER
SCMOLIMPIC K 360 T-ER1
Call
Condition: as good as new (ex-display), Year of construction: 2023, machine/vehicle number: AH00004861, functionality: fully functional, operating pressure: 6 bar, temperature: 15 °C, NEW OPTIONAL SEMI-INDUSTRIAL EDGEBANDER
SEMI-INDUSTRIAL WITH SIMPLIFIED CONTROL PANEL
Make: SCM Model: K360 T-ER1 Year: 2023-2024 CE
AH00004861
MACHINING CAPACITIES :
- Panel height: 8 - 50 mm
Thickness: 10 to 45 mm with use of rounding tool
- Length of panel to be clad: 210 to 2500 mm
- Minimum panel width: 90 to 1100 mm
- Roll edge thickness: 0.4 to 3 mm without rounding
max 3 mm with rounding
- Strip edge thickness: max 6 mm without rounding
max 3 mm with rounding
- Edge width: panel thickness +2mm on each side
- Drive (feed speed): 11 m/min
- Workpiece spacing: 600 mm
- Part protrusion from transfer chain (panel protrusion): 30 mm
MACHINE COMPOSITION :
- Reel table
- Predisposition to receive an air-cushion table
- Work table with front extension
- Drive belt: chain
- Non-stick spray unit
- Edge straighteners (2 routers) rpm
Diamond tools
- Gluing unit with interchangeable tray
Pneumatic pre-cutter
Marouflage (pressing) with 3 rollers (1 motorized)
- Chop-saw butt-cutting unit
- Nesting copying top/bottom trimming unit
- Rounding unit
- Radius scrapers
- Straight scrapers
- Edge finishing spray device (Nebulization)
- Textile polishing brush station
Kjdpfx Afsttakhedend
- General power supply: 400v. Three-phase+N+T 50Hz
Options installed on the machine :
- 10.09.98 European safety standards (CE standards)
- 63.05.29 Provision for an eventual air cushion plane at machine inlet
- 62.15.02 "Nesting" copier kit
- 62.12.03 "AAR" anti-stick group
- 62.12.61 Nebulization device for edge finishing
- 62.14.55 Diamond tools H=64 on grinding group - n.2 cuts
- 62.15.06 "SGP-E" glue pot - Instead of the standard glue pot
- 62.15.04 "RC-N" glue scraper group
- 62.12.12 "SP-V" brush group
Machine available : in stock
Success:
Your message has been sent.
Listing
Germany
7,743 km
Edge banding machine SCM Olimpic K360 T-ER1 (2017)
SCMOlimpic K360 T-ER1
Call
Condition: used, Year of construction: 2017, Edge banding machine
Manufacturer: SCM
Type: Olimpic K360 T-ER1
Year of manufacture: 2017
Technical data
- Feed speed: 11 m/min
- Edge thickness: 0.4 - 6 mm
- Control: SCM control panel with display
- Board thickness: 8 - 60 mm
- Power supply: 400 V / 3~ / 50 Hz, 23 A
- Min. workpiece: 140 x 90 mm
Units
Pre-milling
- 2 counter-rotating diamond heads (up to 3 mm removal)
EVA gluing unit
Pressure zone with driven roller + 2 pressure rollers
End trimming unit K-2 (straight / beveled, automatic switching)
Flush trimming
- flush, radius, chamfer
Corner rounding R1/R2
Profile + surface scraper blade
Knsdpfjzuyk Nsx Afdod
Polishing unit
Anti-adhesive liquid system (2 liquids), edge roller feed
Note:
The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.
