Edge banding machine

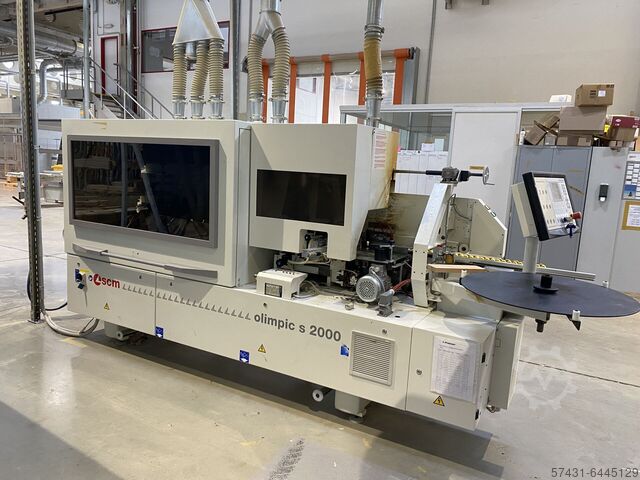

SCM Olimpic S 2000

Condition: used, Year of construction: 2011, total length: 4,000 mm, total height: 1,600 mm, total width: 970 mm, Weight: 1.300 kg Price: On request - Year: 2011 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: AH/115214 - Number of units [pcs]: 6 - └ 1st unit type: Pre-milling unit - └ 2nd unit type: Glue unit - └ 3rd unit type: Cap unit - └ 4th unit type: Rough milling unit - └ 5th unit type: Radius scraping unit - └ 6th unit type: Flat scraping unit - Max. edge band thickness [mm]: 6 - Max. panel thickness [mm]: 60 - Min. panel length [mm]: 140 - Max. feed speed [m/min]: 11 - Voltage [V]: 400 - Current consumption [A]: 23 - Transport dimensions: 4000mm x 975mm x 1600mm (l x w x h) - Transport weight [kg]: 1300kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Knsdpfxswnicko Ac Hef Yorick Diebels

Condition: excellent (used), Year of construction: 2012, operating hours: 730 h, Hebrock AKV3005DK-F Edge Banding Machine with pre-milling, corner copying, and two profile scrapers. Knedpfxstpn Ete Ac Hof Very well-maintained machine from a small business, in excellent condition. Touch-screen interface with PLC control for user-friendly operation; up to 12 operating programs can be saved. Edge thickness (coil): approx. 0.4 – 3 mm Workpiece height: approx. 8 – 53 mm Feed speed: approx. 10 m/min Noise protection hood Extendable workpiece support, special feature extendable up to 950 mm Extraction ports: 80 + 140 mm Units/Equipment: - Quick-change glue pot with glue outlet; two glue pots included (one was used for EVA glue, one for PUR glue). The PUR glue pot is virtually as new, purchased for a single order only. - Manual overhead pressure adjustment with SIKO counter - Manual infeed fence adjustment with SIKO counter - Manual edge thickness adjustment with SIKO counter - Pre-milling unit with Leitz Whispercut diamond cutters, still sharp - Gluing section with automatic edge feed for coil material up to 3 mm - Pressure zone with 4 rollers - End trimming saw - Integrated edge trim collection bin - Multi-profile milling unit, R2, with pneumatic adjustment between thin and thick edge - Corner rounding unit R2, pneumatically adjustable between thin and thick edge; the molding router can also be used for shelf program, rounding only on straight edges, not corners - Radius scraper R2, pneumatically retractable - Glue joint scraper, pneumatically retractable - Hood lock - CE marking - Operating manual A video of the machine in operation can be provided upon request. All indexable inserts on the milling and scraper units have been replaced or rotated, saw blades have been sharpened. The machine is ready for immediate use. Only the diamond pre-milling cutters (Whispercut) have not been replaced but are still sharp. Paintwork has been touched up. The Hebrock AKV series is the predecessor model to the current K series. Machine has only approx. 730 operating hours (glue pot switched on), but the frequency converters have only been switched on for approx. 455 hours. Machine is in very good condition—see original photos. Machine dimensions: approx. 5000 x 1400 x 1550 mm (LxWxH) Weight: approx. 1550 kg The machine can be inspected by appointment at our premises. We only offer machines that are ready for demonstration in our warehouse—see “other offers from this seller.”

Condition: as good as new (ex-display), Year of construction: 2021, functionality: fully functional, overall weight: 915 kg, type of input current: three-phase, input voltage: 400 V, input current: 24 A, input frequency: 50 Hz, Worktable dimensions 3465x710mm, height 875mm Knedpfx Aceuacqzj Hjf Gluing thickness roller edges 0.4 - 3mm Glue-on thickness strip edges up to 5mm, min - max. workpiece thickness 8-50mm min. Workpiece length/width with roller edges 190/110mm min. Length of panel 120mm Feed speed 9 m/min Feed motor 0.55 kW Working air pressure of pneumatics 6.5 bar Suction hood glue container 80mm 2 suction hoods Flush trimming unit 60mm 2 extraction hoods Pre-milling unit 80mm Working temperature 20-190C° Equipment: Pre-milling unit (jointing) Rounding unit (corner copying) Gluing unit, applying and pressing on the edge (self-lubricating glue pot) Trimming unit, for cutting off 90° of the protruding edge at the front and rear Flush trimming unit (joining) Scraper unit Buffing unit Surface scraper Automatic application of the strip edges with edge magazine Kit for quick change of the glue container Device for heating the panel edge Non-stick agent spraying unit Spraying unit for finishing the edge

Condition: used, Year of construction: 2020, functionality: fully functional, workpiece height (max.): 45 mm, edge thickness (max.): 3 mm, type of input current: three-phase, Further technical data: Ball-bearing turntable for edge banding rolls, Ø 740 mm Edge thickness: 0.4 – 3 mm Workpiece height: 8 – 45 mm Extendable workpiece support up to 450 mm Manually adjustable workpiece height m-motion and x-motion PLUS control systems (highest setting repeat accuracy, programmable) Robust processing units in new design, solid machine base, precise extraction system Additional equipment: Surface scraper Spraying unit for cleaning agent LED lighting package Tempora 45.03 Spraying unit for release agent Cross-cut saw unit with 45° travel path and radius processing Knedpfoxdb U Uex Ac Hjf Pneumatic-mechanical infeed lock 75 x-motion PLUS package Tempora 45.03

Condition: excellent (used), SINGLE SIDE EDGE BANDER (Left) Edges (band in rolls) thickness (Min/Max) mm 0,4 / 3 Edges thickness in strips / lippings (min/max) mm 0,4 / 8 (12)* Panels thickness (min/max) mm 8 / 60 Numerical Control "StarTouch" + "Touch 7" Feeding speed m/min 12-18 Top pressure system with rubber belt (C.N.) Spraying unit (Anti-sticking liquid) AAR Knodpfexlqntjx Ac Hef In-feed fence, adjustable by N.C. "EASY SIZE PLUS" Pre-milling Unit (vertical joint trimmers) 2 x Kw Lamps to heat the workpieces side Glueing Unit (P.U.R. Glue + Quick Melt system) "VC/800" - "VC/6" + "AirFusion AF15" Band Pressure zone (N.C. adjustment) Edge coils supporting unit - 1 Snipping (end-cutting) K/SEL Rough Trimming unit RS/K Fine Trimming unit RI / 800 (3 pos.) Multi Function Unit (Profile contour Trimming Unit) “4 EDGE” KIT Spraying Unit (for sliding liquid) Profile edge scraping unit RAS/1000 Glue scraper RCA / 2C Milling grooving unit K-100 (1 x Kw 1,8) 90° Hot Air Heater (to reactivate the color of plastic tape) Panels Return System "SAG" Mod. SPINNER 47 / 63

Condition: used, Year of construction: 2009, Used SCM edgebander model OLIMPIC K1000 Control panel with membrane keyboard Technical data: Min. panel height: 8 mm Max. panel height: 55 mm Min. edge thickness (roll): 0.4 mm Max. edge thickness (roll): 3 mm Max. edge thickness (solid wood): 12 mm Configuration: Strip edge magazine Glue pot capacity 1.5 kg, with independent motor No. 4 pressure rollers with pneumatic feed, first roller with independent motor Edge roll guillotine End trimming unit with 2 independent motors, tiltable 0-15° - each 0.35 KW - 12,000 rpm Overlapping trimming unit with 2 motors, each 0.65 KW - 12,000 rpm - tools with reversible knives Tiltable corner rounding unit for flat/radius finishing; 2 motors each 0.5 KW - 12,000 rpm, electro-pneumatic positioning - tools with reversible knives Electro-pneumatic exclusion of the unit Glue scraper unit Machine length: 4,310 mm Year of manufacture: 2009 Knsdpfx Acjxrndxo Hof CE marked

Condition: used, Lange B90 KFE Edge thickness: 0.4 - 3 / 5 mm Control panel: PLC touch panel Pre-milling unit for workpiece edge preparation before the gluing section Automatic edge magazine for roll materials Teflon-coated quick-change glue pot for hot-melt adhesive granulate Workpiece height: 8 - 50 mm Fine-adjustable glue roller Guillotine shears up to 3 mm for pre-cutting roll material Pressure unit End trimming unit Multi-function milling unit for flush trimming, radius milling, and bevel milling Corner copying unit for head edges up to 2 mm, activatable from the control panel Kjdoxl Aw Tjpfx Ac Hjnf Radius scraper blade Flat scraper blade Buffing unit Spraying device at infeed and outfeed Year of manufacture: 2018 Machine is OPERATIONAL and in GOOD CONDITION Ex works price NET €15,000.00

Condition: new, Year of construction: 2025, Dimensions (L/W/H) 2650x640x1400 mm Weight 700 kg Total power requirement 5 kw Knjdpfxovz E T Hs Ac Hef

Condition: used, machine/vehicle number: 008228, Type of edging: Thin edge, Thick edge Gluing System: EVA Hotmelt Kedpfexfhvzjx Ac Hsnf Max feed speed: 8 m/min Maximum panel thickness: 40 mm Operating Units: 4 nr

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, Brand: SCM Model: OLIMPIC K 500 T/ER-2 - CE Kedpfexnvr Aex Ac Henf Automatic edge banding machine with sanding unit for wooden, veneer, PVC, melamine, ABS edges – suitable for furniture manufacturing, joinery, custom fittings, panels, kitchens, bathroom furniture, and various other applications Technical specifications: Min./max. panel height: 8–60 mm Panel height with corner rounding unit: 10–45 mm Edge thickness: 0.4–8 mm Edge thickness from coil: 0.4–3 mm Minimum panel width: 55 mm Feed speed: 11 m/min Pressure beam with motorized vertical movement Panel support rail Sound-insulated safety enclosure Fluid inlets Components: Anti-adhesive spraying unit with two nozzles – two tanks for anti-adhesion liquid Pre-milling units with two high-frequency motors – H64 mm diamond tools – diameter 100 mm, bore 30 mm, height 65 mm – copying set Gluing unit VC 560 for edge application on panels up to 60 mm – glue pot capacity: 1.5 kg – exchangeable glue pot End trimming unit with two independent motors, each 0.35 kW at 12,000 rpm – motor tilt from 0° to 15° – 2 saw blades, diameter 115 mm – front copying devices Tilting trimming/bevelling unit for removing top and bottom edge overhang – 2 motors at 0.55 kW – 12,000 rpm – tilt range from 0° to 25° – two-position pneumatic set for quick change between thin or radius edges Corner rounding unit with two motors on prismatic guides – for rounding and trimming thin or thick edges – 2 motors at 0.55 kW – 12,000 rpm Edge scraping unit for optimal finishing of ABS/PVC edges with rotary copying and extraction hood, scrap collection cassette Glue scraping unit – removes glue residues from the lower and upper panel surfaces Buffing unit for cleaning and polishing plastic edges – motor 0.25 kW – brush diameter 150 mm Compressed air: 7 bar Overall dimensions: 5500 x 1150 x 1550 (H) mm Weight: 1,780 kg Recently serviced New diamond pre-millers New copying wheels...
