Circular sawing machines

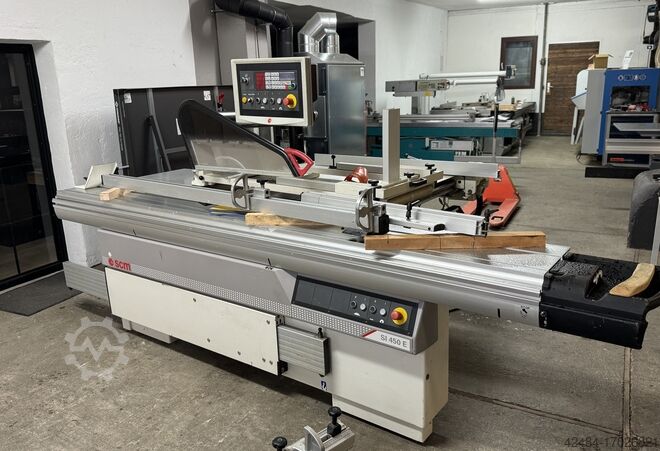

SCM SI450E

Condition: excellent (used), Year of construction: 2005, 3-axis controlled panel saw with parallelogram support table Swiveling control panel above the table Data input via membrane keypad Electronic scoring unit adjustment Automatic parallel fence with adjustment via leadscrew and linear ball bearing guide Parallelogram support table for miter cuts Manual adjustment with angle settings from +50° to -50° perpendicular to the cutting axis with corresponding fine adjustment. Angle detection system using magnetic strip and LCD display. Crosscut stop with 3 LCD displays Extendable support table with roller support Technical Data: Cutting length mm: 3200 Main saw blade diameter mm: 450 Bedoyftzkjpfx Ad Aowl Scoring blade diameter mm: 120 Panel cutting size with extendable stop mm: 3200x3200 Swivel range degrees: 0° / +46° Max. cutting height at 90° mm: 150 Max. cutting height at +45° mm: 130 Saw blade rotation speed rpm: 2500, 3500, 5000 Scoring blade speed rpm: 9000 Extraction port diameter mm: 120 & 100 Main motor power Hz 50 kW: 7.5 Scoring unit power Hz 50 kW: 0.75 Cutting width with parallel fence mm: 1270 Weight approx.: 1180 kg Note on used machines: • Errors in technical details and prior sale excepted. • Stated prices are ex-location, loaded free of charge! • The machines have been cleaned and function tested. • All machines are sold as seen, without any warranty or guarantee. The buyer is welcome to inspect the machines at our premises. • Special agreements are only valid in written form. (We only respond to inquiries including your address & telephone number!)

Condition: used, Year of construction: 1995, Swivel spindle: Yes -5 to 45° Bwjdpfxouzkwzs Ad Asl Height adjustment: Handwheel Swivel adjustment: Handwheel Milling jaw adjustment: manual Height display: mech. counter Swivel angle display: mech. counter Milling stop display: mech. counter Milling spindle diameter: 30mm / new milling spindle Speeds: 3000, 4500, 6000, 9000 Motor power: 5.5 kW Motor brake: Yes, automatic Suction connection: 2 x 120mm Machine length: 2000mm Machine depth: 1400mm weight: 900kg

Condition: used, Year of construction: 2002, used, excellent condition, low hours Manufacturer: SCM Model: SI 450 E Year of manufacture: 2002 CE type-tested Motor: 7.5 kW Steel guides Carriage length approx. 3200 mm Cutting width approx. 1250 mm Max. blade diameter: 450 mm Bedpfeythdcex Ad Ajwl tiltable scoring unit parallelogram safety guard table extension approx. 480 mm electric height adjustment electric tilt adjustment digital display: - height - cutting angle simple mitre gauge dust extraction port D 120 x 100 mm space requirement approx. 3400 x 2400 x 1500 mm Weight approx. 1100 kg Location: 97447 Gerolzhofen, loaded free on truck, unpacked Handover in as-inspected condition, without warranty or guarantee

Year of construction: 2003, condition: reconditioned (used), longitudinal saw for cutting boards 4 meters main engine 400V, 7.5kW Bjdpfxjhbp T Ss Ad Aswl - blade feed motor 400V, 2.2 kW - extending the pneumatic saw - working pressure 6bar - cutting length 4020 mm - cutting height approx. 170mm - machine length 5.5 m - machine width 1.6 m

Condition: used, Year of construction: 2005, power: 7.5 kW (10.20 HP), cutting height (max.): 170 mm, cutting width (max.): 1,100 mm, saw blade diameter: 500 mm, tilt adjustment saw blade: 46 °, height adjustment type: hydraulic, saw blade bore: 30 mm, rotational speed (max.): 5,500 rpm, rotational speed (min.): 2,800 rpm, total length: 3,300 mm, total width: 2,000 mm, total height: 1,800 mm, overall weight: 1,500 kg, Equipment: CE marking, No. 04528 Sliding table saw Martin T 73 BASIC Used, year of construction 2005 Sliding table 3000 mm Maximum cutting height 170 mm Maximum saw blade diameter 500 mm Saw blade bore 30 mm Cutting width 1100 mm Motor 7.5 kW Speeds 2800 / 4000 / 5500 rpm Hydraulic saw blade tilt 0° - 46° Hydraulic cutting height adjustment Circular saw ruler can be lowered Pneumatic saw shaft lock Cross table with fixed angle adjustment Length stop extendable up to 3300 mm Sliding table with stepless locking Integrated contact for controlling the dust extraction system Central lubrication point Transport dimensions approx. 3300 x 2000 x 1800 mm LWH Weight approx. 1500 kg To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment Bjdpfxoyymtdo Ad Aswl Sold as is Technical specifications, condition description, year of construction and scope of delivery according to manufacturer's brochure or previous owner, without guarantee Subject to prior sale For used machines, any warranty is excluded, the following applies: “sold as seen” Terms of payment: Prices plus VAT, payment before collection or shipping Terms of delivery: ex warehouse

Condition: excellent (used), Technical data: Max planing width: 230 mm Max planing height: 130 mm Spindle diameter: 40 mm Number of spindles: 5 1, 4, 5 spindle on a separate engine 2, 3 spindle on one engine Number of upper steel pulling rollers: 4 Number of upper rubber pulling rollers: 3 Diameter of the extraction nozzle: 100, 110, 140 mm Smooth feed adjustment: Feed on cardans Work table lubrication pump 1 smooth roller in the table top Pressure: 6 atm. Bedpfx Adjv Tyg Eo Aewl Electric lifting of the body Power supply: 400 V Total power: 35 kW Overall dimensions: Length: 4860 mm Width: 1640 mm Height: 1670 mm

Condition: used, used, good condition Make Steton Type SC 400 / 3200 CE type tested Motor boosted 6.5 kW Trolley length approx. 3200 mm Cutting width approx. 1300 mm max. blade diameter 400 mm swiveling up to 45° scoring unit parallelogram protection control panel above Rip fence with electrical adjustment Table top extension approx. 400 x 800 mm Electric height adjustment Swivel adjustment electric Digital display: - cutting angle - Rip fence - Rotational speed Extraction connection D 120 / 60 mm Space requirement approx. LxWxH mm 3400x2300x1700 Weight approx. 1000 kg Storage location 97447 Gerolzhofen Bwodjvyt D Dspfx Ad Aol Handover in the current condition as seen - free loaded -

Condition: used, Tilting Blade Circular Saw (for precise angled cuts) Sliding table: 3800 mm Electric adjustment for blade lifting and tilting Cutting capacity Cutting width between blade and parallel guide: 1250 mm Cutting height with Ø 450 mm blade (90°): 155 mm Cutting height with Ø 450 mm blade at 45°: 115 mm Blade tilt: 0° – 45° Main blade Max blade diameter: Ø 450 mm Blade shaft diameter: 30 mm Rotation speed: 3200 / 4000 / 6000 rpm Main motor power: 5.5 kW (7.5 HP) Dust extraction Extraction outlet: Ø 120 mm Scoring unit Scoring blade diameter: Ø 125 mm Scoring shaft diameter: 20 mm Bwodpfsywt Agjx Ad Aol Rotation speed: 8000 rpm Scoring motor power: 0.5 kW (0.75 HP)

Year of construction: 2022, condition: used, Used equipment Year of manufacture: 2022 Features and technical data: - Allows a single operator to easily load panels onto the platform frame and swing them from a vertical to a horizontal position Bwedpfxoyy Tp So Ad Ajl - Suitable for use with panel saws, vertical panel saws, rack storage, or for panel transport between workstations - Swivel frame with two-position locking mechanism (vertical and horizontal) - Table height can be adjusted to the desired working level via foot-operated hydraulic pump - The design with a smooth scissor-lift mechanism ensures the platform is raised and lowered in a perfectly parallel manner - Sturdy roller supports on the lower rail and multiple all-direction rollers for ergonomic and easy handling - Counterweight on the lower frame provides secure positioning and maximum stability when moving the table - Operator pedal for the workstation table is easily accessible at all times - Easy to maneuver thanks to four swivel castors with a diameter of 125 mm - Two castors equipped with parking brakes - Swivel frame can be mounted and dismounted on the platform base frame quickly and easily - Complies with EN 1570-1 safety standards - Load capacity: 300 kg - Maximum table height: 1010 mm - Minimum table height: 400 mm - Swivel frame width: 1800 mm | Length: 1500 mm - Roller diameter: 125 mm - Dimensions: 1200 x 740 x 400 mm - Weight: approx. 80 kg - Swivel frame weight: 10 kg Availability: short-term Location: 63934 Röllbach

Condition: used, Year of construction: 1993, machine/vehicle number: 315 AE 0643 V 02 85, ACMA DM82 – Single-Blade Rip Saw (Délingeuse monolame) The ACMA DM82 is a robust French single-blade rip saw for professional longitudinal splitting of boards and strips in sawmills and woodworking shops. Featuring hydraulic feed and INRS safety approval (Visa No. 315 AE 0643 V 02 85) from 1993, it is ideal for precise wood cutting up to 160 mm height. Cutting length: 4000–5200 mm Cutting height: 140–160 mm Cutting width: 370–600 mm Saw blade Ø max.: 600 mm (min. 450 mm) Saw motor power: 9–13.2 kW (12–18 HP), 380 V 3~ RPM: 3000 rpm Hydraulic motor: 2.2 kW Table height approx.: 820 mm Bwodpoyrnxksfx Ad Asl Dimensions (L×W×H): 4800–6600 × 1500–2300 × 800–1500 mm Weight: approx. 1350 kg
