Throughfeed drilling machine

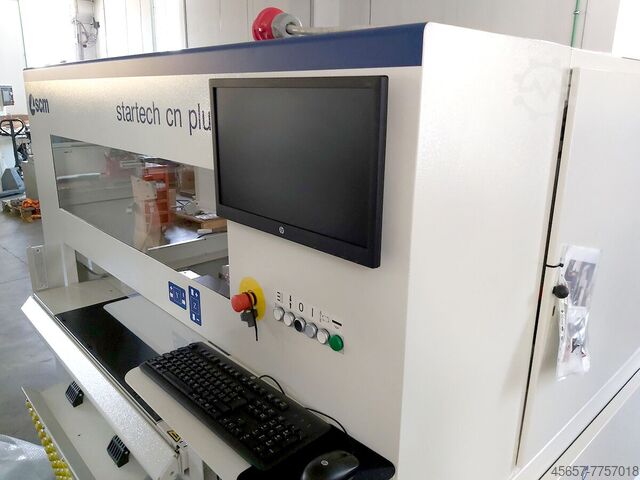

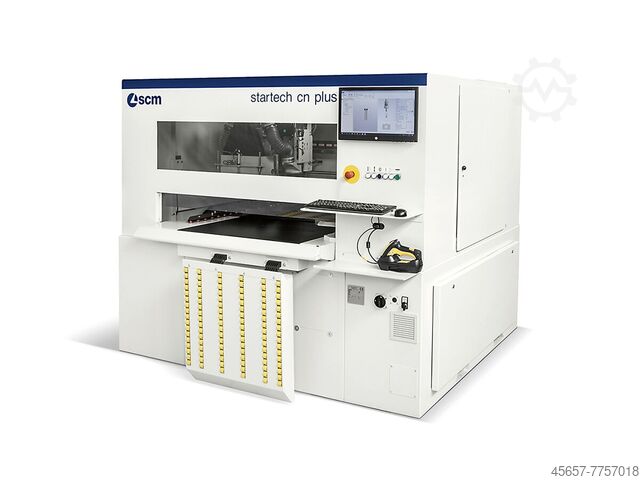

SCM Startech CN PLUS-R (BRAND NEW)

Condition: excellent (used), 5-axis Year of production: 2018 Cgjdpfxjun Rqge Af Hsu Machine working area dimensions for the X and Y axes: X 2100 mm Y 3100 mm Head stroke in the Z axis: 1250 mm Machine travel speed X, Y. Z: X: 80 m/min Y: 80 m/min Z: 12 m/min Vacuum table BECKER pump HITECO spindle in the HSK 63F standard Price of a new machine: approx. 135.000 €

Condition: good (used), Year of construction: 1995, machine/vehicle number: 0540/98, functionality: fully functional, Manufacturing number: 0540/98. Year of manufacture: 1998 ,. Capacity: 400 tons. Stroke length: 300 mm. Stroke: 10-40 / min. Slide adjustment 300 mm. Installation height: 700 mm. The table measures 1600 x 1300 mm Net weight: 45 tons. Gable opening: 1600 mm. Exterior dimensions 2 x 3 x 6 meters. Codpjicbbzofx Af Hegu Control system MEAB. Coil feeder / straightener iRON RNE 50B / 11. Decoiler iRON SA6000 max 700 mm.

Condition: used, CNC machining center BIESSE Rover C 6.50 CONF.2, year 2007 Working area: approx. 140 × 460 cm Machine dimensions: 300 × 650 cm Weight: approx. 6,100 kg Two working heads Tool magazine: 22 positions Vertical drilling spindles: 28 pcs Horizontal drilling spindles: 12 pcs Price negotiable, available immediately. Cgjdpfsw Rpd Sox Af Hsu Price is without VAT.

Condition: good (used), Year of construction: 2006, functionality: fully functional, travel distance X-axis: 2,500 mm, travel distance Y-axis: 920 mm, travel distance Z-axis: 820 mm, controller manufacturer: Heidenhain, controller model: iTNC530, total height: 2,950 mm, total length: 6,000 mm, total width: 3,800 mm, table width: 900 mm, table length: 3,100 mm, rotational speed (min.): 20 rpm, rotational speed (max.): 18,000 rpm, overall weight: 25,000 kg, spindle speed (min.): 20 rpm, spindle speed (max.): 18,000 rpm, coolant supply: 40 bar, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, X-axis travel: 2500 mm Y-axis travel: 920 mm Z-axis travel: 820 mm Table size: 3100 x 900 mm Spindle nose: SK/ISO40 Spindle speeds: 20 - 18.000 rpm Toolchanger: 30 pockets Controller: Heidenhain iTNC 530 Featured with: - Chipconveyor - Cooling through spindle 40 Bar - ISO40 tools - Machine manuals Country of origin: Germany Motor power: 35 KW Cgsdpsyac Tlofx Af Hou Machine LxWxH: 6000 x 3800 x 2950 mm Machine weight: 25.000 kg

Condition: good (used), Year of construction: 2002, operating hours: 18,000 h, CNC MULTITASKING LATHE MORI SEI MOD. MT 2000 SZ Csdsu Sg Auspfx Af Hsgu Main Spindle Kw 22 6,000 RPM X/y/z/b Travels: 565 - +/- 80 - 1077 - +/- 120° Milling Head Capto C6 6,000 RPM Motorized Lower Turret 12 Stations Tool Magazine 40 Posts Year 2002

Condition: good (used), Year of construction: 2011, machine/vehicle number: 2212.287, Automatic panelsaw Schelling Typ:FH 6 430 Maskin nr:221.287 År:2011 Panel beam saw Schelling with automatic, rear-feed,lifting table. For sawing board material, chipboard, MDF, Plywood, Board, Laminate etc. Techn info: Software MCS Evolution 2.0, SPS, Soft-SPS-Siemens WinAC Operating system WINDOWS XP PC with keyboard and mouse TFT monitor 17" Cutting length 4300mm, automatic detection of the start of the plate Cutting width 4300mm Machine accuracy of the cut length 3m +-0.1mm Positioning accuracy measured at input +-0.1mm Max diameter saw blade 460mm, spindle 30mm Pre-scoring blade 200mm, spindle 20mm motor operation is set from the control console Max panel thickness 120mm Panel stack aligner Main saw blade motor 27kw Saw blade over table 135mm Safety curtain Air cushion table with 3pcs air ball nozzles, radial ventilator fan Table sizes 2650x850mm 620x850mm 2650x2550mm Pressure beam with automatic adjustment of pressure to cut length and package height Package straightener before and after the pressure beam Max package height 120mm (incl. sum of curvature and board thickness tolerance) Pusher with 12 grippers Max clamp opening (gripper) 133mm Min-max force package straightener 400/2000N Speed saw carriage forward 6-150m/min Speed saw carriage back 150m/min Forward feed speed (pusher) up to 25m/min (according to EC Europa EN1870-13) other countries 80m/min Speed feeding back up to 80m/min Push-off device 3 pcs Lift table length x width 4350x2550mm Hydraulic unit Standard version 1600mm lifting height 1.25/2.5m/min raising speed, 1.25/5m/min lowering speed Maximum load 1200 kg/m2 total 9 tons Roller track driven rollers, frequency controlled for stack on lifting table 4100x2600mm Max stack weight 6500 kg Max stack length 1060mm Slots for forklift 4 pcs, distance in the middle 1200mm, slot width 300mm Light curtain for personal protection Roller conveyor driven for package frequency controlled input to lifting table left 5600x2600mm max load 6500kg Roller conveyor driven for packages frequency controlled input to lifting table right 5600x2600mm max load 6500kg Slots for forklift 2 pcs, center distance 900mm, slot width 400mm 2 positioning stops with roller for stack alignment Light curtain (double beam) for personal protection Roller table after saw depth 4300mm, free-running ployamide rollers Angle stop at the rolling table Infeed guide two-lane (beam length 7200mm) 2-sided hardened precision guides rack and pinion drive, two-sided Input carriage (pusher) gear rack servo drive, non-contact measuring system Gripper, (scissor clamps) in pusher 12 pcs Automatic adaptation of the clamping force to the package height (progressive clamping force) can be set to 0 Cedotk It Sopfx Af Hsgu Pusher for panels thickness greater than 6mm,material thinner than 6mm is fed manually Central cleaning system feed trough (pusher) Compressed air 6-8 bar, approx. 1600l/min Power 38 kw, 70 A. 3x400 volts, 50 Hz, operating voltage 24 VDC Dust extraction 4000m/h, air speed 30m/s Diameter connection 80mm (angle connection), 120mm /pressure beam), 150mm (sawdust channel) Total setup area without driven roller conveyors including protective grid approx: 11650x7300mm Driven roller tracks left-right 5500+5500mm Stock no: 2002125BXACEO Subject to incorrect technical data presented

Condition: used, Swing Diameter Over Bed: 400 mm Swing Diameter Over Longitudinal Slide: 350 mm Distance Between Centers: 610 mm Travel Limit: 240 mm Suggested Workpiece Diameter: 200 mm Cgodoxg Nd Aepfx Af Heu Max Longitudinal Travel: 560 mm Machining Length: 550 mm Max Cross Travel: 40 mm + 120 mm Height of Spindle Axis from Floor: 1135 mm Programmable Spindle Speed Range: 40 to 4000 rpm Spindle Bore Diameter: 52 mm Spindle Interior Cone: MK 6 Slide/Bed Slope: 45/45° Turret Positions: 12 Tools Main Motor: 15 kW Control: Fanuc 6T Equipped with: See photos

Condition: used, Year of construction: 2012, operating hours: 9,974 h, total height: 2,700 mm, total length: 7,700 mm, total width: 2,420 mm, Empty weight: 7.390 kg CNC machining centre SCM Morbidelli M-600 5-axis machine Year of construction 2012 Machine no. AA2/002032 Working distance X-axis 5020 mm Working distance Y-axis 1680 mm Working distance Z-axis 250 mm Tool positions 36 Vertical drilling spindles 24  Software SCM XILOG MAESTRO SCM PRISMA K SCM TTS system Milling spindle liquid-cooled SCM TecPad MORBIDELLI TV Matic SCM PRO-SPACE SCM RAPID 12 SCM RAPID 24 Including vacuum pump Capacity 250 m3/h Disassembled for transport Weight 7450kg - Details: Csdpfx Afjwnhcce Hsgu - └ Description: Machine gives malfunction spindle - Year: 2012 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: AA2/002032 - Operating hours: 9974 - Number of milling spindles [pcs.]: 1 - └ Milling spindle 1: - - Number of controlled axes [pcs.]: 5 - Type milling table: Beam table - Drilling unit present: Yes - └ Horizontal drill spindles [pcs.]: 6 - └ Vertical drilling spindles [pcs.]: 24 - Saw unit present: Yes - Tool changer positions [pcs.]: 36 - Vacuum pump present: Yes - └ Number [pcs.]: 1 - └ Brand: Becker - └ Capacity [m³/h]: 250 - Working range X [mm]: 5020 - Working range Y [mm]: 1680 - Z-axis working range [mm]: 250 - Transport dimensions: 7700mm x 2420mm x 2700mm (l x w x h) - Transport weight [kg]: 7390kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Glenn Smeets

Condition: good (used), drilling depth: 1,500 mm, feed length X-axis: 2,000 mm, feed length Y-axis: 1,300 mm, feed length Z-axis: 1,500 mm, Manufacturer: TBT deep drilling technology Type: BW 250-S Control: SIEMENS 840D Year of manufacture: 2007 Drilling, Milling, Tapping for heat exchanger bases and plates Swivable A Axis + 25 to - 15 Degrees Filtration and Coolant system 1000 L Cip conveyor 2000 x 1200 height out put Milling tool changer Tower Station 20 positions Capacity ELB Drilling 3 - 35 mm Capacity Milling 250 ccm/Min Feed rates all axis 15,000 mm/Min X-Y-W-Z Cutting hours approx. 15,000 Large tooling package Specifications Metric US Standard Max. Drill Ø steel 40 mm Cgedjv A Uw Djpfx Af Hou Drilling depth 1500 mm X - axis 2000 mm Y - Axis 1300 mm Z-axis 1500 mm W-axis 750 mm Table load 15000 Table dimensions / L x W or ø 1600 x 1200 mm Spindle mount HSK 63 Mk Spindle power 11 kW Speed 8000 Rpm Dimensions (estimate) Length 7200 mm Width 7800 mm Height 4250 mm Weight 23000 kg Please note: The information on this page is believed to be accurate and is provided by us and, where possible, from the manufacturer. The information is provided in good faith but accuracy cannot be guaranteed. Accordingly, it will not constitute a representation or contractual terms. We recommend that you check all important details.

Condition: excellent (used), Year of construction: 2018, functionality: fully functional, Double table machining center Working range X 2,590 mm Working range Y 2,260 mm Working range Z 400 mm Number of milling spindles 2 Liquid-cooled spindle Main motor 19.2 kW Max rotational speed 24,000 rpm Aggregate heads 4 C-axis Tool clamping system HSK-F63 Tool change positions central magazine 24 Csdpfsuqw E Nsx Af Hegu Tool change on each head from 12 positions Boring heads vert. 20 (for each head) Horizontal boring heads X 8 Horizontal boring heads Y 8 Blade for grooves in X, in Y 2 Platens Number 4 360 m³/h vacuum pumps T Jet system for chip blowing Nesting Manual labeling Bar code reader Tool length measurement Software BIESSE BIESSEWORKS ADVANCED, BIESSE B_NEST Weight 17,900 kg
