Lathe - cycle-controlled

SEIGER SLZ 570/2

Condition: used, CNC 3+2 axis vertical machining center DECKEL MAHO type DMU 35 M CNC control SIEMENS 810D with ShopMill Manufacturer no. 11065353554 Year of manufacture 2001 Travel paths: X: 350 mm, Y: 240 mm, Z: 340 mm Table movements: C-axis: 360° Swivel range: +105° / -15° Universal swivel - rotary table: 400 x 290 mm, center hole 30H6 Table load: max. 100 kg Distance spindle nose - table: min. 145 mm to max. 485 mm Feed rate: 5,000 mm/min Rapid traverse (X / Y / Z): 5 m/min Input resolution: 0.01 mm Total power requirement: 15 kVA Speed range - main spindle: 20 - 6,300 min/-1 Drive power - main spindle: 6.3 / 10 kW (100% / 40% ED) Torque: max. 55 / 80 Nm Tool holder: SK 40 DIN 69871 Pull bolt: DIN 69872 or ISO 7388/2 Type B Interface: Serial RS232C, LAN (RJ45) Power connection: 400 volts, 50 Hz, 15 kVA Compressed air connection: 6 bar - CNC control Siemens Sinumerik 810D with ShopMill V05.03.22, NCU 03.03.34-CCU1E, MMC103 - 3-axis controlled (X, Y and Z axis) - Manual swivel rotary table, C axis = table rotation 360°, B-axis = swivel range +105°/ -15° - direct path measuring system for all 5 axes - electronic handwheel - spindle drive via servo motor with toothed belt and 2 gear stages - fully protected cabin with sliding door - swiveling control panel Dujdpfx Adjvt D D Uj Nst - coolant nozzles on the vertical head - chip tray with coolant container and cooling lubricant pump - work area lighting - documentation available space requirement L x W x H 2000 x 2000 x 2100 mm weight 1750 kg good condition

Condition: ready for operation (used), Rotation diameter over bed/slide: 560mm/300mm, max. workpiece weight between centers: 2500kg, max. workpiece weight in chuck: 800kg, center width: 1000mm, machining length: 980mm, feed: 8m/min, bed width: 433mm, tool positions: 8, tool holder: VDI40. Machine dimensions X/Y/Z: approx. 3000mm/2300mm/1800mm, weight: approx. 3700kg, control: Siemens 810D Manual Turn. Documentation available. On-site inspection is possible. Dodpfxswynvts Ad Nsut

Condition: ready for operation (used), Year of construction: 2000, operating hours: 27,218 h, spindle speed (max.): 3,600 rpm, travel distance X-axis: 210 mm, travel distance Z-axis: 930 mm, overall weight: 2,300 kg, controller manufacturer: HEIDENHAIN, controller model: TNC 410/426, positioning accuracy: 0.003 mm, swivel angle C-axis (max.): 360 °, number of axes: 3, This 3-axis SPINNER MT 500/1000 AT was manufactured in 2000. It features an X-axis travel of 210 mm, and Z-axis travel of 930 mm. The machine includes a robust table size of 520 x 900 mm with a load capacity of 400 kg. If you are looking to get high-quality machining capabilities, consider the SPINNER MT 500/1000 AT machine we have for sale. Contact us for further details. • Machine/Mechanic MT500-1000 • Travel X-axis: 210 mm • Travel Z-axis (Multifix holder + manual chuck): 930 mm • Travel Z-axis (Multifix holder + hydr. chuck): 930 mm • Travel Z-axis (Turret + manual chuck): 930 mm • Travel Z-axis (Turret + hydr. chuck): 930 mm • Travel C-axis: 360 degrees • Spindle clearance 45 mm with hydraulic chuck: 3600 rpm • Spindle clearance 57 mm with manual chuck: 3600 rpm • Tool system Haase quick-change holder: 1 tool unit • Tool system Turret VDI 30: 12 tool units • Ball screw pitch in X: 5 mm • Ball screw pitch in Z: 10 mm • Rapid traverse X: 15000 mm/min • Rapid traverse Z: 20000 mm/min • Feed rate X + Z: 0-4000 mm/min • Feed force X-axis: 1382 daN • Feed force Z-axis: 609 daN • Tensile force hollow clamping cylinder: 145 daN/bar • Manual chuck Ø 200mm: 3 jaws • Hydraulic chuck Ø 210mm: 3 jaws • Coolant tank volume: 75 l • Coolant pump flow rate: 30 l/min • Coolant pump pressure: 1.4 bar • Max. positioning scatter: 3 µm • Max. backlash: 2 µm • Positioning uncertainty: 2 µm • Max. circularity error on workpiece: Duedoyxrndepfx Ad Nst

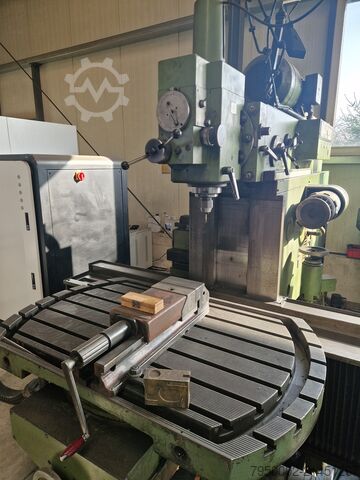

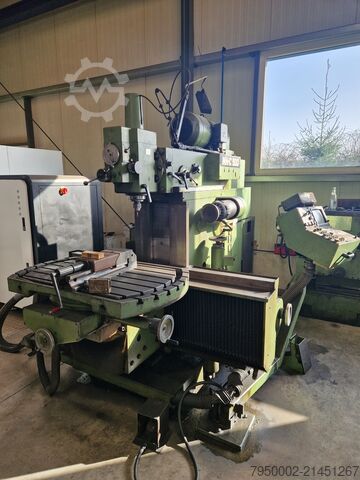

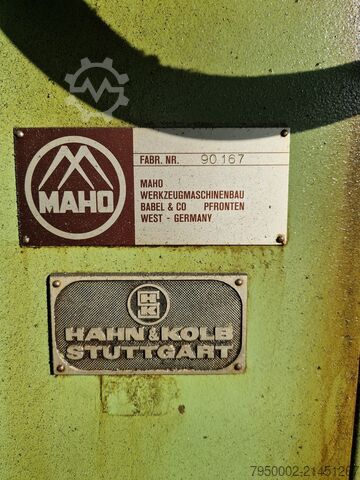

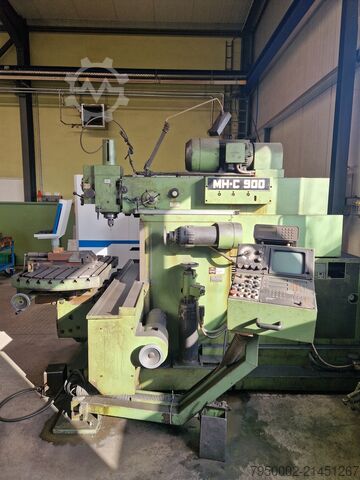

Condition: excellent (used), functionality: fully functional, We are offering this very well-maintained MAHO MH-C 900 milling machine. Duodpfjyryudex Ad Njt Factory number: 90167 If you have any questions or require further information, please feel free to send us a message or give us a call.

Condition: excellent (used), Year of construction: 1993, functionality: fully functional, Specifications Manufacturer MONFORTS Model RNC4 Year 1993 Description Dedjvk E A Tjpfx Ad Nout WE OFFER AN VERY NICE CONDITION MONFORTS CNC LATHE INCLUDING COMPLETE TOOLINGS DRAWERS FOR TOOLS MACHINE HAS LIVE TOOLS , DRIVEN TOOLS MACHINE IS CONECTED ON POWER TECHNICAL INFO: Diameter 420 mm Distance between centers 600 mm CNC system Control System F Tools 12 positions Cross travel 250 mm Longitudinal travel 620 mm Hole through spindle 65 mm Spindle speed 70 - 4000 RPM Motor power 18,5 HP Weight 7500 Kg
