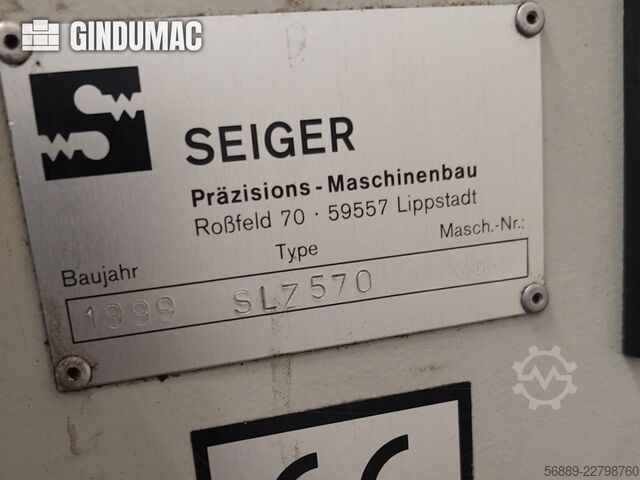

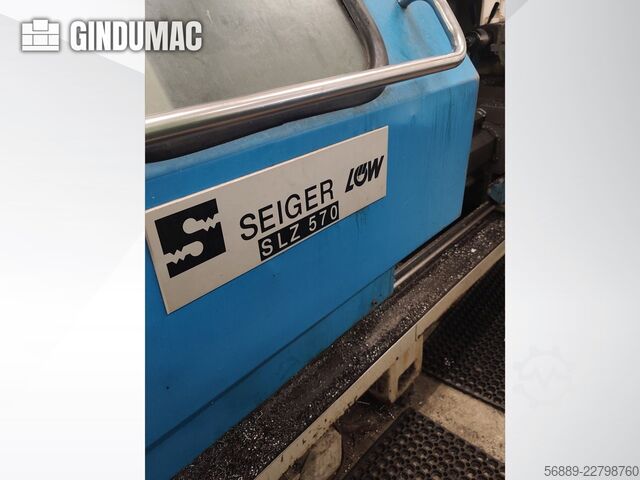

Lathe - cycle-controlled

SEIGER SLZ570

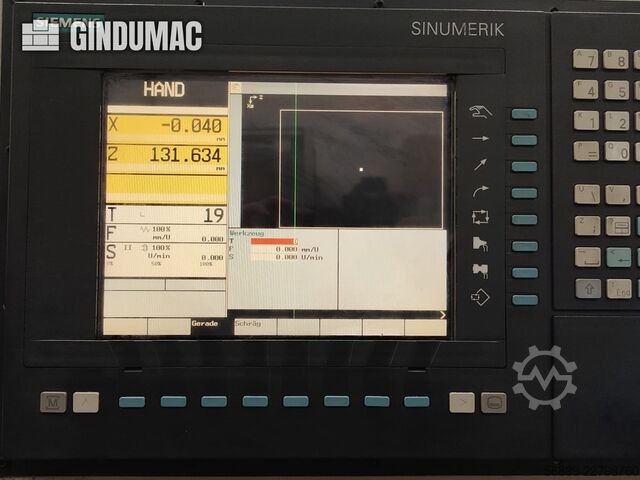

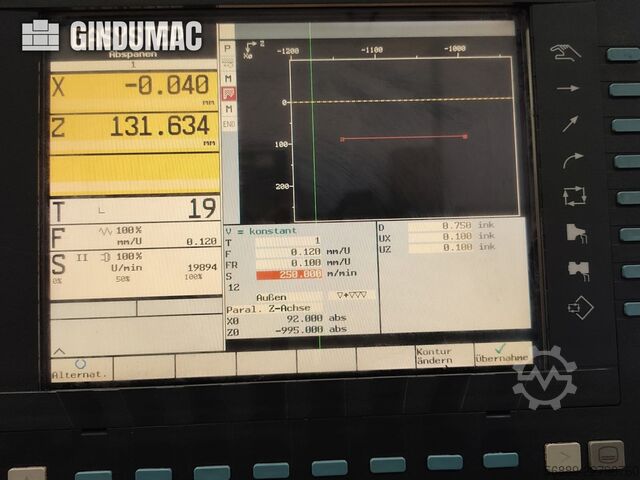

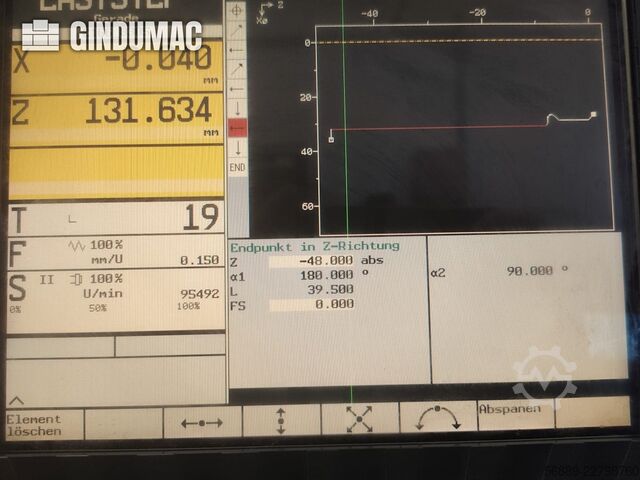

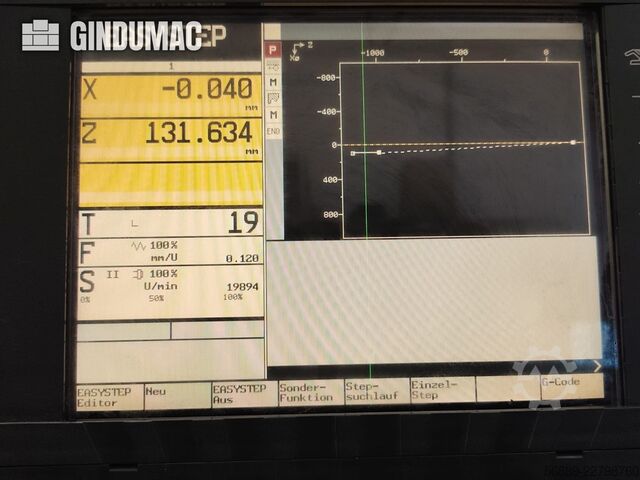

Condition: ready for operation (used), Year of construction: 1999, operating hours: 16,000 h, spindle speed (max.): 3,000 rpm, travel distance X-axis: 260 mm, travel distance Z-axis: 2,000 mm, controller manufacturer: SIEMENS, controller model: SINUMERIK, number of axes: 2, Horizontal turning machine manufactured in 1999. This SEIGER SLZ570x2000 features a swing over bed of 570 mm and a turning length of 2000 mm. It is equipped with a Siemens SINUMERIK ManualTurn control unit and offers a spindle speed range of 1-3000 rpm. If you are looking to get high-quality turning capabilities, consider the SEIGER SLZ570x2000 machine we have for sale. Contact us for further details. - Swing Over Bed: 570 mm- Swing Over Cross Slide: 340 mm- Gearbox / Spindle Speed Range: 1st gear 1-600 rpm, 2nd gear 1-3000 rpm- Torque: 1400 Nm (1st gear)- Mounted Chuck: Schunk Rota S 315 manual lathe chuck- Accessories available for an additional charge: 11 unused Schunk RotaS500 paraholders, new Bruckner tip Technical Specification Laodpfxoz D Eqks Abzeg Counter Spindle No Driven Tools No

Condition: new, Year of construction: 2025, operating hours: 24 h, functionality: fully functional, DOLFİN-PYM2 series parts washing machines are industrial purposed parts cleaning devices that are used before and after revision, particularly in repair and maintenance services. Lsdpfjv Sa I Tex Abzeag While the parts that are placed in the device are rotated on their own axis by means of the washing basket, pressurized detergent hot water is sprayed. With the pressure, temperature and chemical effect, all oil and contamination on the part is cleaned. Since Dolfin Parts washing machines operate as closed loop, new water and new detergent are not used every time. While washing is performed for several times with the same tank, all the dirt remains in the washing cell. With this feature, it protects both nature and employees. Due to its high efficiency and performance, saves energy, water and labour. It works automatically in accordance with the temperature and time values that are set during operation. In order to load, particularly the heavy items into the washing basket or to remove them from the basket, the washing basket can be taken on a carrier trolley, in other words, from the device when required. It can be transferred to any point of the workshop with this trolley.

Condition: good (used), Year of construction: 2000, functionality: fully functional, turning diameter 570 mm turning length 2000 mm control Heidenhain TURN PLUS centre height 265 mm Laedjzxpxqjpfx Abzsg rapid travel - longitudinal/face 10/7 m/min spindle turning speed range 1-2500 U/min weight of the machine ca. 3,6 t dimensions of the machine ca. 5,5 x 2 x 2 m Additional information Equipment: Heidenhain TURN PLUS CNC control 3-jaw manual chuck Multifix tool holder 3 steady rests

Condition: used, Year of construction: 2004, functionality: unexamined, machine/vehicle number: 4330, spindle bore: 63 mm, spindle speed (min.): 1 rpm, spindle speed (max.): 2,500 rpm, total length: 2,800 mm, total width: 1,800 mm, total height: 1,400 mm, type of input current: AC, spindle motor power: 16 W, overall weight: 3,600 kg, distance between centers: 1,000 mm, Manufacturer SEIGER Präzisions-Maschinenbau Type SLZ 570 E Year of manufacture 2004 Serial No. 4330 Cycle turning machine / CNC high-performance turning machine with Siemens SINUMERIK control. Description including scope of supply and condition report Used cycle turning machine for chuck and shaft machining. The machine features a controlled main drive, servo-driven feed axes, and a Siemens SINUMERIK control with cycle turning function. The machine comes from industrial use and is in well-maintained, used condition. Age-related and usage-related signs of wear are present. Scope of supply according to existing equipment: • 3-jaw chuck Ø 250 mm • Quick-change tool holder with tool holders • Coolant system • Machine light • Fixed and traveling center MK5 • Fixed steady rest (12–150 mm) • Traveling steady rest (12–125 mm) • Various tool holders and accessories • Documentation, as available Technical data • Distance between centers: 1,000 mm • Swing over bed: 570 mm • Swing over cross slide: 340 mm • Bed width: 350 mm • Tool holder: 25 x 25 mm • Spindle bore: 63 mm Lajdpfx Abjzwf Avozeg • Main drive: 12 / 16 kW • Speed range: 1–2,500 rpm • Max. torque: approx. 1,600 Nm • Servo drive for longitudinal and cross axes • Rapid traverse: 10 / 7 m/min • Tailstock MK5, quill stroke 160 mm • Siemens SINUMERIK control with color monitor • Operating voltage: 400 V / 50 Hz Shipping dimensions length, width, height (mm) approx. 2,800 x 1,800 x 1,400 mm Shipping weight kg approx. 3,600 kg

Condition: good (used), Manufacturer: WMW Zeulenroda Type: PYE 160 SS Year of manufacture: 1980 C-frame construction Die height 850 mm Thickness bolster plate 100 mm Throat C side 360 mm Specifications Ljdpfswp Nv Hox Abzeag Metric US Standard Capacity 160,000 Table length 1,250 mm Table width 600 mm Ram stroke 500 mm Starting speed 100 mm/min Working speed 10 mm/min Return speed 125 mm/min Power 22.5 kW Dimensions (Estimate) Length: 2,150 mm Width: 1,250 mm Height: 3,600 mm Weight: 7,500 kg Please note: The information on this page has been provided to the best of our knowledge and, where possible, from the manufacturer. The information is given in good faith, but accuracy cannot be guaranteed. Accordingly, they do not represent a warranty or contract terms. We recommend you check all important details.

Condition: used, Year of construction: 1998, turning diameter 570 mm turning length 2000 mm control total power requirement 15 kW weight of the machine ca. 3,5 t Laodpfxeugawfo Abzsg dimensions of the machine ca. m

Condition: used, Year of construction: 1993, Technical details: tube diameter: 80 mm tube diameter min.: 6 mm control for program: Gelma MM-1 tube pipe draw up length: 1800 mm weight of the machine ca.: 0,232 t Lasdpfxju Ibyyj Abzeg dimension machine xH: 1,9 x 0,7 x 1,3 m Semi-automatic PIPE BENDING MACHINE Operating modes are manual but also semi-automatic Application: for multiple bending of pipes The swivel unit with bending preselection for 3 different bending angles in single and automatic mode. The machine is currently equipped with a stop bar for tube size Ø 10mm for 6 angle settings. The bending machine is movable/adjustable. Equipment/accessories: 6 cam rods/stop rods 6 control disks Bending tool for Ø 12mm *

Condition: ready for operation (used), Rotation diameter over bed/slide: 560mm/300mm, max. workpiece weight between centers: 2500kg, max. workpiece weight in chuck: 800kg, center width: 1000mm, machining length: 980mm, feed: 8m/min, bed width: 433mm, tool positions: 8, tool holder: VDI40. Machine dimensions X/Y/Z: approx. 3000mm/2300mm/1800mm, weight: approx. 3700kg, control: Siemens 810D Manual Turn. Documentation available. On-site inspection is possible. Lsdowynvtopfx Abzjag

Condition: good (used), Year of construction: 2008, turning length: 12,000 mm, spindle motor power: 60,000 W, total height: 3,800 mm, total length: 23,000 mm, total width: 7,600 mm, swing diameter over cross slide: 1,520 mm, turning diameter over bed slide: 1,140 mm, workpiece weight (max.): 20,000 kg, overall weight: 58,000 kg, Equipment: documentation/manual, CNC Lathe Giuseppe Giana - GGH 1100/760 x 12.000 CNC MACH-ID 9439 Make: Giuseppe Giana Type: GGH 1100/760 x 12.000 CNC Control: Siemens 840 D-SL Year: 2008 3 bed way construction Bed width 1100 mm 3 x C-Type Steady rest on lower base with in feed 2 x Fixed steady rest 300 - 800 mm with 5 ton 2 x Chip conveyor 4 Chuck 1000 mm Barafuldi 4 way turret head Swing over bed Ø: 1520mm Swing over cross slide Ø:1140mm DBC Turning Length: 12000mm Spindle bore: 155mm Spindle power: 60kW Bed width: 1100mm Tailstock spindle Ø: 310Ø Stroke pinole: 300mm Spindle taper: 1:4 taperMk Workpiece weight: 20000 Power: 80A Speeds / ranges: 0-800Rpm Feed rate X-Axis: 0-8000mm/min. Feed rate Z-Axis: 0-8000mm/min. Length: 23000mm Ljdpfx Ajyl Uh Sobzoag Width: 7600mm Height: 3800mm Weight: 58000kg

Condition: ready for operation (used), functionality: fully functional, turning diameter over cross slide: 550 mm, spindle bore: 77 mm, turning diameter over bed slide: 800 mm, GURUTZPE lathe model Super AT 400/6000, 6,000 mm between points, turning on bed 820 mm, on carriage 550 mm, shaft diameter 76,5 mm, 16 speeds from 9-500rpm, has fixed rear Steady , , has 4 independent claws chuck diameter 800mm, , very good condition in general Ledjwd D Itopfx Abzoag
