Front-Loading Panel Saws

SELCO SEKTOR 470

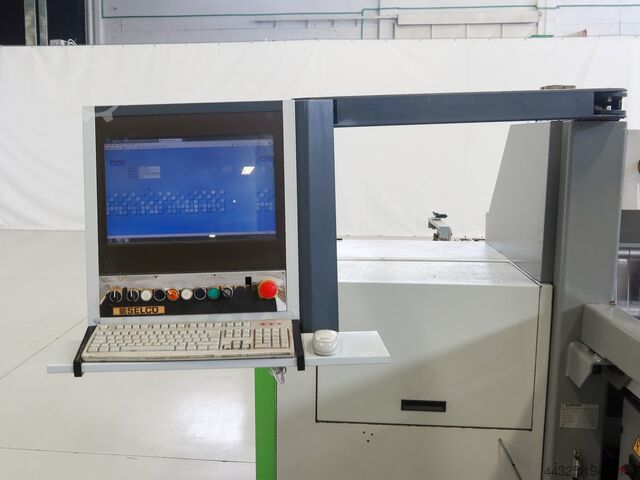

Condition: used, Year of construction: 2009, Used machine Year of manufacture: 2009 Single-sided automatic edge banding machine with CNC control, 10" touch screen Industrial conveyor chain 1 1/4" Joint milling unit FI-502 Glue application unit VC-710 End trimming unit IN-801 Top and bottom flush trimming unit RS-100 2 motorized multifunction profiling units - contour milling unit CR-202 (FAST system with 4 standard positions) Scraper unit RBK-503, NC 2 positions Flat scraper RCC-701 Workpiece thickness: 10-65 mm Max. workpiece height with contour milling unit (depending on profiles): 35-65 mm Edge thickness from roll: 0.4-3 mm Edge thickness from strip material: 0.4-22 mm (depending on unit) Minimum workpiece length: 140 mm Minimum workpiece width (with length 140 mm): 85 mm Minimum workpiece width (with length 250 mm): 50 mm Feed speeds: 10-14-18-20 Central extraction connection: 200 mm Extraction connection, edge banding: 80 mm Extraction connection, joint milling: 120 mm Glue pot capacity: approx. 3 kg Heat-up time at half fill: approx. 10 min Length: 6000 mm Width: 1780 mm Height: 1770 mm Machine is offered without the workpiece return unit shown in the pictures Availability: short-term Dodpfx Adsv R Nk Uo Njut Location: Flörsheim

Condition: excellent (used), For panels measuring 5600 x 2600 (2700 mm), thickness from 2 mm to 60 mm N° 2 double-deck infeed roller conveyors, 1 x 6.000 mm long and 1 x approximately 3.800 mm long Hydraulic lifting table (5600 x 2700 mm ca.) System with rubber wheels (11 top + 11 bottom) for panel pressure/feeding Sliding bridge with 45 suction cups and 5 supports (for panel stack alignment) Duodpfsxvc N Dox Ad Nst 1st Rear - Pusher, with 11 clamps Rotating table (90° panel rotation) with plastic wheels 1st Panel Saw AH8 580 - Max cutting width mm 5600 (Max blade projection mm 165) Scoring Unit (max. diameter saw / power) mm 200 ca. (Kw 2,2 ca.) Main Sawing Unit (max. diameter saw / power) mm 520 ( Kw 32) Adjustable speed of the saw carriage (m/min) 0 - 150 Sliding crosspiece with 7 pushers for cut panels With 4 supports (for panel stack alignment) and 3 motorized chains 2° Rear - pusher, with No. 25 (27) clamps/grippers 2nd Panel Saw - Max cutting width mm 2700 (Max blade projection mm 165) Scoring Unit (max. diameter saw / power) mm 200 ca. (Kw 2,2 ca.) Main Sawing Unit (max. diameter saw / power) mm 520 (Kw 32) Adjustable speed of the saw carriage (m/min) 0 - 150 Waste evacuation system with grinder VECOPLAN (Kw 55) Plastic wheels coated table for cut panel output Stacking system for cut panels with N° 2 front support tables with air blowing system 400 x 6300 mm + N° 8 lifting tables (4 are 1300 x 1600 mm and 4 are 1300 x 1410 mm) - Total power KVA 130
