Colour Sorter and Polymer Sorter

SESOTEC Colour Sorter and Polymer Sorter

Two Machines
Flake Purifier+ C 512 HR Color Sorter & Flake Purifier+ N 1024 Sesotec Polymer sorter

Specs on Flake Purifier+ C 512 HR Color Sorter
Refurbished in 2021
Technical Data
Throughput up to (kg/h) Up to 3.8
Suitable grain sizes 2 - 20 mm
Power (max. KVA) 3.4
Temperature range +5"C to + 40"C
Weight 1300 to 1500 kg
Electrical connection Power connection cable 5x4 mm2
Electric fuse 16 A
Protection class IP 54
Rated current (max. A) 5

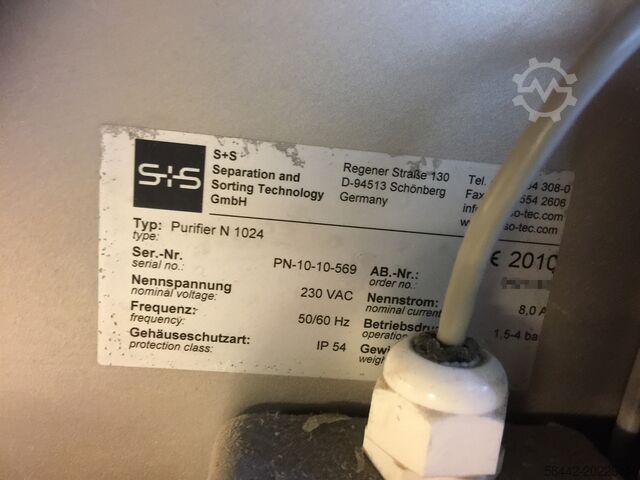

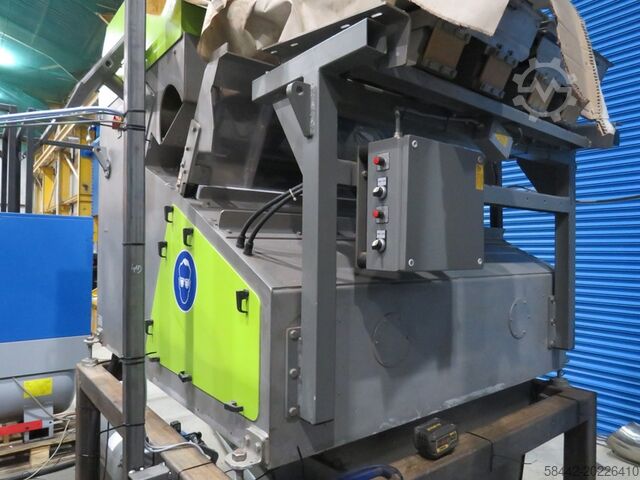

Specs on Flake Purifier+ N 1024 Sesotec Polymer sorter
Technical Specifications
Cedpfxexlknms Agmerh
• Working width: 1024 mm
• Nozzle grid / valve spacing: 3.2 mm

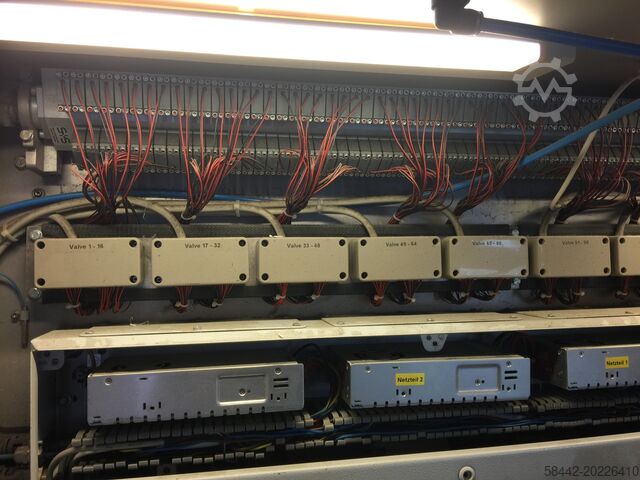

• Number of valves: 160 high-speed air-eject nozzles
• Detection resolution: 2 mm (optical) / 16 mm (metal)
• Metal detection sensitivity: Fe ≈ 0.6 mm | Al ≈ 0.1 mm
• Throughput capacity: up to 3 – 3.8 t/h (depending on material and sensor setup)
• Sorting technology: CCD color camera + metal detector (“CM” configuration)
• Particle size range: 2 – 20 mm
• Separation method: Compressed-air blast via precision valve array
• Enclosure rating: IP 54
• Power requirement: ≈ 3.4 kVA | 230 V, 50 Hz
• Operating temperature: +5 °C to +40 °C
• Purity achievable: up to 99.999 % (depending on configuration)
• Control system: Touch-screen interface with VISUTEC software (optional remote monitoring via VISUDESK)
• Modular design: Expandable to include NIR sensor (“N”) or additional sorting modules
