Cnc lathe

SFM CHT-60

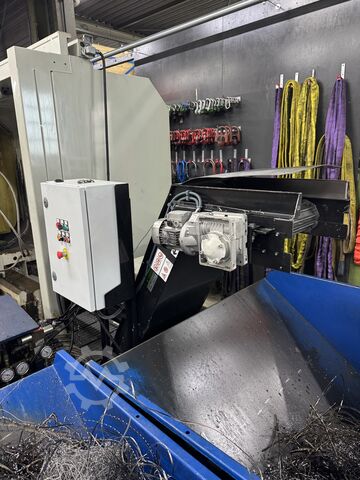

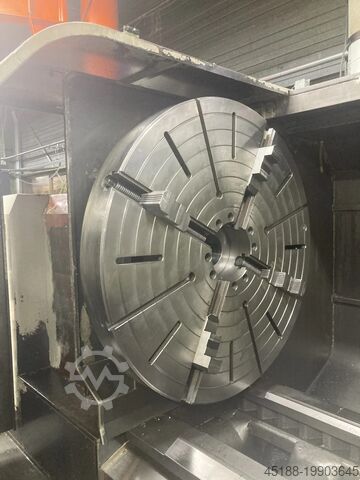

Condition: good (used), Year of construction: 2008, turning length: 12,000 mm, spindle motor power: 60,000 W, total height: 3,800 mm, total length: 23,000 mm, total width: 7,600 mm, swing diameter over cross slide: 1,520 mm, turning diameter over bed slide: 1,140 mm, workpiece weight (max.): 20,000 kg, overall weight: 58,000 kg, Equipment: documentation/manual, CNC Lathe Giuseppe Giana - GGH 1100/760 x 12.000 CNC MACH-ID 9439 Make: Giuseppe Giana Type: GGH 1100/760 x 12.000 CNC Control: Siemens 840 D-SL Year: 2008 3 bed way construction Bed width 1100 mm 3 x C-Type Steady rest on lower base with in feed 2 x Fixed steady rest 300 - 800 mm with 5 ton 2 x Chip conveyor 4 Chuck 1000 mm Barafuldi 4 way turret head Swing over bed Ø: 1520mm Swing over cross slide Ø:1140mm DBC Turning Length: 12000mm Spindle bore: 155mm Spindle power: 60kW Bed width: 1100mm Tailstock spindle Ø: 310Ø Stroke pinole: 300mm Spindle taper: 1:4 taperMk Workpiece weight: 20000 Power: 80A Speeds / ranges: 0-800Rpm Feed rate X-Axis: 0-8000mm/min. Feed rate Z-Axis: 0-8000mm/min. Length: 23000mm Width: 7600mm Height: 3800mm Bwedpfx Aoyl Uh Sjhmou Weight: 58000kg

Condition: good (used), Year of construction: 2009, Control: Heidenhain iTNC 530 Spindle * Diameter: 180 mm * Taper: ISO 50 * Power: 51 kW * Speed: 2,000 rpm (2-speed gearbox) * Torque: 2,668 Nm * Spindle support: 550 mm * Internal high-pressure coolant Travel distances * X: 5,000 mm * Y: 3,500 mm * Z: 2,350 mm * W: 1,000 mm (quill permanently extended 200 mm, at maximum travel – total reach 1,200 mm) Table * Size: 2,000 × 2,500 mm * Load capacity: 28 tons * Hydrostatically supported * B-axis positioning: 0.001° (double pinion, backlash-free) Bjdpfx Ahsy R N Iljmewu Other features * Tool changer: 60 positions * Siemens axis and spindle motors * Linear scales on all axes + rotary encoder on rotary axis * Handwheel HR 410 * Chip conveyor

Condition: ready for operation (used), Year of construction: 2018, spindle speed (max.): 5,000 rpm, travel distance X-axis: 225 mm, travel distance Z-axis: 605 mm, overall weight: 4,950 kg, controller manufacturer: MAZATROL, controller model: Smooth C, number of axes: 2, Horizontal turning machine manufactured in 2018. This Mazak QUICK TURN 200MA L features a maximum workpiece diameter of Ø 360 mm and a maximum workpiece length of 535 mm. It is equipped with a spindle speed of 5,000 rpm and a turret with 12 VDI positions. If you are looking to get high-quality turning capabilities, consider the Mazak QUICK TURN 200MA L machine we have for sale. Contact us for further details. • Max Workpiece Diameter: Ø 360 mm • Max Workpiece Length: 535 mm • Max Bar Capacity: Ø 65 mm Bodpfx Asyuyh Aohmowu • Spindle Nose: A2-6 • Spindle Bore: Ø 76 mm • Turret Tool Station: 12 VDI positions Additional equipment • Chip extractor Technical Specification Counter Spindle Yes Driven Tools Yes

Condition: used, Year of construction: 1971, core drilling diameter max. 50-355 mm bore depth 4000 mm swing diameter 1000 mm centre height 500 mm full boring 18-100 mm main spindle bore 163 mm turning speeds 56-710 U/min workpiece weight 6,3/10 t Tailstock 70-600 mm Bwjdjyt Rz Dopfx Ahmju Drill pipes, guide block, drill head, rolling steady rest, support bearing drill heads, jaws 21- 240 mm, Holder, tools, shelves, cupboards The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: used, Radial drilling machine with table WEBO type HRH 100 / 3000 Machine No. 10009555/7 -- 1110185 -- 6046 -- Year of manufacture 1979 Drilling capacity: Ø 100 mm in ST 60 at a feed rate of 0.5 mm/rev. Nominal overhang: 3000 mm Maximum overhang: max. 3100 mm Spindle mount: MK 6 Spindle speed: 22.4 - 1600 rpm, 36 steps Feed rate: 0.05 - 2.5 mm/rev, 18 steps Distance spindle - baseplate: 970 - 2335 mm Quill stroke: 325 mm Swivel range of the arm: 360° Traverseable on bed, bed length: 7500 mm Bwodpjfbt Husfx Ahmju Clamping area of the table: 8000 x 2100 mm - Electric central clamping device - Drilling unit on the machine bed, traversable lengthwise by electric motor - Table consisting of 2 clamping plates with 7 x T-slot, (length 4000 x width 2100 x plate thickness 360 mm) Space requirement L x W x H: 8000 x 4550 x 4300 mm Maximum height: 4300 mm Transport height (bed with drilling machine): approx. 3150 mm Transport weight (bed with drilling machine): approx. 20 tons Transport dimensions table: L x W x H 4000 x 2100 x 900 mm (2 plates stacked on top of each other) Transport weight table: approx. 14 tons Good condition

Condition: used, Year of construction: 1982, spindle diameter 130 mm x-travel 2750 mm y-travel 2000 mm z-travel 2330 mm spindle taper ISO 50 turning speeds 900 U/min table surface area 1600x1900 mm Radial face slide 600 mm Control Heidenhain TNC 131 bore spindle stroke 1000 mm feed 2500 m/min Table load 8000 kg weight of the machine ca. 37,8 t Rotating table 360° Bodpeyt R Htjfx Ahmowu The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: used, Year of construction: 2008, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,400 mm, travel distance Z-axis: 1,500 mm, spindle speed (max.): 5,000 rpm, HEIDENHAIN iTNC 530 CNC X-AXIS TRAVEL: 3000 MM Y-AXIS TRAVEL: 1400 MM Z-AXIS TRAVEL (Vertical): 1500 mm SPINDLE SPEED: 5000 RPM SPINDLE NOSE ATTACHMENT: SK 50 TABLE MEASURES: 3200 X 1100 MM TABLE LOAD CAPACITY: 10,000 KG Bsdpjxvrrhsfx Ahmewu 24-Place Tool Changer No. 02 Chip Conveyors Automatic Indexed Head a axis 2,5 ° b axis 3 ° YOM 2008

Condition: new, Year of construction: 2025, workpiece weight (max.): 12,000 kg, turntable diameter: 280 mm, overall weight: 120 kg, The Robotmover 20 is the ultimate solution for moving heavy loads such as industrial machinery, installations, or steel structures – 100% electric, so zero emissions and noise pollution. Work with unparalleled flexibility thanks to the wireless remote control and the ability to effortlessly change direction 360°. This compact electric mover excels at maneuvering through tight spaces, making it an indispensable tool in congested or confined environments. Thanks to the 48V-60Ah battery, the Robotmover ensures long-lasting operation, saving both time and labor. Whether you're moving equipment or heavy loads, this electric Robotmover is your reliable partner that streamlines your work and increases productivity. Flexible Operation: The wireless remote control provides infinitely variable drive with 360° direction changes. Strong Traction: Bedpfx Aew I Rt Nshmewu The two powerful 1000W motors equipped with magnetic brakes produce a robust pulling force of 20 tons. High Load Capacity: The triple-bearing turntable effortlessly carries a maximum load of 12 tons. Long Battery Life: The 48V lithium-ion battery with a 60 Ah capacity provides 4-5 hours of use without frequent charging. Scope of supply: Robotmover 20, remote control, battery chargers Also available transport crate with garage, battery operated hydraulic jacks, fixed following rollers electric skates power skates machine mover robot mover jung lifting equipment hydraulic jacks

Condition: excellent (used), Year of construction: 2001, AN VERY RARE OPORTUNETEY TO BUY AN EXCELLENT MACHINE WITH HUGE AMOUT OF TOOLINGS, DRAWERS, CLAMPING EQUIPMENT... OWER 400 EXPENSIVE TOOLINGS Bwodpfx Aevkkf Hohmeu CNC BORING MILL WOTAN RAPID 1 RETRIFITTED 2001 WITH HUGE AMOUNT OF OVER 450 TOOLING VERY LOW HOURS WORKING TIME DATA: CONTROL ON: 8001 H MACHINE POWER ON: 13692H PROGRAM RUN: 4650 H SPINDLE S1 TIME: 4690 H AXIS TIME: 4568H HYDRAULIC ON TIME: 12702 H WE OFFER AN STUNNING EXCELLENT CONDITION WOTAN CNC RAPID 1 WITH HUGE AMOUNT OF TOOLINGS, FOR A SPECIAL STAINLESS WORK. MACHINE HAVE HEIDENHAIN 530 CONTROLS TECHNICAL DETAILS: SPINDLE SPEED : 6,3-1600 U/Min SPINDLE MOVE : Y AXIS : 1250 mm DRILLING SPINDLE MOVE: Z AXIS: 600 mm W : 1000 mm X : 2000 mm B: 360.000 DEGREE SPINDLE DIAMETER: 105mm TOOL HOLDER: ISO 50 WITHOUT TOOL CHANGER CLAMPING: HIDRAULIC MAX TABLE LOAD: 6000 KG TABLE: 1120 X 1400 NUT -BILD 7 ; 22H7 INDEXING 4 X 90 DEGREE TOTAL WEIGHT: 16000 KG DIMENSION OF MACHINE: LENGHT 4800 X BREIT 4665 X HEIGHT 4200
