Travelling column milling machine
SHW UniForce 6 - X = 16.000 mm

Condition

Used

Location

Ellwangen (Jagst) Germany

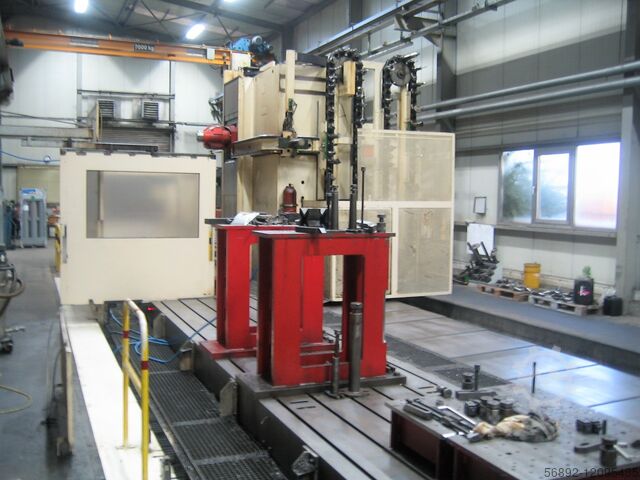

Travelling column milling machine SHW UniForce 6 - X = 16.000 mm

Machine data

Machine type:: Travelling column milling machine

Manufacturer:: SHW

Model:: UniForce 6 - X = 16.000 mm

Condition:: excellent (used)

Price & Location

Location:: Max-Eyth-Straße 26, 73479 Ellwangen, Deutschland

Call

Details about the offer

Listing ID:: A120-95435

Update:: 30.09.2024

Description

Travels
- X axis (bed): 16,000 mm
- Y-axis (vertical): 2,100 mm
o Option Y = 3.100 mm
- Z-axis (headstock): 1,200 (1,500) mm

Control

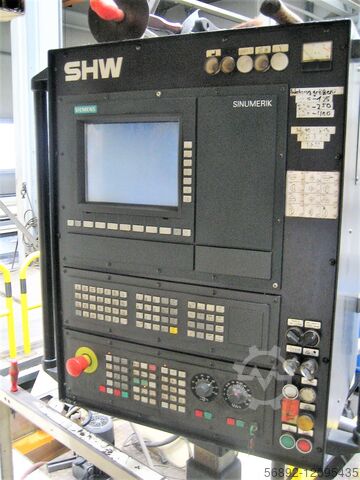

- CNC control: Siemens Sinumerik 840 C
o Option control modification Heidenhain iTNC 530
o Option control modification Heidenhain TNC 640
o Option control modification Siemens Sinumerik 840 SL

Feed rate
- X-, Y- and Z- axis stepless from: 2 - 12.000 mm/min

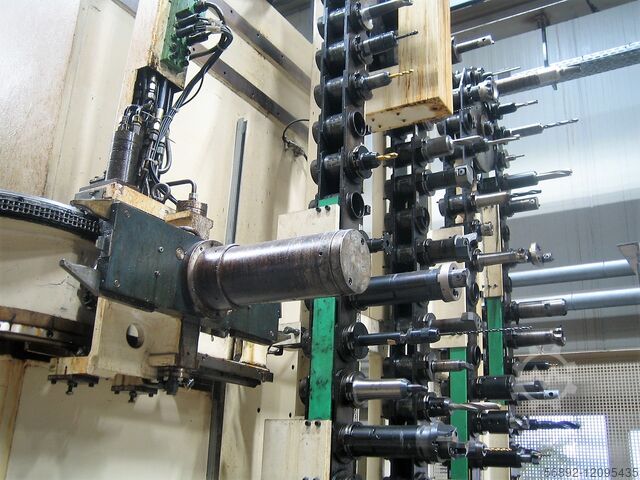

Universal milling head in orthogonal design
- swivel range milling head: 340 x 1 degree
- swivel range milling head: 180 x 1 degree
- tool holder: SK 50 DIN 69871
- Speed: 2.800 rpm

Clamping plate
- T-slots: 28 H7
- T-slot distance: 250 mm,
- clamping area: 18.000 mm x 1.500 mm

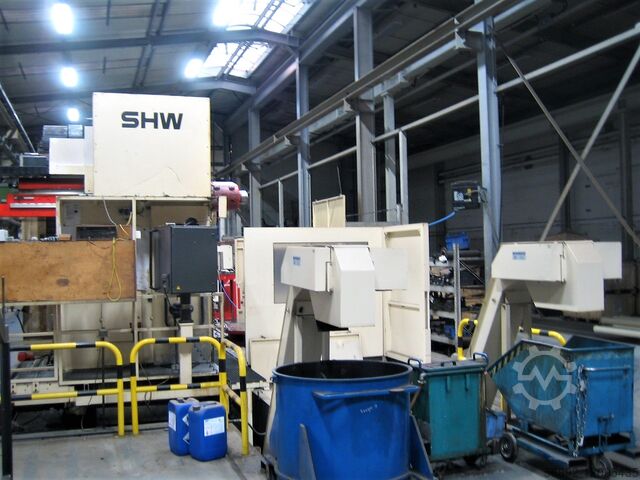

Chip conveyor (2 pieces)
- Ejection height above floor: 1,250 mm

CNC insert rotary tables (4 pieces)
- clamping surface diameter 1.250 mm

Djdpfxenvd Tne Alyjcl
Coolant system
- Paper belt filter system
o tank capacity: 30.000 l

General overhaul 2016
• 1996 - Year of manufacture
• 2016 General overhaul at MBM

About us:

MBM Maschinenservice & Gebrauchtmaschinen GmbH, is a freelance specialist for SHW machine tools. Our main focus is in the area of tool milling machines. Our services include spare parts deliveries, on-site customer service, machine overhauls and control system modernizations.

Services:
- Used machines
- spare parts
- after-sales service
- machine service
- machine overhauls
- Control system modernization
