Welding table equipment

SIEGMUND Sonderset 96

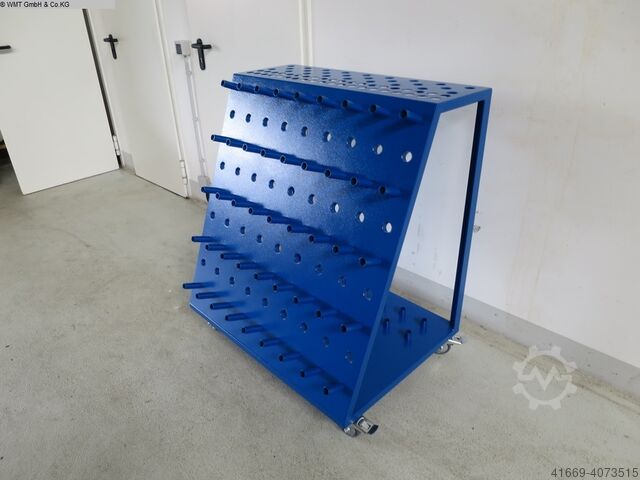

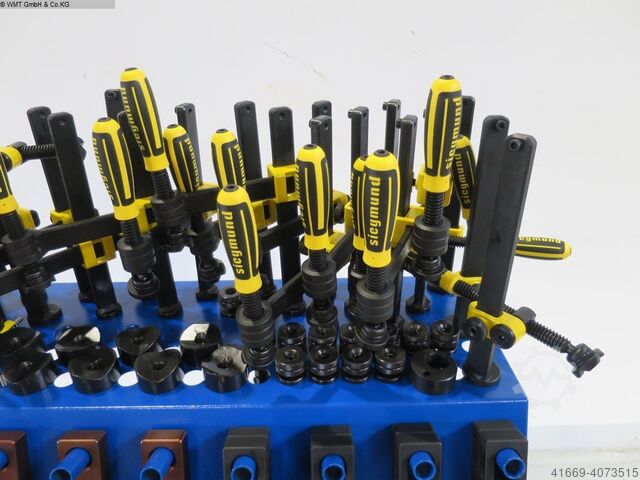

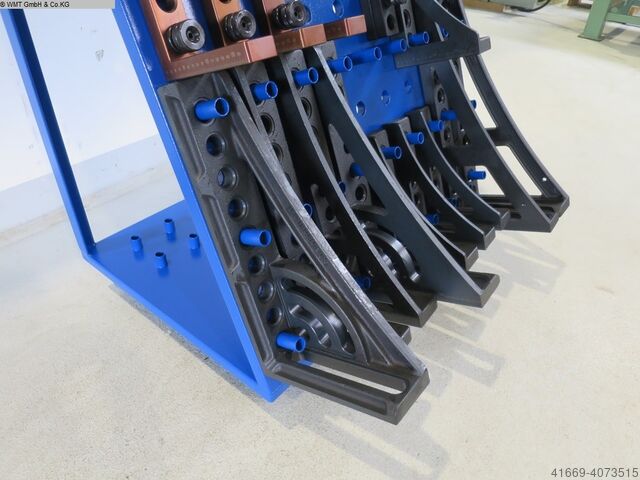

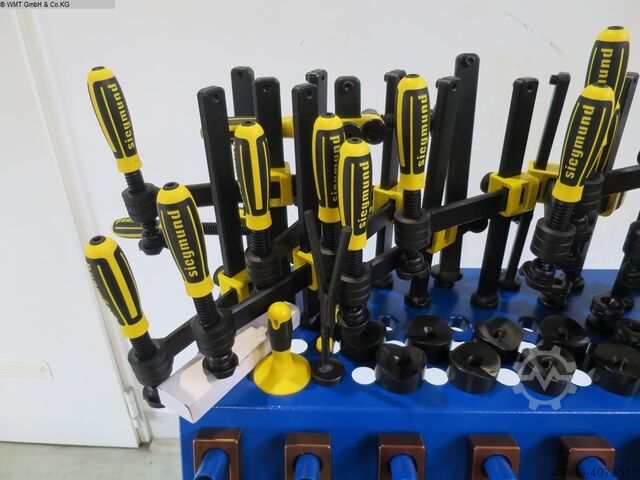

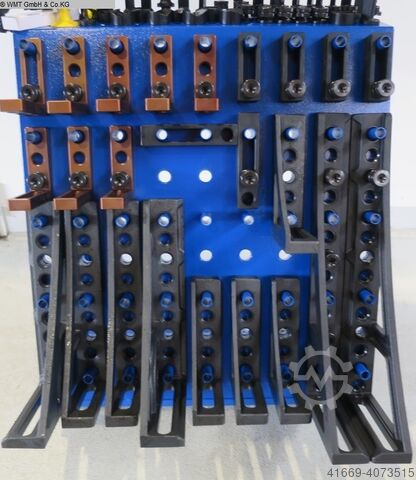

Condition: new, table length unterschiedlich mm table width unterschiedlich mm table height (lateral area) unterschiedlich mm weight ca. 240 kg Description : - SPECIAL SET for SIEGMUND 28er clamping tables - ORIGINAL SIEGMUND accessories (!!) included in the scope of delivery : - 1x 280910 .. 28 mm - mobile tool trolley incl. rollers - 8x 280410.N .. Universal stop 150 L nitrided - 4x 280420.N ... Universal stop 225 L nitrided - 2x 280162.N ... Stop and clamping bracket 500 G left nitrided - 1x 280166.N ... Stop and clamping bracket 750 G left nitrided - 1x 280167.N ... Stop and clamping bracket 750 G right nitrided - 1x 280164.N ... Stop and clamping bracket 500 G left nitrided - 1x 280165.N ... Stop and clamping bracket 500 G right nitrided - 4x 280152.N ... Stop and clamping bracket 300 G left nitrided - 16x 280610.N ... Professional screw clamp, nitrided Bodpfx Ajxabvdsf Hewn - 6x 280630.N ... Professional screw clamp 45°/90° nitrided - 8x 280651.1.N .. Prism Ø 60-135° nitrided - 8x 280110.N .. Stop and clamping angle 175 L nitrided - 30x 280511 .. Quick-action clamping bolt, double without groove, burnished - 4x 280430.N .. Universal stop 500 S nitrided - 1x accessory set consisting of: - Eccentric, Allen key, brush, - further accessories such as: Probe CleanBasic, Probe Anti-Stick and torch holder

Condition: used, Year of construction: 1998, Technical details: turning diameter: 830 mm turning length: 4000 mm turning diameter over bed slide: 540 mm spindle bore: 130 mm turning speed range: 2 - 1600 U/min Bsdpfjwwlt Rsx Af Hjwn rapid speed: 4 / 5 m/min feed speeds: 1 - 2000 mm/min total power requirement: 55 kW weight of the machine ca.: 7,5 t dimensions of the machine ca.: 7 x 2,2 x 2 m with Teach In controll R&D MTC-K MULTIFIX toolpost size D coolant attachment *

Condition: used, Year of construction: 2018, functionality: fully functional, turning diameter: 1,000 mm, turning diameter over bed slide: 710 mm, turning length: 8,000 mm, Used heavy-duty lathe with extensive steady rest equipment – ideal for pipe machining and long rolls! This robust conventional lathe with an impressive turning length of 8,000 mm was specifically designed for pipe machining applications. The sophisticated machine design allows the cutting edge to easily pass the open steady rests – ideal for precise machining of long, hollow workpieces. Technical Highlights: • Turning diameter over bed: 1,000 mm Bwjdpfx Afjv Tntto Hsn • Turning diameter over support: 710 mm • Center height: 900 mm • Turning length: 8,000 mm • Spindle bore: 155 mm • Machine weight: approx. 18.2 tons • Main drive: 30 kW with frequency converter, continuously variable Design advantages: • Machine bed cast in one piece and artificially aged – for maximum stability and stress-free operation • 5 hardened and ground guideways for maximum precision • Continuous feed control of the longitudinal axis via ball screw – no Norton or lock-box gearing • Electric-driven tailstock with hydraulic clamping • Manually adjustable cross support with trapezoidal thread spindle • 4-station tool carrier, manually pivoting • Triple-guided turning support – for extremely smooth running Steady rests & tube processing: • Various steady rests (stationary and follow-on) optional Available • Motorized steady rest carriers with hydraulic clamping • Spindle adjustment conveniently possible from the operator's side • Traveling steady rests can be mounted either on the left or right Application: Thanks to its sophisticated design, the machine is ideally suited for light to medium-duty machining – especially for the precise machining of tubes. The continuously variable speed and feed control ensures high flexibility and ease of use.

Condition: ready for operation (used), Year of construction: 1995, Make: GILDEMEISTER Type of machine: NEF Plus 500 Year of manufacture: 1995 Control system: Gründig Machine's weight: 2650 kg Speed range: 8 - 2800 1/ min Cutting diameter: 500 mm Turning length: 1000 mm Overall dimensions: 2500 x 1750 x 1850 mm Spindle opening: 70 mm Bjdpfetpn S Isx Af Hown

Condition: used, Year of construction: 2000, turning diameter 500 mm turning length 1500 mm control MONFORTS CONTROL control SYSTEM MTC-K turning diameter over bed slide 290 mm spindle bore 70 mm spindle turning speed range 3 - 2800 U/min spindle power 15 kW max. torque on the spindle 1530 Nm spindle head DIN 55027 Gr. 8 feed power X/Z axis 11300 N rapid travel - longitudinal/face 10 / 5 m/min bed width 360 mm travel of cross-slide 265 mm upper slide travel 140 mm turning tool - shaft cross cut 32 x 25 mm Bjdpfx Aovh Ncref Hjwn tailstock quill diameter 80 mm tailstock quill stroke 160 mm tailstock taper MT 5 weight of the machine ca. 3,3 t dimensions of machine L x W x H 3,45 x 1,65 x 1,93 m Accessories: 3-jaw chuck ROTA-S plus 250 mmø, 4 pos. toolholder PARAT, coolant

Condition: used, Year of construction: 2005, 1 used crankshaft milling device in very good condition for mounting e.g. on a lathe for milling crankshafts or other milling work Make: SEMA, Origin Austria Model: SE 100 Year of manufacture: 2005 Technical data: Spindle holder ISO 50, concentricity / test mandrel L=300 mm = 0.01 mm Speed range, infinitely variable, currently set to 2,000 rpm Spindle is designed for up to 3,000 rpm Drive power currently 15 kW The milling spindle is designed for up to 25 kW Bearing diameter 110 mm The 2 screwed-on adapter plates under the milling spindle are each screwed on. These plates can be used for your lathe, reworked or may have to be newly manufactured. Screw-on surface of the milling spindle: L x W: 490 x 250 mm Accessories / special features: Milling spindle: - The milling spindle is mounted on the face support of your lathe - Infinitely variable speed adjustment, LENZE frequency converter, designed for up to 30 KW - Clockwise / counter-clockwise rotation - Lifetime lubricated spindle bearings - Sturdy construction with hardened and ground spindle - High precision - Spindle with 2 bearings and 5 spindle bearings - Tool tightening via a threaded spindle - Mobile carriage with control panel - Emergency stop - Lockable main switch Drive gear for the main spindle: - A long drive rod is mounted in the spindle bore and connected to the gearbox - Infinitely variable speed adjustment, LENZE frequency converter - Clockwise / counterclockwise rotation - Jog mode Fast / slow The pictures show this unit mounted on a SARO SPA 10 x 3000 universal lathe for milling crankshafts. This lathe is not included in the scope of delivery! Bwedpfxeddziye Af Hon Siegfried Volz Machine Tools Rüschebrinkstr. 151-153 D - 44143 Dortmund - Wambel

Condition: used, Year of construction: 2022, turning diameter over bed 540 mm turning diameter over slide rest 340 mm turning diameter in the gap 800 mm length of gap 350 mm turning length 3000 mm turning speeds 40-1800 U/min bed width 340 mm 3-jaw chuck 255 mm spindle passage 52 mm No. 65 The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team Bedpfx Afeyq Sxxs Hown

Condition: used, Year of construction: 2010, Vertical bandsaw Manufacturer: Bauer Type: VG 450 L Year of manufacture: 2010 Cutting capacity: 90° round = 450 mm 90° flat = 450 x 620 mm 45° left = 450 x 420 mm 45° right = 450 x 390 mm 30° right = 450 x 250 mm Material inlet height: 930 mm Saw blade wheel diameter: 450 mm Saw blade dimensions: 4,450 x 34 x 1.5 mm Cutting speed: 35, 70 m/min, infinitely variable Saw blade guide: Idler pulleys + carbide jaws Material tension: manual, via handwheel + trapezoidal spindle Saw frame feed: hydraulic cutting pressure control Material feed: manual Spray system Compressed air: min. 2 bar Designed for miter cuts Saw motor: 2.2 kW Coolant pump: 0.1 kW Bwodpfx Aeyfib Hof Hsn Hydraulic pump: 0.37 kW Space required L/W/H: 2,150 x 1,400 x 2,250 mm Weight approx. 900 kg Operating manual ä3626

Condition: used, Year of construction: 1998, turning diameter 555 mm turning length 4000 mm control Monforts Control System type MTC-K CCUO Bwjdpfx Asyqv N Usf Hen turning diameter over slide rest 290 mm cross movement . mm spindle passage . mm turning speeds 1600 U/min transmission ratio . quill stroke . mm rapid traverse . m/min main drive motor . kW 3-jaw chuck Rotha-S Plus 3-jaw-chuck diameter . mm total power requirement . kW weight of the machine ca. . t dimensions of the machine ca. . m Serial number: 262/01 Machine number: Quick-change tool post Coolant system Monitor Chip conveyor The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: used, Year of construction: 2006, SEMA SE 100 milling spindle unit, e.g. for the production of crankshafts Spindle holder flange Speed with this gearbox 97 rpm Spindle is designed for up to 3000 rpm Drive power, currently 22 kW The milling spindle is designed for up to 25 kW Bearing diameter 110 mm Disc milling cutter SANDVIK Ø 700 x 25 mm Immersion depth of the disc cutter 235 mm Accessories / Special features: - Side milling cutter SANDVIK Ø 700 x 25 mm - Lubricated-for-life spindle bearings - Sturdy construction with hardened and ground spindle - High precision - Spindle with 2 bearings and 5 spindle bearings - Tool tightening via flange New price at the time: approx. 34,500.00 € net Siegfried Volz Machine Tools Rüschebrinkstr. 151-153 D - 44143 Dortmund - Wambel Bwsdpfxjddzi Ao Af Hjn
