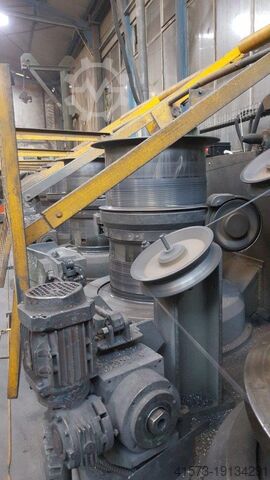

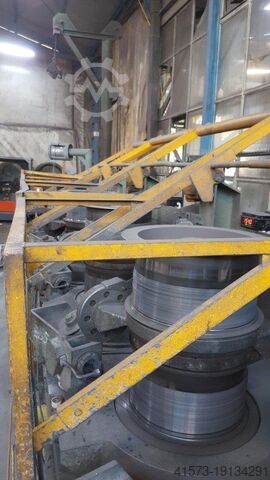

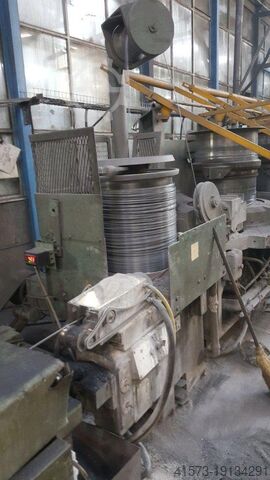

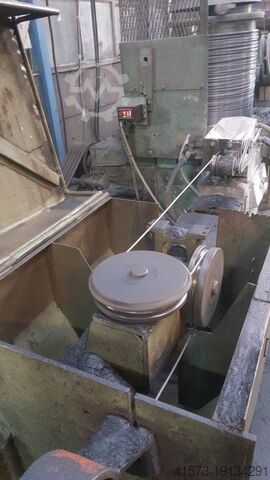

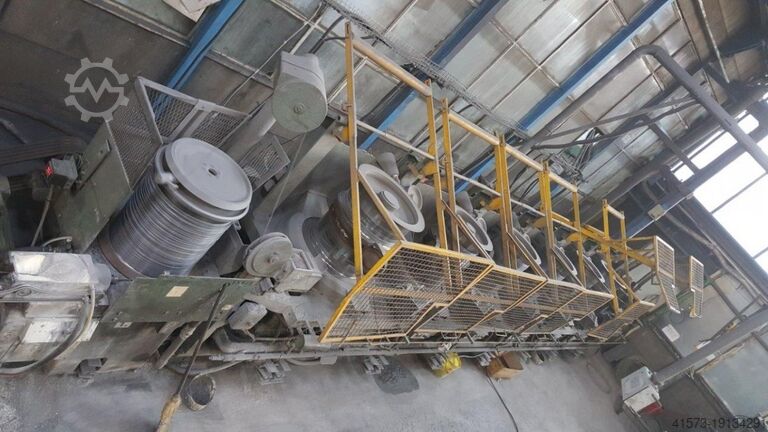

Multiple wire drawing machine - dry

SKET / MILL 8 BLOCK

Condition: refurbished (used), SCHLATTER Welded wire mesh production line MG24 Full revamped WORKING RANGE Panel width: max. 2500 mm Weft wire length: min. 900 mm Weft wire length with QF5 dispenser: min. 300 - 1600 mm Spacing between extreme warp wires: max. 2400 mm Mesh length (warp wire length): max. 2500 - 6000 mm Spacing between warp wires: min. 100 mm Spacing between weft wires: 25-250 mm Adjustable by cutting device (0-1) Warp wire diameter: 4.0 - 12.0 mm Weft wire diameter: 4.0 - 12.0 mm Number of warp wires: max. 24 WELDING MESH MACHINE MG 24.1/8C, Basic equipment including: - 1 Machine frame - 1 Upper support for press reception, continuously adjustable by hand crank - 1 Magnet supports with retaining magnets and weft wire monitoring. Hedpfxewu Tu Dj Afcoi - 1 Row of pneumatic solenoid valves for press actuation. - 1 Installation for air and water. - 2 Pneumatic rotary drives with oil damping - Static motor torque with 5 bar compressed air: 480 Nm - Front continuously adjustable from: 25 - 250 mm adjustable by cutting device (0-1) - 1 Advance carriage with panel lifting device - 1 Set of tools for machine adjustment WELDING SECTION 8 Type C Transformers Rated power of each transformer: 100 kVA No-load secondary voltage: 7.1 V Rated secondary current: 14 kA 8 Thyristor contactors ES 130 12 Welding presses: 5.0 kN 12 Chain current bridge for spacing of warp wires: 50-100 mm 12 Chain current bridge for spacing of warp wires (for offset warp wires): 100 mm 10 Chain current bridge for spacing of warp wires: 100-150 mm 8 Chain current bridge for spacing of warp wires (for offset warp wires): 150 mm 6 Chain current bridge for spacing of warp wires: 150 - 200 mm 6 Chain current bridge for spacing of warp wires (for offset warp wires): 200 mm 24 Lower electrode holders Cu with standard angled electrodes and each with a water-cooled current cable, width: 58 mm 24 Wire clamping pliers Panel width: max. 2500 mm Weft wire length: min. 900 mm Weft wire length with QF5 dispenser: min. 300 - 1600 mm Spacing between extreme warp wires: max. 2400 mm Mesh length (warp wire length): max. 2500 - 6000 mm Spacing between warp wires: min. 100 mm Spacing between weft wires: 25-250 mm Warp wire diameter: 4.0 - 12.0 mm Weft wire diameter: 4.0 - 12.0 mm Number of warp wires: max. 24

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: 2-1, 2006, Eurobend CNC 16x4 rebar from coil straightening and cutting machine in used but working condition. 4 x 5 Ton decoilers with pneumatic brakes. 4 x rotor for diameter 8-10-12-16 mm rebar wire straightening and automatic cutting with hydraulic moving cutters. 1 line or even up to 4 lines together cutting. PC with barcode scanner option. Cutting length up to 14 meters and more. Pockets for storage. Chain conveyor for transport of bundles. Hodsrdvq Aopfx Afcei

Condition: excellent (used), Year of construction: 1995, Combination Unit: Manufacturer: GSG Feeder: Type: 840.02-027 Crusher Descaler: Type: 663.02-017 Wire Range: Ø5.5-16mm For wire rod with approx. 40-60 daN/mm² strength Crushing and Bending Rollers: Carbide Inserts Adjustment with 0.37 kW - 1.15 A gear motor Brush Drive with 0.25 kW gear motor, n=293 rpm Connection Voltage: 380-420 V 50 Hz Dry Coating Unit: Type: BSG/T Filling: Calcium Stearate (e.g., Traxit Type: D S 51 E) Stearate Consumption: approx. 350 g per t of wire Drawing Speed: max. 15 m/s Electrical Power: 2x 0.55 kW gear motors Cassette: 2 slots (supplied with 1x roller block + 1x cassette) Type: PKG/T (TS) Cleaned rolled wire Wire strength approx. 40–60 daN/mm² Wire range max. inlet diameter 9.5mm, finished diameter 3.5–8.5mm Roll dimensions min. Ø115mm, max. Ø125mm, Bore diameter Ø82mm, width 15–25mm Cooling pin diameter 25mm Cooling water consumption approx. 600 l/h Drawing machine: Manufacturer: Koch Type: KHZ 5000 Year of manufacture: 1993 Serial number: 13.821 Number of draws: 1 draw per block Drawing drum: Ø700mm Tensile force: mechanical 5000 N Wire material: mild steel wires Run-in strength: approx. 40 – 45 daN/mm² Maximum drawing range: Inlet diameter 5.0 – 8.5mm Cross-section reduction: 20 x 25% (mechanical gradation) Drawing speed: up to max. 7.0 m/s Brake: Twiflex, type: MRB Drive: AC motor/frequency converter, Siemens PN=110 kW, n=1485 rpm Spooler: Manufacturer: Koch Type: KHS 1250 Year of manufacture: 1993 Factory No.: 13741 Wire diameter: 5 – 8.5 mm Strength: approx. 55 – 70 daN/mm² Winding speed: V=7 m/s, adapted to the drawing machine Filling weight: approx. 3000 kg Spool drive motor: Three-phase motor with external fan Type: 1 PQ 6253 – 6 AA 70- Z A 15 + K 20 + C 14 + H 46 P=37 kW, n=1000-2000 rpm, IP54, design B3 Laying drive motor: 66-671U, 1.5 kW, 170 V, 9.8 A, 1680 rpm, IP 44, B5-200 With Attached tachometer generator TG 20, 20 V / 1000 rpm With attached spur gear SK 32, i=57.53, design B6 Hydraulics: Hydraulic excavator type: H13 AK Pneumatics: Twiflex disc brake type: MRB Pneumatic cylinder type: SPWG 28032-25mm stroke Dimensions: 3100 x 3000 x 1700 mm (L x W x H) without counterweight Hedpfsr Nfvmsx Afcei

Year of construction: 1985, condition: reconditioned (used), Technical Details : Wire Dimeter range- 4-12mm Hedpfxsh In Ths Afcji Gscxckebw Run out table - 4m Speed -80' m/min. Reconstruction- 2022

Condition: used, functionality: fully functional, machine/vehicle number: D20E/8022, Offer Number: D20E/8022 Machinetype: multiple wire drawing machine - dry Info: straight through Make: VEB Type: 8 Block Constr. year: inlet wire diameter: 2,5 mm finished wire diamter: 0,8 mm Hodpfxswi Tidj Afcji number of drafts: 8 diameter of capstan: 400 mm speed -meters/sek: 15 m Location: Europe

Condition: used, Year of construction: 1980, functionality: fully functional, machine/vehicle number: D08L/7600, Offer Number: D08L/7600 Machinetype: straightening and cutting machine Make: WAFIOS Type: RS40S Hedpfxswi S N Ns Afcji Constr. year: 1980 diameter range: 4-10 mm cutting length: 3000 mm speed - meters/min: 130 Location: In our warehouse

Condition: used, Year of construction: 2016, functionality: fully functional, working width: 2,000 mm, wire diameter (max.): 6 mm, type of input current: three-phase, operating speed: 142 mm/s, mesh size: 9,999 mm, continuous power (apparent): 833 kVA, We offer a used Schlatter MG600/MG24.4/10Sp-AC mesh welding machine, model year 2016. Type: MG600/MG24.4/10Sp-AC Serial number: 4885.31609 Year of manufacture: 2016 Rated primary voltage U1N: 400 V Rated secondary voltage Ua: 230 V Primary phases: 3 ~ Secondary phases: 1 ~ Frequency: 50 Hz Rated apparent power Sp: 833 kVA Rated primary current I1,p: 1202 A Primary short-circuit current I1cp: 50 kA Secondary short-circuit current I’acp: 10 kA Hjdpfjyaqzqjx Afcei If you have any questions or require further information, please feel free to send us a message or call us.

Condition: refurbished (used), Year of construction: 2025, JAGER welded mesh line U-Gsa-st Full revamped "as new" Technical data 24 pay off for longitudinal wire spools, longitudinal wire straightening equipment Line wire pull off system Longitudinal wire loop Longitudinal wire straightening equipment Cross wire magazine Hsdpfxjwu Dcxo Afcoi Number of installer line wires : 24 up to 10 mm Diameter of lines wires : 4 to 10mm Diameter of cross wires : 4 to 10mm Separation between line wires : 100, 150, 200, and 300 mm Separation between cross wires : min 30 mm , steplessly programmable Max. length of cross wire (mesh width) 2500 mm , max welding width : 2400 mm Mesh length : min 3000 mm and max . 6000 mm Trafos : 8 x 160 Kva Number of installer line wires: Number of installer line wires : 24 up to 10 mm Diameter of lines wires: 4 to 10mm Diameter of cross wires: 4 to 10mm Separation between line wires: 100, 150, 200, and 300 mm Separation between cross wires: min 30 mm , steplessly programmable Max. length of cross wire (mesh width): 2500 mm Max welding width: 2400 mm Mesh length: 3000 - 6000 mm Trafos: 8 x 160 Kva

Condition: used, Year of construction: 2011, functionality: fully functional, machine/vehicle number: D12E/8151, Offer Number: D12E/8151 Machinetype: wire nail press Make: ENKOTEC Hedpfx Aowi Tl Eofcei Type: NA05 SH Constr. year: 2011 diameter range: 1,8-2,5 mm nail length: 32-57 mm output - pieces/min: 2000 Location: Europe

Condition: used, Year of construction: 2002, functionality: fully functional, SCHLATTER model MG 316 Mesh welding line Technical Details - • Purpose: For the production of standard mesh • Manufacturer Schlatter • Condition: Not in operation • Longitudinal wire Ø min: 3 mm • Longitudinal wire Ø max: 8.5 mm Hjdpjv Unt Nofx Afcji • Crosswire Ø min: 3 mm • Crosswire Ø max: 8.5 mm • Cycles (transverse wires) max: approx. 120 • Max mat width: 2500 mm • Max nr. of longitudinal wires: 26 • Longitudinal wire feed: From coil • Crosswire feed: From coil • Longitudinal wire spacing: 100/150/200 mm • Crosswire spacing: 100-400 mm • Year installed: 2002 • Weight: ca. 30’000 Kg
