Milling machining centers - vertical

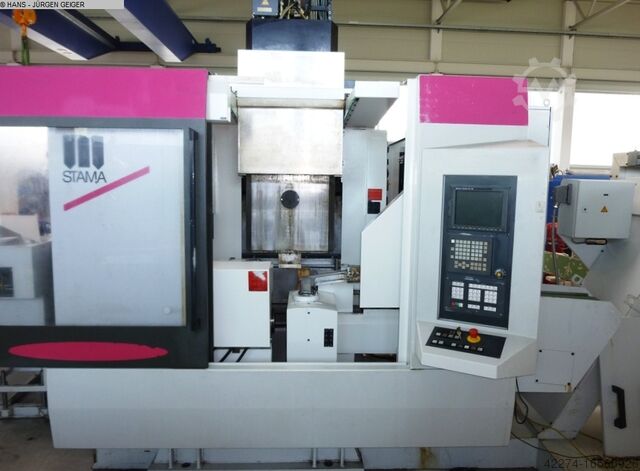

STAMA MC 535 SM

Condition: used, Year of construction: 1998, x-travel 800 mm Cpedpfx Ahst Hwtfo Sjt y-travel 500 mm z-travel 510 mm total power requirement 60 kW weight of the machine ca. 10 t dimensions of the machine ca. m

Year of construction: 1991, condition: used, max. wheel diameter 400 mm max. number of teeth 150 max. module 5 total power requirement 16 kW weight of the machine ca. 10 t Workpiece Ø, min./max. 30 - 400 mm Cpedpfx Ahet Hwyls Sot Number of teeth 6 - 150 Module range, max. 5 Tool holder shaft Ø SK 30 / 20 Tool speeds 4,000 rpm Spindle drive max. infinitely variable 1.8 kW Feeds, longitudinal and cross 0.001 - 12 m/min Workpiece speed, max. (1.5 kW) C Axis 2,000 rpm Workspindle slide 400 mm Tool speed, max. 3,000 rpm Tool holder SK 30 Total electrical load, approx. 16 kW - 380 V - 50 Hz Weight, approx. 10,000 kg Accessories / Special Features * BWO (HECKLER & KOCH) CNC Control model 785 H for altogether 7 axes. Input via monitor. The control has all the supervision and fault diagnosis features necessary for fully automatic working process. * 2 workspindle units, left and right, which can be set at any angle. * CNC controlled: Z and W Axes for tool cross slide. X and U Axes for tool longitudinal slide. * L and O Axes for milling spindle. C Axis for workspindle rotation. * Manually controlled: Tool slide rotary table (B and E Axes). Tool slide vertical infeed (V and Y Axes). Tilt of tool head (A and D Axes). All axes have digital display in the control. * Hydraulically operated workpiece clamping device in conjunction with an automatic loading device using workpiece feed / conveyor belt and swivelling loading device, as well workpiece control by air. * Coolant equipment with chip conveyor. * Noise protection cabin. * Central lubrication. * Built-on hydraulic unit. * Pneumatically driven safety doors. * Deburring device, etc. The machine uses the hypocycloidal milling principal, with electronically synchronized tool and workpiece axes for working straight roof-formed teeth, symmetric as well as asymmetric forms. Advantages are high precision and productivity. Condition : Good to very good. Machine can soon be inspected under power. Delivery : Ex stock, as inspected Payment : Net, after conclusion of contract Thank you for your interest. We always have a good selection of gear machines available on stock.

Condition: ready for operation (used), Year of construction: 2008, Control Unit Brand FANUC Model 18i-MB5 Main Drive Number of axis 3 Spindle Speed 12000 RPM Spindle motor power 21 kW Tool taper HSK 63 Movement X-Axis Movement 1000 mm Cpedpfx Asx D E Rmsh Sst Z-Axis Movement 360 mm Y-Axis Movement 400 mm This 3-axis STAMA MC 526 vertical machining center was manufactured in 2008. It features a Fanuc 18i-MB5 CNC, twin-spindle with double tool changer, and a high-pressure coolant system. The machine offers a spindle speed of 12,000 rpm, spindle power of 21 kW, and a tool capacity of 60. X/Y/Z travels are 1000/400/360 mm respectively. If you are looking to get high-quality milling capabilities consider the STAMA MC 526 machine we have for tact us for more information. Application Types Milling
