Used Star SA-12, year 2003 (Internal No. 231372)

STAR Micronics SA -12

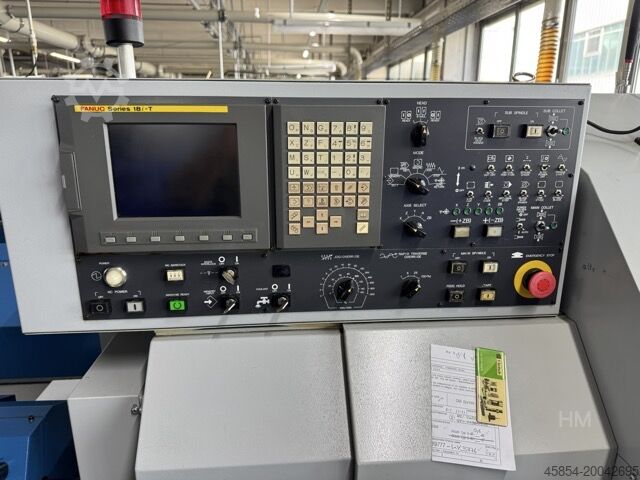

Condition: ready for operation (used), Year of construction: 2001, Star SA12 CNC Swiss-type Lathe Year of manufacture: 2001 FMB Minimag Bar Loader Technical data: Control: Fanuc Series 18i-T CNC control Maximum machining diameter: 12 mm Main spindle speed: 12,000 rpm Codpfxoxfwtvs Abwehc Sub spindle speed: 8,000 rpm Rotating tool speed: 4,000 rpm Turning tool stations: 6 Driven tool stations: 3 Front working tools: 4 (front and rear) Rear working tools: 4 (front and rear)

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, turning diameter: 16 mm, rotational speed (max.): 12,000 rpm, bar passage: 12 mm, TECHNICAL DETAILS Turning diameter: 16 mm Bar capacity: 12 mm Control: Fanuc Series 18 i-T Main spindle speed range: 500 – 12,000 rpm Drilling capacity (stationary): 7 mm Thread cutting capacity (stationary): M6 × P1.0 Thread cutting capacity (driven tool): M3 × P0.5 Spindle stroke with stationary guide bushing: 135 mm Spindle stroke with gripper unit and stationary guide bushing: 120 mm Spindle stroke with rotary guide bushing: 100 mm Spindle stroke with gripper unit and rotary guide bushing: 90 mm Tool size: 10 mm × 95 mm – 125 mm / 6 tools Sub spindle Cedpfowur Shjx Abwohc Max. clamping diameter: 16 mm Speed range: 500 – 8,000 rpm Drilling capacity: 4 mm Thread cutting capacity: M3 × P0.5 EQUIPMENT - Bar feeder FMB Turbo 2-16 / 3200A - Chip conveyor

Condition: excellent (used), Year of construction: 1999, Control FANUC 18i-T Chjdpfoxfwu Tjx Abwoc Max. turning diameter 12 mm Main spindle speed 12,000 min-1 Counter spindle speed 8,000 min-1 Horizontal tool carrier with 6 stations for 10x10 tool holders. Cross-slide for driven tools (3x ER11 mounting) Swing arm for non-driven tools (4x Ø22 drill sleeves) IEMCA bar loading magazine Mini Boss 325 CNC/32 Chip conveyor 2 drill sleeves

Condition: excellent (used), Star SA-12 Swiss-Type Lathe Technical Specifications Rapid feed (X, Y, Z, ZB): 370 mm Maximum turning feed (X, Y, Z, ZB): 270 mm Smallest input unit (X, Y, Z, ZB): 120 mm Cedpfx Aowi Ty Ajbwehc Machining Capacity Maximum turning diameter: 13 mm Maximum headstock stroke: 140 mm Maximum drilling capacity: 7 mm Maximum tapping capacity: 7 mm Maximum thread cutting capacity: M6 x P1.0 Main Spindle Spindle speed: 500 – 12,000 rpm Drive: Spindle drive Main spindle motor: 2.2 / 3.7 kW Main spindle indexing angle: 1° or 15° Main spindle bore: 20 mm Tool slide Type: Linear slide Number of tools: 6 tools Number of driven tools: 3 tools (collet: ER 11) Driven tools Spindle speed: 1970 / 2330 rpm Max. drilling capacity: 4 mm Max. milling capacity: 4 mm Pick-up spindle Max. clamping diameter: 13 mm Max. part length for forward ejection: 85 mm Max. unclamping length: 30 mm Spindle speed: 500 – 8000 rpm Pick-up spindle motor: 0.5 kW Tool selection: 4 tools Max. drilling capacity: 4 mm Max. tapping capacity: M3 x P0.5 Power supply Voltage: 3-phase 200/220 V Frequency: 50/60 Hz Power: Average: 6.0 KVA SCOPE OF OFFER Among other things: (list not exhaustive): STAR SA-12 Swiss-Type Lathe Control: Fanuc Series 18i-T Fire Extinguishing System Coolant Tank Transformer LNS Bar Loader Exact scope of supply as per photo gallery No liability is assumed for the accuracy, completeness, or timeliness of the information.
