Coordinate measuring machine

Stiefelmayer C-MAN

Condition: used, Measuring machine with manually operated measuring arm STIEFELMAYER Measuring and marking plate made of cast steel/grey cast iron, heavily ribbed High-precision measuring plate with quality surface finish Year of manufacture: 1985 Length: 2000 mm Width: 1500 mm Thickness: 350 mm Dsdpfx Ajpwpxcsa Hekp Plate thickness (top): 50 mm solid material with 300 mm ribs Working height: approx. 800 mm - with manually movable measuring arm, measuring range X=1490 mm, Y=1000 mm, Z=1250 mm - with 3-axis digital readout Grundig MZ 1030 - machined side surface at 90° angle to the table top, 2000 x 350 mm - 5 height-adjustable feet Required space (L x W x H): 2000 x 1500 x 2500 mm Weight: approx. 2600 kg In good condition

Condition: good (used), Technical specifications Technical specifications will be provided shortly. Dkjdpfxedl Hdms Aa Hjp The machine can be upgraded with new software according to customer requirements. Price: upon request! Installation and commissioning are possible! We will gladly prepare a detailed offer for you! Note: Our offer is exclusively aimed at specialist customers! (Subject to changes and errors in the technical data, information, and prices, as well as prior sale!)

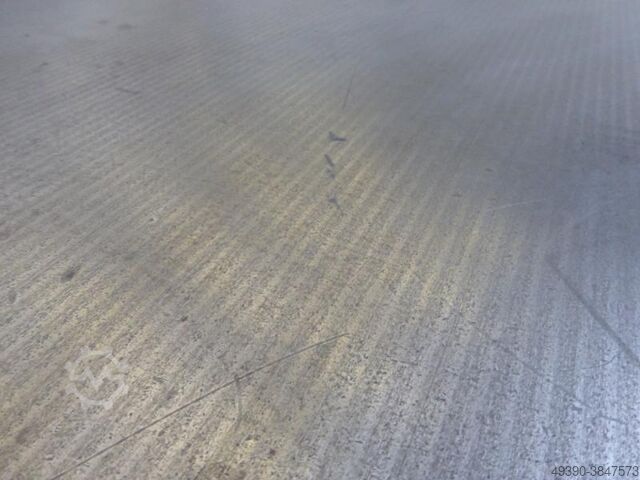

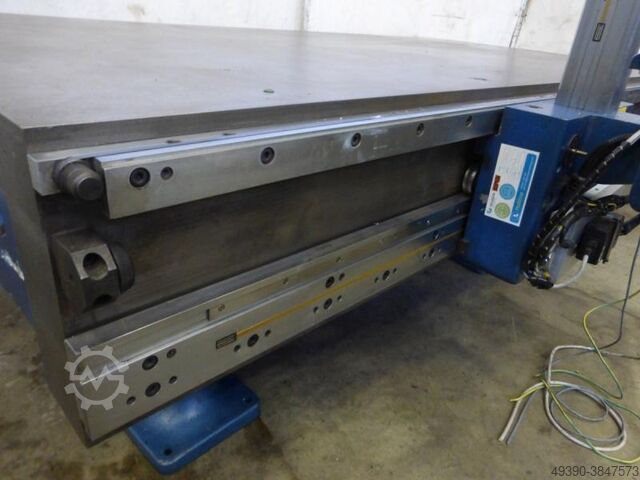

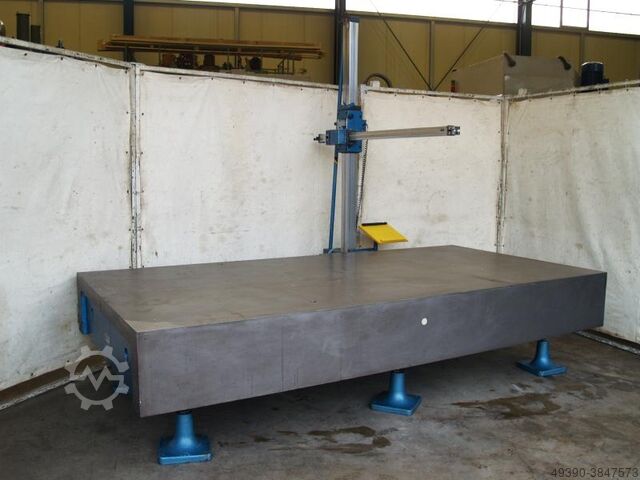

Condition: used, Measuring and reference plate, cast steel, grey cast iron, heavily ribbed, STIEFELMAYER from a measuring or scribing machine with a hand-guided measuring arm Machine No. 8530979, Year of manufacture approx. 1989 Length 3000 mm Width 1500 mm Thickness 360 mm Working height 690 mm Plate thickness 70 mm, continuous - side surface machined at a 90° angle, 3000 x 360 mm - 6 adjustable feet - includes 1 mechanical and electrical measuring arm, not functioning Djdpfx Aajdzqpzo Hjkp The measuring range is approx. X = 2350 mm, Y = 1250 mm, Z = 1300 mm Space requirement L x W x H 3000 x 2000 x 2500 mm Weight approx. 5000 kg Very good surface condition

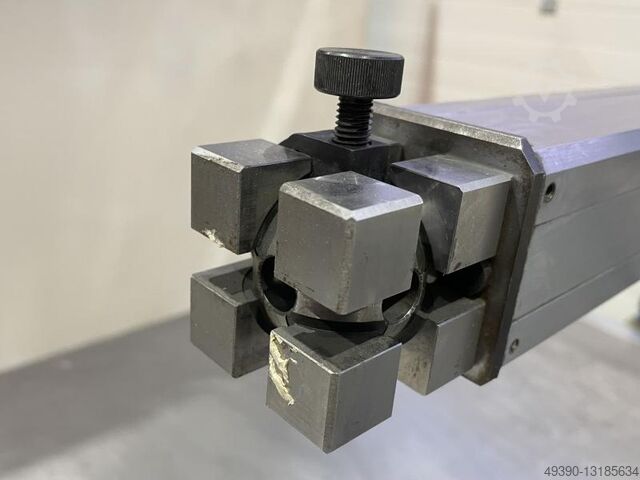

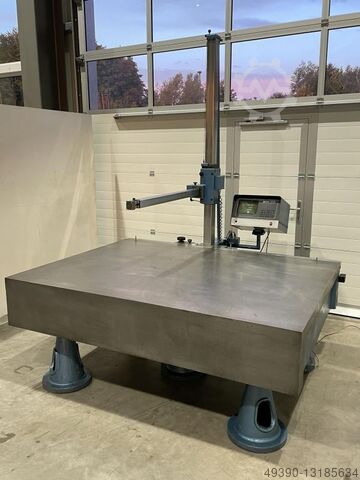

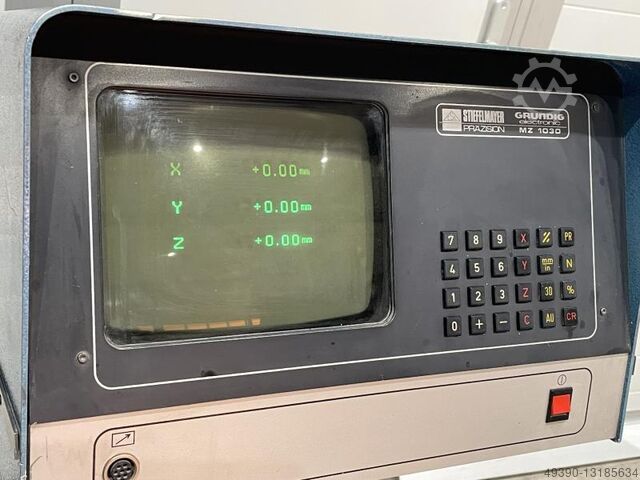

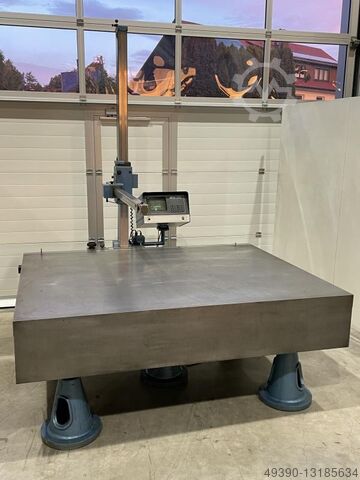

Condition: used, Measuring machine with hand-guided measuring arm, STIEFELMAYER High-precision measuring and marking plate, made of cast steel/grey cast iron, heavily ribbed Dkedpekdnwbjfx Aa Hep Machine No. 22890285, Year of manufacture 1985 Length 2500 mm Width 1500 mm Thickness 350 mm Plate thickness (top) 50 mm, solid material with 300 mm ribs Working height approx. 800 mm - Measuring arm can be manually moved, measuring range X=1970 mm, Y=815 mm, Z=840 mm - With 3-axis digital display Grundig MZ 1030 - 5 adjustable feet Space required L x W x H 2500 x 1500 x 2500 mm Weight 3000 kg Very good surface finish

Condition: good (used), machine/vehicle number: 565301951 / 565201951, Accessories Indexing tables BWF SII, 40 pieces Travel measuring system Renishaw Measuring plate 1 X = 8100 mm Y = 1750 mm Z = 300 mm Measuring plate 2 X = 8100 mm Y = 2000 mm Z = 300 mm Measuring volume Dsdpfx Aasdfddzj Hskp X = 7300 mm Y = 1600 mm Z = 2800 mm The machine can be modernized with new software according to customer requirements. Price: on request! Installation and commissioning possible! We will gladly prepare a detailed offer for you! Note: Our offer is exclusively for professional customers! (Changes and errors in the technical data, specifications, and prices, as well as prior sale, are subject to change!)

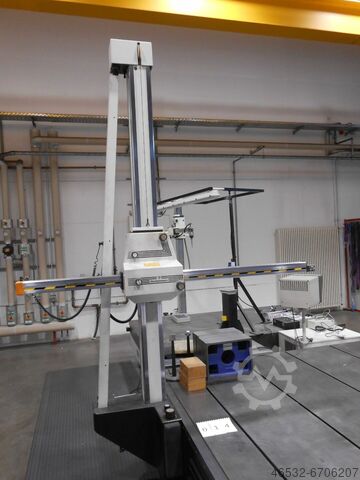

Year of construction: 1990, condition: excellent (used), machine/vehicle number: 432309901, Technical specifications Manufacturer: Stiefelmayer Type: C-MAN Serial number: 432309901 Year of manufacture: 1990 Column cross-section: 160/160 Cross arm: 80/80 Dksdpohpza Uofx Aa Hsp Measuring range X = 4400 mm Y = 1600 mm Z = 1800 mm The machine can be upgraded with new accessories according to customer requirements. Price: upon request! Installation and commissioning possible! We will gladly prepare a detailed offer for you. Note: Our offer is exclusively aimed at specialist customers. (Subject to changes and errors in the technical data, information, and prices, as well as prior sale!)

Year of construction: 1999, condition: excellent (used), machine/vehicle number: 105220 / 105221, Technical Specifications Manufacturer: ZEISS & Stiefelmayer Type: SMM C Year of Manufacture: 1999 Measuring Table Length = 6000 mm Width = 2500 mm Weight = approx. 10 t Equipment 2 SMM stands incl. RDS heads Control cabinets 2 ZEISS Dynalog P3 operator panels Access platform on the left and right The machine can be modernized with new accessories according to customer requirements. Price: on request! Dkodpsfrbg Iefx Aa Hjp Installation and commissioning possible! We will gladly prepare a detailed offer for you. Note: Our offer is exclusively for professional customers. (Subject to changes and errors in technical data, information, and prices, as well as prior sale!)

Condition: excellent (used), machine/vehicle number: 26720686, Measuring plate X = 3000 mm Y = 6000 mm Dksdpfjff Ea Hox Aa Hjp Price: upon request! We will gladly prepare a detailed offer for you! Note: Our offer is exclusively for specialist customers. (Changes and errors in technical data, information and prices, as well as prior sale, are reserved!)

Year of construction: 1999, condition: good (used), Technical Specifications Type: SMM-D Manufacturer: ZEISS Design: Stand-alone design, single and multi-stand versions Drives: High-dynamic DC servo drives, electronically monitored in all axes Control System: Multi-microcomputer system with 3-axis vector control for optimal control performance 4th and 5th axis rotary-swivel unit DSE 05 Control panel for operation at a remote measuring location Manual control of measuring device and DSE 05 via control lever with progressive characteristics, switchable to slow speed Protection class IP 54 for control system and control panel Display of workpiece or device coordinates via display on the control panel or on the screen on the computer Dedpfx Aajcilvve Hskp Measuring Plate X = 16000 mm Y = 6100 mm Measuring Volume X = 8000 mm Y = 3100 mm Z = 2700 mm Probe Head Rotary-Swivel Unit DSE 05 Motorized rotation in two orthogonal axes by +/- 180° each Incremental measuring system with 0.5 µm resolution Angular velocity up to 40°/second Angular position deviation +/- 3° Max. torque: 140 Nm Max. sensor weight: 1000g Reproducibility

Year of construction: 2001, condition: excellent (used), Technical Data Manufacturer: ZEISS / Stiefelmayer Type: SMM C Year of Manufacture: 2001 Dksdpjiwurcsfx Aa Hsp Measuring Range X = 12,000 mm Y = 2 x 1,400 mm Z = 2,100 mm Measurement uncertainty U3 = (50 + L/40) µm
