Coordinate Measuring MachineZeiss
SMM-D
Machine data
- Machine type:
- Coordinate Measuring Machine
- Manufacturer:
- Zeiss
- Model:
- SMM-D
- Year of construction:
- 1999
- Condition:
- good (used)
Price & Location
- Location:
- Seestraße 21, 85095 Denkendorf/Bitz, Deutschland
Details about the offer
- Listing ID:
- A233-6305
- Update:
- 29.08.2024
Description
Type: SMM-D
Manufacturer company: ZEISS

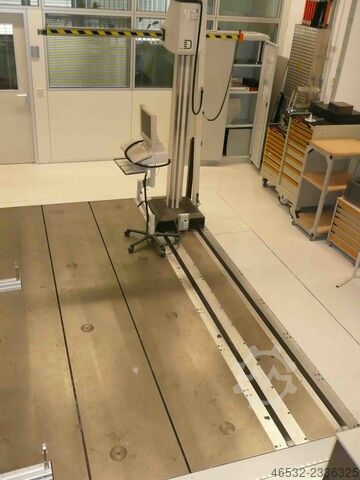

Type of construction: single- and multi-pedestal design
Drives: Highly dynamic DC servo drives, electronically monitored in all axes
Control system:
Multi-microcomputer system with 3-axis vector control for optimum control behaviour
4th and 5th axis rotary-pivot device DSE 05
Control panel for operation at remote measuring location
Manual control of measuring device and DSE 05 via control lever with progressive characteristic,
switchable to creep speed
Protection class IP 54 for control and operating panel
Display of the workpiece or device coordinates by display on the control panel or via the
screen on the computer

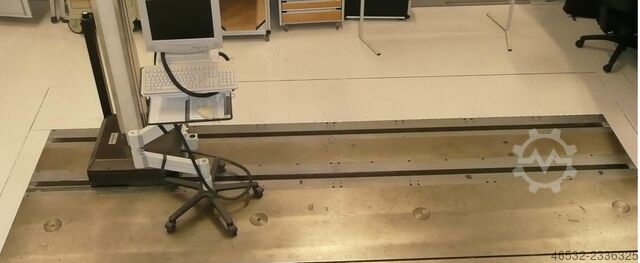

Measuring plate
X = 16000 mm
Y = 6100 mm
Measuring volume
X = 8000 mm
Y = 3100 mm
Z = 2700 mm
Psdpfjcilvvsx Ac Hsha
Scanning head rotary swivel unit DSE 05
Motorized rotation in two orthogonal axes by +- 180° each
Incremental measuring system with 0.5* resolution
Angular speed up to 40°/second
Angular position deviation +- 3
max. Torque: 140 Nm
Max. Sensor weight: 1000g
Repeatability <=1µm/200mm
Performance data
Length measuring systems: electro-optical incident light system, resolution 1µm
Travel speed: Automatic mode: 0 - 150 mm/s
set-up mode: 0 - 80 mm/s
Installation and commissioning by our service partners possible.
Price: on request
We will be happy to provide you with a detailed offer.
Note: Our offer is directed at
The listing was translated automatically. Translation errors are possible.
