END CUTTING SAW ELECTRONIC PUSH FEED

Stromab TR 500 MATRIX

Condition: new, Year of construction: 2025, Dimensions (L/W/H) 0x0x0 mm Weight 1000 kg Total power requirement 8,5 kw Nsdpev A Htdsfx Ac Hjlk

Condition: excellent (used), Year of construction: 2009, PRATTO Mesh Welding line for 3D fence panels (and light mesh for construction use) Model Starweld POB-36-2100; Nsdpfxsudipfs Ac Helk production of mesh panels and 3D/bent mesh panels; mesh width: 2100mm; wire dia. longitudinal + cross wires: 3-6mm; line wire spacing min.: 50mm; cross wire spacing min.: 25mm; SPM: up to 140; 5 x 250 KVA transformers; max. number line wires: 42 with 50mm wire spacing; max. length of panels: 6000mm (20′); line consists of: payoff system; straightening-propulsion for longitudinal wires; loop LAR; powered straightening; cross wire payoff unit; cross wire loop; auto cross wire feed; welder; mesh trimming shear; mesh bending press; mesh ejection + stacking-turner; exit rolls

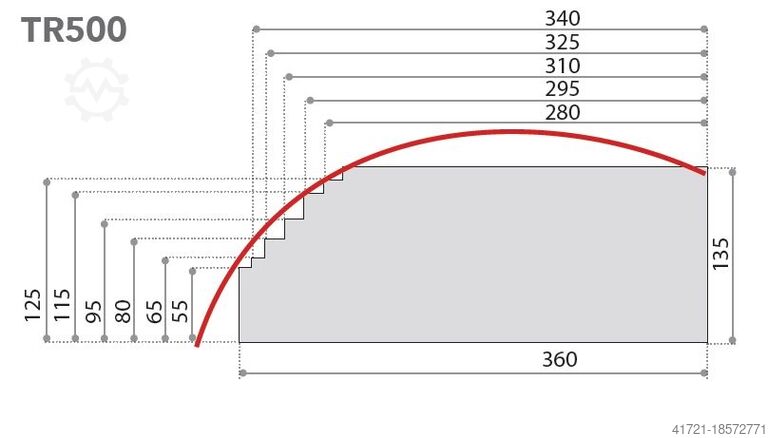

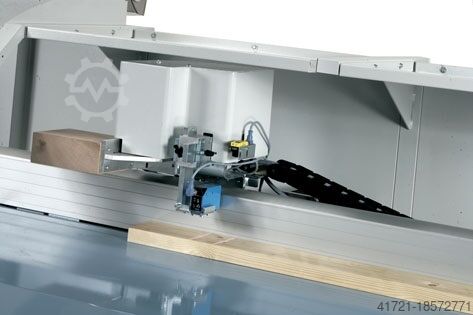

Condition: new, Year of construction: 2024, Cutting capacity: 55x360, 80x340, 95x325, 125x295, 135x280 mm Minimum work piece thickness mm.10 Working table tilted 8° Cutting unit technical features: Pneumatic upstroke saw TR500 Motor power 10 HP (7,5 kW), Volt 400/50 Hz. TCT Blade dia.500 mm., F=30 Z=144 S=4,6 Cutting cycle speed: 4 seconds Push feed system technical features: PUSH FEED SYSTEM AVAILABLE LEFT AND RIGHT SIDE Feeding by rack and pinion system and brushless motor Positioning precision +/- 0,4 mm Strong infeed motor for a packet weight of 80 kgs Maximum push feed system speed 90 m/min Pneumatic rising of the pusher at the end of the cutting cycle and overhead returning. Data entry management: 12 inch TOUCH-SCREEN Controller (800x600 pixel) USB Port Ethernet Port LINUX Operating system Loading and save machine parameters via USB Port Cutting cycle (pattern) editing and entered directly on the controller Transfer of cutting lists created by PC via USB or Ethernet Port Working software: Manual input of loading board length Partial optimization without length reading of the board Cutting cycle with 3 optimization options (Maximum length, Sequence and Board sequence) N°1000 cutting lists made up of 11 sizes or one list of 10000 sizes in sequence Package "OPTI": automatic board length detection and full optimization. Piece length reading by photocell Cutting cycle: with 6 optimizing criteria: (Longest length, Sequence, Board sequence, Volume, Minimum waste and Priority length) Package "OPTI PLUS": total optimization with knots and defects removal (OPTION NOT INSTALLED ON THE MACHINE) Nljdpfxshw Ng Ij Ac Hek Technical Description: Package "OPTI PLUS": for knots and defects removal Photocell for reading wood mapping knots and defects Marking with fluorescent chalks/crayon (Note Ð Can only be ordered in combination with ZA250) Pneumatic side clamp device

Condition: excellent (used), Year of construction: 2019, UV ink printer, year of manufacture and installation 2019 - production Japan According to the attached counter capture - 1,551 operating hours and 37,000 sqm printed. Perfect working condition - equipment is in production and can be viewed / tested Working table and material dimensions: Fixed table with dimensions of 125 X 250 cm and payload of 34 KG; Maximum material thickness - 5,08 cm; High power vacuum system - 6 vacuum zones; 5 pneumatic guides. Minimum per support with guides 60X80 cm; Printing heads: 2 piezoelectric heads 636 nozzles per channel and variable drop between 6 and 42 picolitres; Maximum print area covered by the heads is 126 X 251 cm for edge to edge printing; Nozzle detection and compensation system; Automatic self-cleaning optional not mandatory. Number of colours : Digital Printer UV ink; 4 colours - CMYK (Cyan, Magenta, Yellow, Black) with the possibility to reactivate 6 colours white + transparent colourless lacquer. Resolution and Productivity : Maximum resolution 1440 dpi; Express speed - 58,7 mp/hour; Production speed - 35,7 mp/hour; Quality speed - 25,3 mp/hour; Quality speed 2 layers - 12,5 mp/hour; UV ink barrels - minimum 1 litre. Accuracy: Line thickness: Maximum error +/- 0.8 mm per 2.5 m side; Maximum error +/- 0.4 mm on 1.25 m side. Straightness: Maximum error +/- 0.7 mm on 2.5 m side; Maximum error +/- 0,5 mm on 1,25 m side. Diagonal error: Maximum error +/- 1,0 mm on 2,5 X 1,25 m. Other: Patented solution to achieve grey gradients; Stand/Working stand Nodpfx Aemcw S Ssc Holk Ionizing bar (electrostatic discharge) Special bridge for loading and moving equipment. EXW - old price 49.000 euro - new price 35.000 (without VAT in EU)

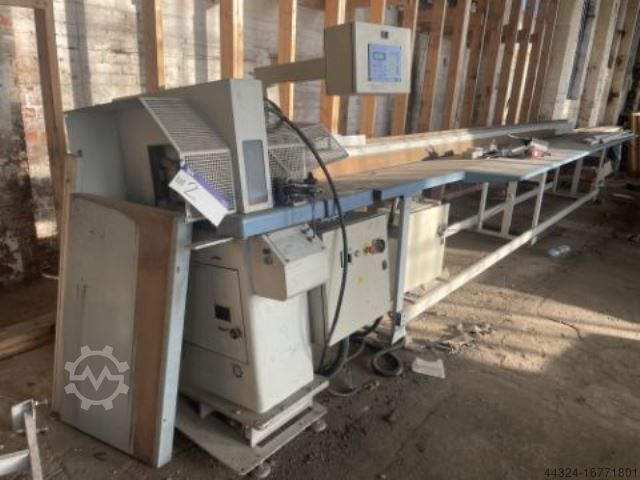

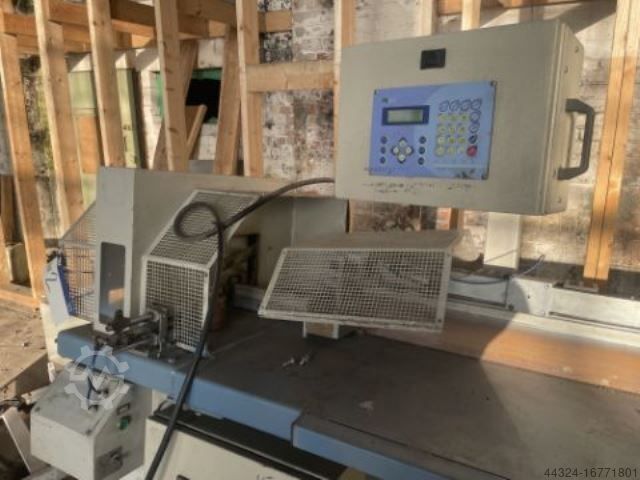

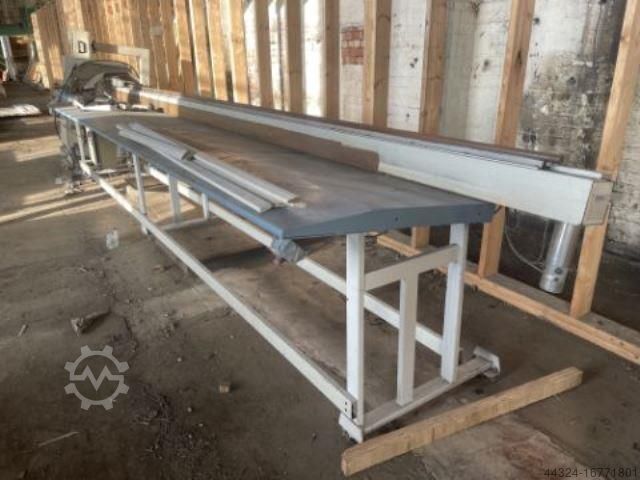

Condition: used, Year of construction: 2007, machine/vehicle number: 1377, SECOND HAND PNEUMATIC END CUTTING SAW STROMAB MOD. TR500 - CE RULES - with electronic positioning stop TIGERSTOP of 4000mm - infeed roller table of 4500mm - outfeed roller table of 4500mm Nljdpfot U Izpox Ac Hok - blade diameter: 500mm - maximum cutting capacity: 360 mm (L) at 60 mm (H), 135 mm (H) at 280 mm (L) - 10 hp motor - 415 volts - serial number: 1377 - year 2007

Year of construction: 1989, condition: good (used), Sell 2 sinker EDM machines Complete with filter, divider, tools, smoke evacuation Nedpfx Acehgrnhe Helk

Condition: excellent (used), Complete production plant for production of 3D fence panels Nsdotywvuopfx Ac Hslk Plant consist of - Mesh line for 3D fence fully automatic ( Brand - PRATTO ) Powder coating line for 3D fence panels ( like new...only installed and tested) Please contact us for more details.

Year of construction: 2015, condition: like new (used), machine/vehicle number: UTZ0901438929, Used SERMAC model Star SCM60C Trailer Mounted Concrete Pump (2015) The production year 2015. Maximum output of 60m³/hour fitted with an FPT-Iveco 4-cylinder water-cooled 108hp diesel engine. Complete with 7" diameter output. Mounted on single axle fast towing a trailer for site use only, 5 manually operated stabiliser legs, towing bracket with the eye, separate water tank with a high-pressure water system for washing down, auto greasing system and emergency toolkit. The pump is in good condition. Sold without transfer/working piping. Price Euro 33.000 Euro + VAT, FCA: Oradea/Romania We sell this “line as it is” Nlodpfx Acjg Igkio Hjk Irrtum, Anderungen und Zwischenverkauf vorbehalten / Subject to errors, changes and prior sale / Ne rezervăm dreptul la greșeli, modificări și vânzare We speak English. /Wir sprechen Deutsch./ Beszélünk magyarul. /Nous parlons français/Vorbim romana
