CNC lathe

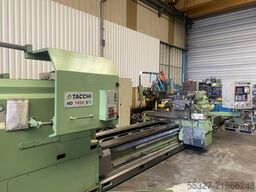

tacchi HD1450

Condition: excellent (used), Tacchi HD/1450 X 4M Large Spindle Bore (515mm) Year 2002 Siemens CNC Control Swing over bed 1450mm Swing over saddle 1000mm Gjdpfxjxg Ivds Afujkc Hollow spindle 515mm Chucks front and rear of Headstock Speed range 1.5 – 450 rpm 15,000kg weight between centres Baruffaldi 4 way Auto Toolpost 2 x 3 point steadies

Condition: good (used), Year of construction: 2008, turning length: 12,000 mm, spindle motor power: 60,000 W, total height: 3,800 mm, total length: 23,000 mm, total width: 7,600 mm, swing diameter over cross slide: 1,520 mm, turning diameter over bed slide: 1,140 mm, workpiece weight (max.): 20,000 kg, overall weight: 58,000 kg, Equipment: documentation/manual, CNC Lathe Giuseppe Giana - GGH 1100/760 x 12.000 CNC MACH-ID 9439 Make: Giuseppe Giana Type: GGH 1100/760 x 12.000 CNC Control: Siemens 840 D-SL Year: 2008 3 bed way construction Bed width 1100 mm 3 x C-Type Steady rest on lower base with in feed 2 x Fixed steady rest 300 - 800 mm with 5 ton Gkodoyl Uh Sopfx Afusc 2 x Chip conveyor 4 Chuck 1000 mm Barafuldi 4 way turret head Swing over bed Ø: 1520mm Swing over cross slide Ø:1140mm DBC Turning Length: 12000mm Spindle bore: 155mm Spindle power: 60kW Bed width: 1100mm Tailstock spindle Ø: 310Ø Stroke pinole: 300mm Spindle taper: 1:4 taperMk Workpiece weight: 20000 Power: 80A Speeds / ranges: 0-800Rpm Feed rate X-Axis: 0-8000mm/min. Feed rate Z-Axis: 0-8000mm/min. Length: 23000mm Width: 7600mm Height: 3800mm Weight: 58000kg

Condition: excellent (used), Tacchi HD/1450 – 725 x 4000mm CNC Lathe (2012) Serial Number: 7264 Year: 2012 Control: Fanuc OiTD CNC Condition: Used – good working order Technical Specifications: Centre height: 725mm Swing over bed: 1450mm Swing over cross slide: 1000mm Distance between centres: 4000mm Main drive motor: 60 kW Gsdsxc In Sepfx Afuskc Maximum weight between centres (unsupported): 15,000 kg Spindle speed range: 1.9 – 560 rpm Features & Equipment: 2 x 3-point steady rests Handwheel Swarf conveyor 4-position hydraulic toolpost 4-jaw chuck Fanuc OiTD CNC control

Condition: good (used), Year of construction: 1996, Manufacturer: Tacchi Model: HD 1450 CNC STI Year of manufacture: 1996 Control: NUM Godpfoy Ny I Tox Afuekc With accessories. In excellent condition. Technical specifications: Swing diameter over bed: 1,450 mm Swing diameter over cross slide: 1,000 mm Chuck diameter: 1,200 mm Maximum turning length: 4,000 mm Spindle bore: 150 mm Spindle speed: 560 rpm Capsule holder Machine weight: approx. 15 tons

Condition: used, WEBSTER & BENNETT EV 36” HIGH SPEED VERTICAL BORER MAKE WEBSTER & BENNETT, MADE IN ENGLAND MODEL EV 36” TABLE DIA 915 mm SWING 1168 mm HEIGHT UNDER RAIL 533 - 1016 mm SPEED 13.5 - 300 rpm FEED RATE 0.005-0.250 inch/min MAIN SPEED 40 HP PLUS HIGH SPEED TAABLE EV SERIES MACHINE Gkodpsxp Na Nofx Afuec ELEVATING RAIL SAFETY GAURDING SET OF JAWS FULLY FUNCTIONAL GOOD SLIDES

Condition: used, Technical details: Gkedpfox Ngzysx Afujc turning diameter over bed: 3800 mm turning diameter over slide rest: 3200 mm turning length: 12000 mm faceplate turning speed range -stepless-: 2 - 200 U/min max. workpiece weight: 90.000 kg bed width: 4000 mm 2 steadies *

Condition: used, Year of construction: 1973, functionality: unexamined, Vertical Turret Lathe - Double Column | Brand: TITAN | Type: SC 2500 Year of manufacture: 1973; modernization in 2011 to Siemens SINUMERIK 840D sl control system The machine is a ‘TITAN’ model, i.e. from a Romanian manufacturer. However, the design is licensed from SCHIESS in Düsseldorf and is therefore comparable to the well-known SCHIESS machines from that period. Gkjdpfjzlb H Tjx Afuec The machine was professionally disassembled by technicians from the machine manufacturer SCHIESS, properly preserved and placed in storage by the owner. TECHNICAL SPECIFICATIONS / EQUIPMENT: - Faceplate diameter: 2.500 mm - Swing diameter: 2.600 mm - Max. workpiece weight: 12 tons - Turning height: 1.600 mm - Number of turning supports / RAMs: 2 * Ram dimensions: 250 x 210 mm each - Main drive: 55 kW EQUIPMENT: - CNC control: Siemens SINUMERIK 840D sl - Tool turret (right) - Chip conveyor Dimensions / Weight: - Installation area: 5.600 x 4.800 mm - Hall space inc. operating and service areas: approx. 7.000 x 7.000 mm - Machine height: 6.200 mm - Machine weight: approx. 45 tons There is no guarantee for correctness and completeness of the technical details and accessories. - Subject to prior sale -

Condition: used, turning diameter 1.600 mm max. swing diameter 1.700 mm control SIEMENS - 840 D faceplate turning speed range 1 - 320 U/min rapid traverse 3.000 mm / min feed range 1 - 3.000 mm/min size of pallet 1.168 mm numbers of pallets 2 main drive 55 kW Vertical turret lathe with cnc | SCHIESS MOWEG - BERTHIEZ TFM 125 Gkjdpfovp Shgex Afujc has been overhauled by SCHIESS MOWEG (RETROFIT) in 2007. The machine video from the production plant will be shared on request. The machine is in very good condition and was in operation at an aviation company until recently. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: TFM125 | TFM-125

Condition: good (used), travel distance X-axis: 12,000 mm, travel distance Y-axis: 7,300 mm, travel distance Z-axis: 3,000 mm, total length: 30,000 mm, table length: 12,000 mm, table width: 4,730 mm, total width: 12,000 mm, total height: 10,475 mm, table load: 250,000 kg, overall weight: 400,000 kg, Make : Waldrich - Siegen - Typ : PF-F-150(1)-530/400 - No. : 11.093/0 - Age : Overhault 2004 ( Euro 2.2 Mil) X Travel : 12.000 - Y Travel : 7.300 - Z Travel : 3.000 - W Travel : 4.000 - Between column : 5.000 - Table width : 4.730 Gedpfoytrxkex Afujkc - Table length : 12.000 - Table load : 19 t / mtr. Ca. 250 ton - Table feed : 10.000 mm/min. - W axis : 3.000 mm/min. - T axis : 6.000 mm/min. - Cross adj. milling head : - Vert. adj. cross rail : - Horizontal hydrostatic spindle ram - Milling spindle Ø : 560 - Milling tool taper : iso 60 - C axis feed : 5.000 mm/min. - Milling motor : 90 kW - Spindle speed : 2.500 R/pm - Z axis stroke : 3.000 - Z axis feed : 2.000 mm/min. - Milling Küma Angle head WF2 90 kw- 450 - Milling Küma Uni. UB1D 60 kw - 2400 - Milling Küma Fixed GB1D 90 kw- 2400 - Milling Küma Angle head WF1? - Electric requirement : 3 x 400 V / 50 Hz - Power requirement : 600 kVA / 630 Amp - Capacity 4.000 L coolant true spindle 20/40 Bar Machine is rebuild in 2004 by Schiess Bed – Table assembly group: * Renewal of sliding lining * Grinding of guideway * Renewal of table drive * Direct linear measuring syst. * Hydrostatic Portal and cross rail: * Modification of adjusting spindle trape Zoidal spindle was recplaced with ball screw * Direct linear measuring syst. * New drive motors for relization of higer speed on feed axes of milling support. * New milling support with hydrostatic guideways Electric system: * Complet elctric cabinet switchgear * Complet new wire * Siemens Sinumrik 840 D in 6 axis !! Equipment / parts : * Complet new raumag janich covers * Complet new double chip conveyor * Complet with big tooling packet * Complet with big mounting equipment - Under power in Europe - Free directly - Controlled axis X / Y / Z / W / C / B axis - Over all height : 10.475 mm - Over all width : 11.934 mm - Over all length : 30.000 mm - Total weight : ca. 400.000 Kg Rebuild in 2004 for EUR 2.200.000 !This CNC Waldrich Portal milling machines was used in the Energie Field for steam turbien case machining. Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Year of construction: 2010, condition: ready for operation (used), - USED - CNC DOUBLE RAM VERTICAL LATHE MAX ROTATING DIAMETER: 3000 mm MAX TURNING HEIGHT: 800 mm MAX TURNING DIAMETER: 2800 mm SPINDLE: 1-160 rpm; 71-114 kW; 68500 Nm; 2500 mm X-AXIS TRAVEL: -150+1780 mm Z-AXIS TRAVEL: 900 mm RAPID FEEDS X-Z: 8 - 10 m/min TOOL MAGAZINE: BASKET-TYPE ; TYPE CAPTO C5; 24 POS. POS CONTROL UNIT: SIEMENS 840D MAX ADMITTED LOAD: 15000 Kg WEIGHT: 54000 Kg ACCESSORIES: SWARF CONVEYOR ; TOOL SETTER ; AUTOMATIC DOOR ; HEAD COOLING SYSTEM ; PORTABLE HANDWHEEL ; Godpfx Aeyyrh Hjfuekc TOUCH PROBE
