TEUREMA EHS-110 WIRE DRAWING LINE
TEUREMA EHS-110

Name: TEUREMA EHS-110
Brand: TEUREMA
Availability: InStock

Year of construction

1999

Condition

Used (fully functional)

Location

Pedro Muñoz Spain

TEUREMA EHS-110 WIRE DRAWING LINE TEUREMA EHS-110

Show map

Machine data

Machine type:: TEUREMA EHS-110 WIRE DRAWING LINE

Manufacturer:: TEUREMA

Model:: EHS-110

Year of construction:: 1999

Condition:: refurbished (used)

Functionality:: fully functional

Price & Location

Location:: Pedro Muñoz, Spain

Call

Technical details

Drawing speed:: 10,000 mm/s

Inner diameter:: 600 mm

Load capacity:: 3,000 kg

Wire diameter (max.):: 14 mm

Details about the offer

Listing ID:: A217-78178

Update:: 05.05.2026

Description

Year of manufacture 1999
Maximum speed 10 m/s
Total installed power 230 kW
Key status Complete electrical modernization

TEUREMA EHS-110 wire drawing line, a heavy-duty industrial machine equipped with a Tecno Impianti drawing bench and designed for reliable production performance. The line has undergone a complete electrical modernization, including a new main electrical cabinet, Siemens S7-1500 PLC, Siemens HMI 1200, 100% new wiring and new push-button stations, significantly improving reliability, maintenance and overall operation.

Line configuration

Pay-off stands 2 tilting pay-off units. Maximum coil weight per unit: 3,000 kg.
Vertical pay-off tower 6-meter tower with lifting and lowering carriage operated by hoist.
Descaler Mechanical descaler.
Lubrication box 1.5 kW motor at 1,500 rpm.
Bwsdpfx Adoy Ex Ece Aol
TECNO IMPIANTI drawing bench 2 passes. Double-ring capstan: Ø 610 mm and Ø 760 mm. 3-speed gearbox: 3.90 / 7.20 / 10.00 m/s. Power: 160 kW. Frequency: 50 Hz.

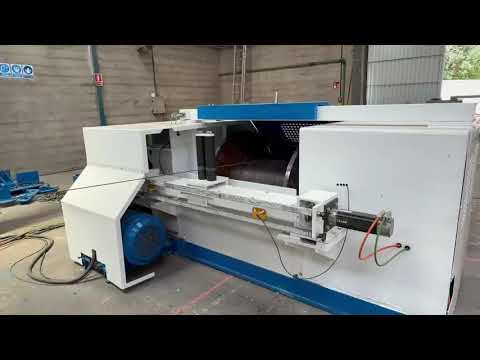

Horizontal coiler Horizontal drive. Maximum coil weight: 3,000 kg. 2-speed gearbox: 7.3 / 10.0 m/s. Maximum coil diameter: Ø 1,200 mm. Core diameter: Ø 600 mm. Useful spool width: 900 mm. Power: 45 kW.

Technical data
• Incoming wire diameter: 5.5 to 14 mm
• Outgoing wire diameter: 4 to 12 mm
• Number of blocks: 1 vertical
• Maximum line speed: 10 m/s
• 2 x CL30 A 33 Eurolls cassettes
• Rollers: Ø 150 x Ø 90 x 15/20 mm
• Total machine power: 230 kW
• Frequency: 50/60 Hz

Electrical and automation upgrade
• Completely new main electrical cabinet
• Siemens S7-1500 PLC
• Siemens HMI 1200
• 100% new wiring
• New push-button stations

This line combines the strength of a proven industrial machine with a complete upgrade of its electrical and control systems, making maintenance easier, improving reliability and simplifying integration into modern production environments.
Available services
• Installation
• Assembly
• Commissioning
• Technical assistance

TEUREMA EHS-110 wire drawing line, manufactured in 1999, equipped with a Tecno Impianti drawing bench and capable of operating at speeds of up to 10 m/s. The machine features a complete electrical modernization with a new main electrical cabinet, Siemens S7-1500 PLC, Siemens HMI 1200, completely new wiring and new push-button stations, offering a robust, reliable and production-ready industrial solution.
