Centre lathe

TOS SUS 63/5000

Condition: used, Year of construction: 1965, There are two WMW SU 315x3000 available, connected load machine 1/ 2: 12.6/ 12kW, weight machine 1/ 2: 8.2/ 9t, machines need overhauling. Gsdpfxexg Ihgo Aagobn

Condition: like new (used), Center height over bed: 330 mm, max turning diameter over carriage: 408 mm, max turning diameter over bed: 640 mm, max turning diameter in gap: 899 mm, distance between centers: 2000 mm, variable spindle speed, rpm: 18-1500, spindle bore diameter: 105 mm, spindle nose: ASA 11”, tailstock: MT5, quill diameter: 90 mm, travel: 250 mm. cross slide travel: 275 mm. main motor: 15 hp. machine weight: 3450 kg. Gbsdpfxox Dikke Aagsn

Condition: excellent (used), Mostana 1M65 x 5000mm Centre Lathe Year 1991 Serial Number 3892 Distance Between Centres 5000mm Swing Over Bed 1000mm 3 Point Steady Sliding Chuck Guard Tailstock Godpfx Aasxwkvhjgobn Power feed to compound

Condition: ready for operation (used), Year of construction: 2018, spindle speed (max.): 5,000 rpm, travel distance X-axis: 234 mm, travel distance Y-axis: 100 mm, travel distance Z-axis: 625 mm, controller manufacturer: MAZATROL, controller model: Mazatrol SmoothG CNC, workpiece diameter (max.): 695 mm, This 4-axis Mazak QUICK TURN COMPACT 200 MSY L was manufactured in 2018. It features a maximum swing of 695 mm and a machining diameter of 380 mm. Equipped with a Mazatrol SmoothG CNC control system, it ensures precision and efficiency. The main spindle supports up to 5000 rpm, while the second spindle reaches 6000 rpm. A great opportunity to buy this Mazak QUICK TURN COMPACT 200 MSY L lathe. Contact us for further details. Gbedpfsyk Tg Rex Aagen Machine Benefits Technical Machine Benefits 1. Capacity:- Maximum Swing: 695 mm- Maximum Machining Diameter: 380 mm- Maximum Bar Work Capacity: 65 mm2. Spindle:- Main Spindle Chuck Size: 8 inches- Main Spindle Maximum Speed: 5000 rpm- Second Spindle Chuck Size: 6 inches- Second Spindle Maximum Speed: 6000 rpm3. Turret:- Number of Tools: 12- Maximum Speed: 5000 rpm4. Axes Travel:- X Axis: 234 mm- Y Axis: 100 mm- Z Axis: 625 mm- W Axis: 585 mm5. Control System:- Mazatrol SmoothG CNCInstalled Options : EIA / ISO programming Spiral machining EIA 3D compensation Rotation function Geometric functions Scaling External data I/O Shape compensation Thread cutting cycle Sub C-axis control Inverse time feed Polar coordinate input G54.1 additional work offsets Synchronous mill tapping Variable 600 macro sets Cylinder & polar coordinate interpolation EIA helical tap cycle EIA pattern cycle Seamless corner control Variable acceleration control Rapid overlap Lead error compensationMachine Hours : Power on time: 12,929 h Auto operation time: 17,565 h Auto cutting time: 15,375 hEquipment included: Turrets: 2 × revolver head – one on each side of the machine Driven tools: 1 × driven tool on the Z axis 1 × driven tool on the X axis Tool holders: Fixed holders for drilling Fixed holders for external turning Extra Information Full equipped version with C axis / Y axis / Subspindle / Long bedMachine still under power

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, SFM Sunfirm CNC lathe in good working condition. Specifications: Swing diameter over bed: 1520 mm Swing diameter over cross slide: 1100 mm Swing diameter in gap: 1800 mm Gbsdpfxow Uqf Ss Aagsn Distance between centers: 3000 mm Spindle speed: 6–500 rpm in 4 steps Z-axis travel: 3300 mm Bed width: 850 mm Control: FAGOR 8055 8-position turret Motor power: 30/37 kW Accessories: 4-jaw chuck 1400 mm Chip conveyor 8-position turret Steady rest

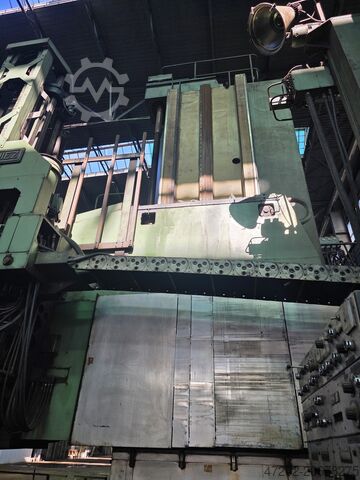

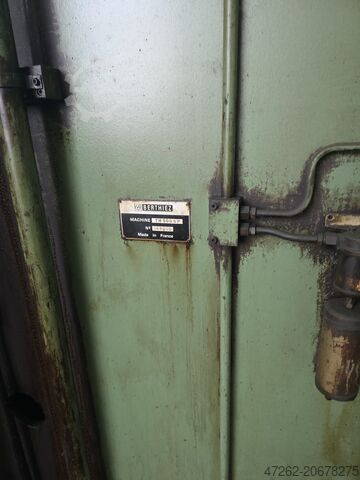

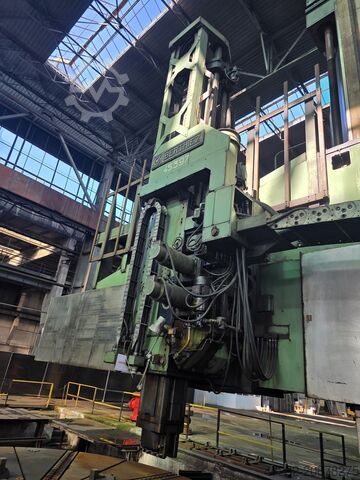

Condition: ready for operation (used), Year of construction: 1979, VTL BERTHIEZ (France) TM 500 SP Model: TM500 8P Year of Manufacture: 1979 Chuck diameter: 6300 mm Max. turning diameter: 15000 mm Max. workpiece height: 4000 mm Gjdpfxex Dbydo Aagsbn Arm travel: 3600 mm Main motor power: 100 kW Max. workpiece weight: 80 tons Side tool post section: 360x360 mm Side tool post travel: 2500 mm Machine weight: approx. 230 tons Video available Milling and hobbing heads available

Condition: good (used), Year of construction: 2013, Swing over bed 660mm, maximum machining diameter 350mm, maximum machining length 540mm, bar capacity 65mm, spindle speed 5,000rpm, Gsdpfoyna Ngsx Aagsbn 12 station turret, Mazatrol Smart control, swarf conveyor, & 3 jaw chuck.

Condition: reconditioned (used), Year of construction: 2015, functionality: fully functional, MAZAK QUICK TURN SMART 200M 500U Max. turning diameter: 360 mm Max. turning length: 532 mm Max. milling speed: 4,500 rpm Max. spindle speed: 5,000 rpm Max. bar diameter: 65 mm Machine is equipped with: - Mazatrol Smart CNC control - KITAGAWA three-jaw chuck BB-208, diameter 210 mm - Tool Eye - C-axis Gbedpsy D Awtsfx Aagjn - Interface for bar feeder - automatic parts catcher - NC tailstock - high-capacity coolant pump - chip conveyor, side ejection - 8 static tool holders - 2 driven tool holders

Condition: good (used), Year of construction: 1977, spindle bore: 360 mm, turning length: 2,000 mm, Oil Country Lathe Ø 970 x 2000 mm Double Hydraulic chuck Double chuck front and rear with 360 bore API Threading Cutter attachment Safety cover dfor front and rear chuck Conical turning carriage Multi fix tool system DBC Turning Length: 2000mm Swing over bed Ø: 970mm Swing over cross slide Ø:500mm Spindle bore: 360mm Gbjdjxf E Rcopfx Aagsn Spindle power: 22kW Stroke pinole: 360mm Spindle taper: 6Mk Speeds / ranges: 28-500Rpm Feed rate X-Axis: 4000mm/min. Feed rate Z-Axis: 2000mm/min. Length: 5500mm Width: 1900mm Height: 1900mm Weight: 10600kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: ready for operation (used), Year of construction: 2018, spindle speed (max.): 5,000 rpm, travel distance X-axis: 225 mm, travel distance Z-axis: 605 mm, overall weight: 4,950 kg, controller manufacturer: MAZATROL, controller model: Smooth C, number of axes: 2, Horizontal turning machine manufactured in 2018. This Mazak QUICK TURN 200MA L features a maximum workpiece diameter of Ø 360 mm and a maximum workpiece length of 535 mm. It is equipped with a spindle speed of 5,000 rpm and a turret with 12 VDI positions. If you are looking to get high-quality turning capabilities, consider the Mazak QUICK TURN 200MA L machine we have for sale. Contact us for further details. • Max Workpiece Diameter: Ø 360 mm • Max Workpiece Length: 535 mm • Max Bar Capacity: Ø 65 mm • Spindle Nose: A2-6 • Spindle Bore: Ø 76 mm • Turret Tool Station: 12 VDI positions Additional equipment Gbodpfx Aaeyuyh Ajgen • Chip extractor Technical Specification Counter Spindle Yes Driven Tools Yes
