CNC lathe with barfeeder

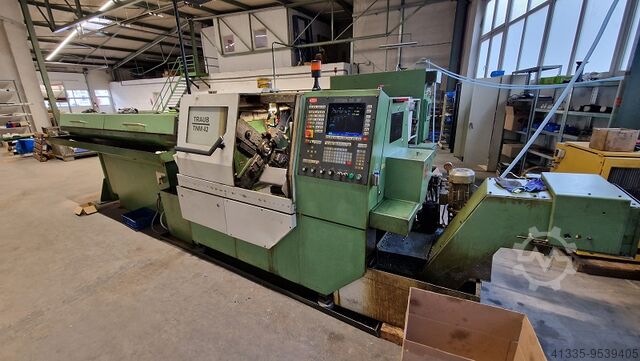

TRAUB TNM 42

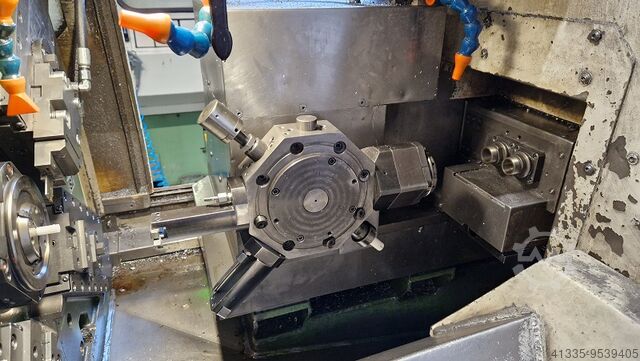

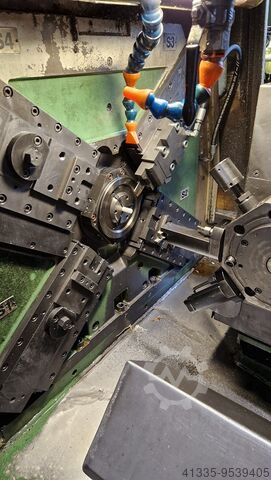

Condition: used, Year of construction: 1994, functionality: limited functionality, spindle bore: 42 mm, spindle speed (max.): 4,000 rpm, spindle motor power: 7,500 W, The machine is in continuous operation, producing hydraulic fittings from hexagonal 22 (automatic steel). It is a very rigid and efficient machine for simple components. The machine is equipped with a FETTE tangential thread cutting attachment. Two such machines are available; one is additionally fitted with a side drilling unit and a thread milling attachment with a large set of milling cutters. Both machines come with a large set of tool holders and collets. Price for both machines is negotiable. Isdpfx Agoxq Rz Dsqoa

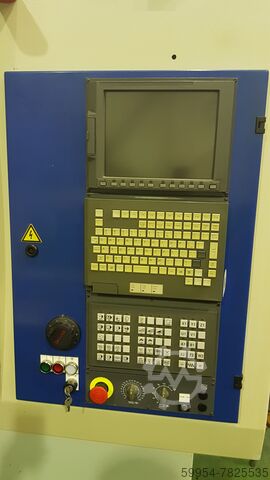

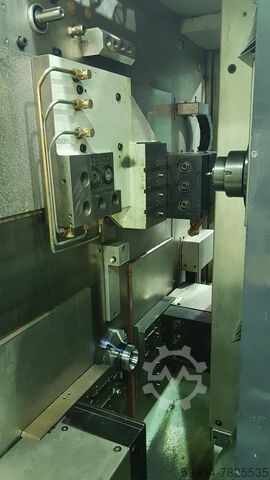

Year of construction: 2004, condition: excellent (used), Swiss type lathes MANURHIN K'MX overhauled with : – Spindle, counter spindle, geometry and changes of all non-conforming parts. Rotating tool on: rear comb, front comb, end unit, radial and axial counter operation C-axis on: main spindle and counter spindle Rigid tapping on: main spindle and backworking spindle Iodpfxeir Id Us Agqea High-pressure Predispo Year of construction 2004 – approx. 22 000 h

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, The positions of the rotating tools are: T01-02-03-04 / T22-23 / T34-35 - equipped with Iemca Boss 332E/32 new in 2006 - lot of collets / guide bushes - MSC-501 Control - the machine has always worked with oil. Iedpfxswpu Etj Agqja

Condition: good (used), Year of construction: 2008, - Control FANUC Series 18i-TB - max. bar Ø: 16 mm Isdstmu Rgopfx Agqja - max. speed - main spindle: 12 000 min-1 - max. speed - pick-up spindle: 12 000 min-1 - Headstock stroke: 130 mm - 3x rotating tools - Turning tools 4 + 4 - Bar feeder FMB minimag 18/3200 A

Condition: new, Year of construction: 2023, The K’MX 920 CLEVER sliding headstock automatic lathe is designed for machining complex workpieces up to Ø 20 mm. The lathe is equipped as standard with two electrospindles with a maximum speed of 12.000 rpm each. With its nine axes, comb + turret on three axes and independent end unit, this machine is capable of having four tools in the material for an optimised cycle time. 9 linear axis 1 independent rack with 10 positions Iedpfx Ajk Dz Diogqja Cross-section of outer tools 12 x 12 mm Turret number of stations 12

Condition: used, TECHNICAL DETAILS - Number of axes : 9 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 12000 [rpm] - Spindle power : 3,7/5,5 [kW] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 12000 [rpm] - Spindle power : 3,7 / 5,5 [kW] - C axis indexing precision : 0,001 [°] - Number of turrets : 1 LOWER TURRET - Number of positions : 12 - X/Z stroke : 90x65 [mm] - Y stroke : 50 [mm] - Number of guide bush holders : 2 GUIDE BUSH HOLDER 1 - Number of positions : 10 - Number of motorized positions : 4 - X/Y stroke : 90 / 319 [mm] END ATTACHMENT - Number of positions : 12 - X/Z stroke : 215x305 [mm] POWER SUPPLY - Supply voltage : 400 [V] Iodpfx Aeuhbdiogqea WEIGHT & DIMENSIONS - Machine floor space : 2000x1280 [mm] - Machine height : 1720 [mm] - Machine weight : 3600 [kg] MACHINE HOURS - Number of hours under power : 23167 [h] EQUIPMENT - CNC : Fanuc 31i-B - Interface : Ethernet / RS232 / USB / PCMCIA - 3 colors status lamp - Rotating guide bush - Parts catcher - Ejection of workpiece - Coolant tank - Bar loader : Iemca Elite 220 (2010) - Fire extinguisher * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

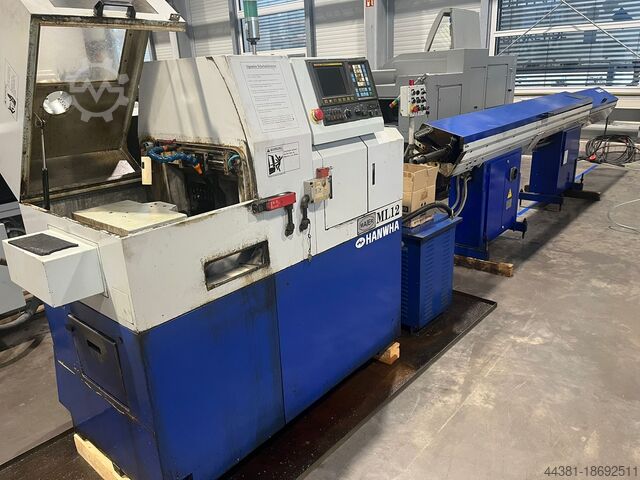

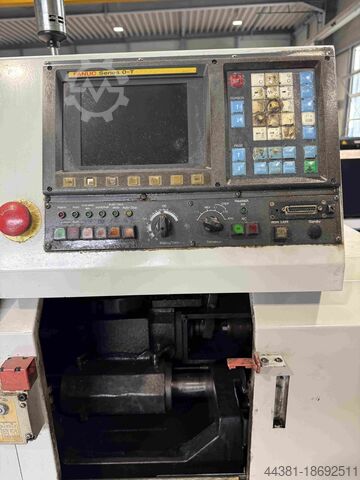

Condition: not inspected (used), Year of construction: 1999, Long lathe Hanwaha 12 with magazine, year 1999 Control: Fanuc O-T Number of simultaneous axes: 4 (Z1, X1, Y1, Z2) Number of simultaneous axes according to export control: 3 (Z1, X1, Y1) Linear axes: 3 (Z1, X1 & Y1) Circular axes: 0 Parallel axes: 1 (Z2) Accuracy / repeatability X, Z & Y: 0.03 / 0.02 mm TD Iedpfx Agjv Irp Uoqsa Maximum speed of the main spindle: 12,000 rpm Power of the main spindle: 2.2 kW Maximum bar diameter: 14 mm Number of spindles: 2 Tool holder: 5 tools 12x12 Counter spindle power: 0.4 kW Maximum speed of the Counter spindle: 6,000 rpm Accessories: Transformer, various Habegger pliers, Iemca CH112/32 bar magazine, transformer & documentation Machine condition: Used in production until recently

Condition: used, Year of construction: 1990, Technical details: spindle passage: 23 mm Ijdpfxou Iwyvs Agqsa z-axis: 150 mm turning length: 150 mm stroke: x+z Achse / Axis/eje/eixo/os = 30 mm facing movement (x-axis): 30 mm longitudinal traverse (z-axis): 30 mm control: Num 760T spindle turning speed - continuous: U/min feed speed: x/y: 5 mm/min feed speed: z: 10 mm/min tool turret: 2 Stück/pcs mit je/each 6 tools operating pressure: max. 45 bar total power requirement: 8,0 kW weight of the machine ca.: 2,2 t dimension machine xH: 2,45x1,3x2,2 m dimensions of the bar loader L-W-H: 4,65x0,5x1,3 m techn. details: - bar clamping hydraulic -automatic workpiece discharge (via catch basket) - 2 turrets with each 6 tool tapers - coolant device - control NUM 760 (size: L:1,0xW0,8mxH:1,56m) Zubehör: - bar loader magazine make IEMCA type CS 112/31 accessories: -24 div. tool tapers - device tool Sylvac system ( size:L:0,58xW:0,5xH:0,43m) *

Condition: used, Year of construction: 2001, Technical details: turning diameter: 33 mm turning length: 330 mm control: 840 total power requirement: 20 kW weight of the machine ca.: 6 t dimensions of the machine ca.: 3850,2000,2100 m 17 axes Ijdpfx Aew D Hh Aegqja 3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axes Barfeeder Machine On-time 58,133 hours *

Condition: excellent (used), Year of construction: 2004, functionality: fully functional, Description Isdpfxsvk E Nme Agqoa WE OFFER AN NICE WORKING CONDITION INDEX ABC 42 - TWO MACHINES WE HAVE AWAILIBLE TWIN SPINDLE TWIN TURRET INCLUDIN COMPLETE TOOLINGS AND SPARE PARTS MACHINE IS CONECTED ON POWER AND CAN BE INSPECTED UNDER POWER FOR CUSTOMER WE CAN ORGANIZE TRANSPORT AS WELL Machine Category CNC Turning- and Milling Center Make INDEX Type ABC 42 (*934) Year 2004 Control C200-4 / 840C Siemens Country of origin Germany Other information CNC - Turning- and MillingCenter INDEX - ABC 42 - two turrets - live tool stations - subspindle on upper turret - 1x back drilling device - with percussion unit - many accessories Technical Details Backside processing: C-Axis 0,001 ° change-time tool to tool 0,2 sec clamping diameter max. 42 mm clamping length max. 38 mm control C200-4 / 840C Siemens dimensions of the machine ca. 7,0 x 3,0 x 2,5 m Driven Tool Positions: 8 Feed force X: 8,3 / Z: 5,5 kN Fixed tools max. 5 pos Main spindle: max. Torque 7,5 Nm number of toolpositions 6 pos. power capacity - driven tools 3,3 kW power capacity - main spindel 13 / 21 kW rapid traverse X: 16 / Z: 24 m/min shaft cross cut 25 x 48 DIN 69880 spindle bore 15,5 mm spindle diameter in front bearing 85 mm spindle hollow 36 mm spindle passage 36 (42) mm Spindle speed - driven tools 6.000 min -1 Spindle speed range subspindle max. 4.500 min/-1 Subspindel: total power requirement ca. 30 kW travel -x axis 81 mm travel -z axis 80 mm turning length max. 280 mm turning speed range - main spindle max. 6.300 min/-1 Turret 1: Turret 2: weight of the machine ca. 3,0 t Accessories bar feeder Index LM 3200 Chip conveyor Coolantsystem Documents driven tool stations hydraulic system parts catcher Subspindle Turret 2x
