Press brake

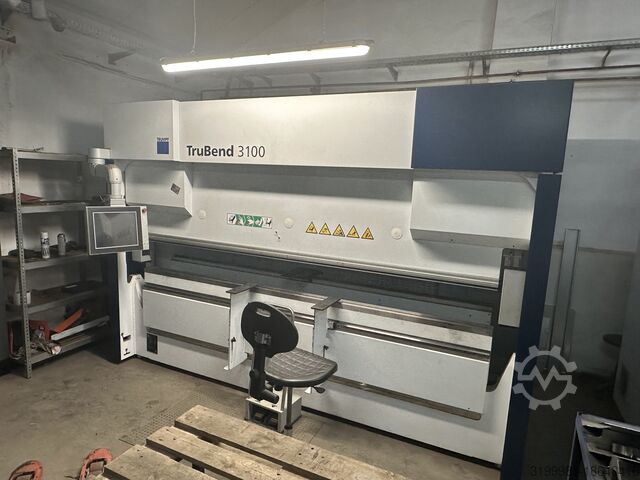

TRUMPF 3100

Condition: excellent (used), Year of construction: 2014, Used modern good condition Trumpf Trubend 3100 Series 3000 3metre CNC pressbrake for sale Used Trumpf Trubend 3100 B26 for sale 3metre x 100ton 6 axis pressbrake for sale. Brand/make: TRUMPF Model: TRUBEND 3100 b26 Type: CNC hydraulic Press Brakes Pgodpfx Afsqlapaepei New 2014 Location: United kingdom Low hours Specification: Tonnage: 100ton Type: hydraulic downstroke H frame pressbrake Overall Length 3.1 m /3metre 6axis in total with a 4xis back gauge Touch screen control Tonnage 1000Kn Stroke 200mm Brake time 60ms Springback max 10mm Safety distance 120mm

Condition: excellent (used), functionality: fully functional, Year of construction: 2009, Options: ACB, BendGuard for manual bending, HQ version, interface to 2nd machine Psdewykccepfx Afpogi

Condition: excellent (used), functionality: fully functional, Year of construction: 2016, working width: 3,100 mm, stroke length: 350 mm, pressing force: 100 t, working range: 3,100 mm, Used good condition Trumpf Trubend 3100 Series 3000 3metre CNC pressbrake for sale Used Trumpf Trubend 3100 B26 with extended stroke and daylight for sale 3metre x 100ton 6 axis pressbrake for sale Brand/make: TRUMPF Model: TRUBEND 3100 b26 Pjdpfxjv Hru Uj Afpjgi Type: CNC hydraulic Press Brakes New 2016 Location: United kingdom Specification: Tonnage: 100ton Type: hydraulic downstroke H frame pressbrake Overall Length 3.1 m /3metre 6axis in total with a 4 axis back gauge Touch screen control Tonnage 1000Kn Stroke 350mm Brake time 46ms

Condition: like new (used), functionality: fully functional, Year of construction: 2017, operating hours: 9,000 h, bending force (max.): 100 t, working width: 3,100 mm, stroke length: 350 mm, overall weight: 8,300 kg, Equipment: CE marking, A TRUMPF TruBend 3100 press brake from 2017, ready for immediate use and in like-new condition. This powerful and reliable machine is ideal for professional sheet metal work, delivering excellent precision and performance. The machine offers a maximum press force of 100 tons and is equipped with an advanced control system featuring graphical visualization. The machine has only 9,000 operating hours. Added benefit: With the purchase of this machine, one week of training at our facility is possible, ensuring you can start immediately and work optimally. Pgedpfxjybax Ue Afpoi Manufacturer: TRUMPF Model: TruBend 3100 Year of manufacture: 2017 For more information or if you have any questions, please feel free to contact us.

Condition: like new (used), functionality: fully functional, Year of construction: 2021, operating hours: 3,454 h, • Pressing force: 1000 kN • Bending length: 3060 mm • Usable installation height with manual or hydraulic tooling (Option: increased installation height): 350 mm (500 mm) • Usable installation height with TRUMPF Quick Clamp (Option: increased installation height): 430 mm (580 mm) • Max. distance between lower edge of press beam and upper edge of machine table (Option: increased installation height): 470 mm (620 mm) • Press beam tilting: ± 6.5 mm • Free distance between uprights: 3384 mm • Table width: 100 mm • Working height¹: 1049–1069 mm Speeds • Y-axis rapid traverse²: 200 mm/s • Max. Y-axis working stroke³: max. 15 mm/s • Y-axis return: 200 mm/s • X-axis: 500 mm/s • R-axis: 200 mm/s • Z-axis: 1000 mm/s Positioning accuracy • Y-axis: 0.01 mm • X-axis: 0.05 mm • R-axis: 0.1 mm Travel paths, backgauge zone • Y-axis stroke (Option: "Increased installation height"): 200 mm (350 mm) • X-axis travel: 600 mm • Max. backgauge zone in X-direction: 860 mm Podpfx Afsyfxdwjpegi • R-axis travel: 150 mm Control • Standard scope: T3500T Multi-Touch control Connection data • Connected load (IEC) approx.: 20 kVA Dimensions and weights • Required floor space (length x width): 3607 x 1644 mm • Height (Option: increased installation height): 2370 mm (2700 mm) • Weight (Option: "Increased installation height"): 7700 kg (8300 kg) Paint / Color scheme • Structural body: White = NCS S 0505 R80B • Blue = approx. RAL Design 250 20 20 • Black = RAL 9005; Silver elements with RAL 9006 Equipment Extended machine equipment BendGuard: – Optoelectronic safety device enabling fast and safe bending – Maximum Y-axis rapid traverse speed is not limited in pure foot-operated mode – Tool height can be set easily and quickly with a rack solution and weight compensation – BendGuard can be easily slid back for lateral tooling processes without reinstallation – BendGuard is insensitive to shocks (disassembly), as the unit electronics are not connected Table supports (2 pieces): – Table supports are manually adjustable in Z- and R-directions and can be fixed with quick-clamp – Facilitate handling of large and heavy workpieces and can serve as storage surface for finished parts – Load capacity: 70 kg per support LED work area illumination front and rear: – Excellent illumination inside and in front of the machine’s working area – Modern LED technology: energy-efficient, cool-running, and very long-lasting DXF import: – Import DXF drawings into the 2D control system.

Condition: used, Year of construction: 2021, Max. pressure 100 ton Pgedpfsxr U Nhsx Afpji Max. bending length 3060 mm Distance between uprights 3384 mm X-axis movement 600 mm Length of stroke (extended) 350 mm Daylight (Extended) 580 mm Automatic crowning on lower tool base Controlled axis: Y1, Y2, X1, X2, Z1, Z2, R1 & R2 Control: Trumpf T3500T (3D colour/grafic visualization ) Equipped with: Tool package for 15.000 euro. 2 manual “lay up” arms Trumpf manually quick clamp top tool holders in full width - made by Wila Machine appears as brand new. Price when bought in 2021: Euro. 115.000
