Press brake

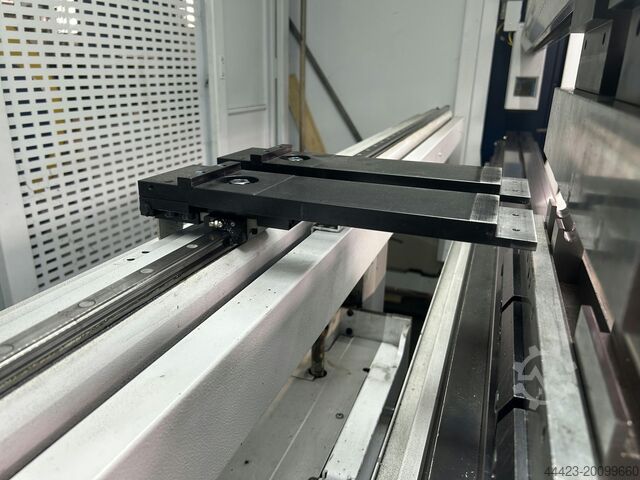

Trumpf TruBend 3170 B26

Condition: excellent (used), functionality: fully functional, Year of construction: 2022, Trumpf TruBend 3170 B26 press brake Technical data Bending length: 4080 mm Press force: 170 t Distance between uprights: 4404 mm Year: 2022 Fpjdpfox Hwcpex Agmsb Operating hours: 2,700

Condition: good (used), cutting range round steel at 45°: 250 mm, cutting range round steel at 90°: 280 mm, cutting height (max.): 330 mm, Saw capacity: 280 mm round 330 mm square Fpsdpfx Astt Nd Rogmob Saw capacity 45º: 250 mm round 250 mm square Saw speed: 40/80 mtr.min. Sawbelt: 3.320 x 27 x 0,9 mm Saw angle: 0 - 60º Featured with: - Coolingunit Country of origin: Italy Motor power: 1,8 kW Machine weight: 700 kg Machine LxWxH: 190 x 120 x 135 cm

Condition: excellent (used), Year of construction: 2017, operating hours: 3,200 h, pressing force: 130 t, Space requirement: 11,500 mm x 10,000 mm + Increased installation height/lift + 230 mm + 4-axis backgauge system + Rear work area lighting + Front work area lighting - TruBend documentation Automation BendMaster (60) Standard equipment: BendMaster - Sturdy base frame and manipulator made of cast aluminum construction - Load capacity 60 kg, sheet plus gripper - Low-level floor track in welded construction Fpsdpfxjxayl De Agmob - Sheet sensor for contour detection - Rotary feedthrough for quick gripper change Gripper coupling on the BendMaster - Sensor system for 4-axis backgauge system - Electric drives - Double sheet detection - NC regrip station - Vacuum generation for suction grippers Control - TRUMPF PC control with operator terminal - Teleservice via internet - Convenient operation: screen, mouse, keyboard Safety - Safety fence with access door Special equipment + Track extension to 10 m + Gripper change console + Modular vacuum gripper without separation (materials for 3 grippers) + Modular vacuum gripper with separation (materials for 3 grippers) + Clamp gripper with rotary axis + Sheet removal station with linear axis + Additional pallet for sheet removal station + Right-hand side door for safety fence (or left-hand side in combination with ToolMaster) Machine - Robust machine frame entirely in steel construction - Press beam - Spherical mounting of pressure beam with inclined position - Electro-hydraulic upper drive system with 4-cylinder technology - Optical set-up and positioning assist with control valves - Generous free space for bending - Flat front covers - Block hydraulic system - Electronic pressure gauge - Measuring system with glass scale and spring-back compensation - Hydraulic oil in machine (lifetime lubrication) - Oil cooler - Electrical cabinet cooling via air-to-air heat exchanger - Modern machine design Backgauge System - 2-axis backgauge system, X and R axes Tool Clamping - Hydraulic upper tool clamping - Lower tool holder, hydraulic clamping, hardened - Lower tool displacement, 2 positions, pneumatic Crowning - CNC crowning Control - TRUMPF TASC 6000 - Graphical workshop programming - Windows XPe (embedded), Pentium 4 with 2.8 GHz clock speed - 2 GB RAM - 15-inch touch screen - Network capability - Teleservice via internet Operation - Control panel with LCD keypad and foot switch - Communication rail - MobilControl Safety - Standard safety equipment - CE marking

Year of construction: 2008, condition: ready for operation (used), Three small window and profile processing machines are available. 1) Urban WS 103 water hole cutter, year of manufacture: 2008. 2) Urban AKS 1105 single-head automatic welder with new cylinder. 3) Stegmaier AK 84 flat threshold for window frames, year of manufacture: 1984. On-site inspection is possible. Individual sale possible. Fpjdpfx Agowwvwysmob

Condition: used, Year of construction: 2005, Technical details: x-travel: 730 mm y-travel: 650 mm z-travel: 730 mm control: Professional 3 (Fanuc 18i) turning speeds: 12000 1/min spindle drive: 22 kW Torque: 166 Nm Number of tool station: 132 HSK-A 63 max. tool length: 360 mm max. tool diameter: 70 mm max. tool-dia with free toolbox: 140 mm max. tool weight: 12 kg tool changing time: 0,9 / 2,5 sec Fjdowlgc Aopfx Agmspb numbers of pallets: 2 Pallet dimension: 500x500 mm working diameter: 800 mm table load: 0,7 t distance spindle center to table: 80 - 730 mm Distance spindle nose - pallet centre: 70 - 800 mm rapid travel x/y/z: 50 m/min Feed x/y/z: 50 m/min total power requirement: 65 kVA Dimensions (L/W/H): 7 x 2,5 x 3,4 mm weight of the machine ca.: 9,5 t Custom Macro, Number of Variables: 600 program memory: 500 kB = 1280 m Accerories Chip conveyor Signal lamp 3 colors Coolant through spindle 30 bar 30 l/min Rotoclear window Tool breakage control in magazine High speed countour control No. of tool offset pairs 99 This very solid Makino A 61 has a full B-axis, coolant through spindle 30 bar. *

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2016, TRUMPF TruBend Cell 5000 – Robotic Bending Cell | Year 2015 Fpsdpsxdfqmsfx Agmob TruBend 5130X Press Brake BendMaster Robotic Bending System Control System: TASC 6000 (robot and press are programmed via the machine interface) Press Brake Specifications: Press force: 130 tons Bending length: 3,250 mm Year of manufacture: 02.2016 More information and video available on request ...

Condition: used, Year of construction: 2008, x-travel 2500 mm y-travel 2500 mm z-travel 1700 mm control Siemens Sinumerik 840 D max. workpiece weight 6000 kg spindle diameter 130 mm quill stroke 700 mm tool taper ISO 50 DIN 69871 - AD max. torque at the spindle 1847 Nm total power requirement 65 kW weight of the machine ca. 45 t dimensions of the machine ca. 10,9 x 9,3 x 5,7 m Fjdow N S E Njpfx Agmepb Work table -Clamping surface 2500 x 2000 mm -Table height above floor 800 mm Feed speed -x-axis 0.5 to 10000 mm/min -y-axis 0.5 to 10000 mm/min -Z-axis 0.5 to 10,000 mm/min -Rapid traverse (x/y/z) 25 / 25 / 25 m/min -Max. feed force (x/y/z) 28,000 / 27,000 / 28,000 N Spindle speeds in rpm -Gear stage 1: 6 to 1004 rpm -Gear stage 2: 950 to 4000 rpm Equipment/accessories: -Approx. 30 SK 50 tool holders -1 measuring probe -Coolant system/paper belt filter & chip conveyor -Cooler -Oil mist extraction -Fixators -Technical documentation

Condition: ready for operation (used), Year of construction: 1997, functionality: fully functional, machine/vehicle number: 0306283/0, - Very good metal band saw. High cutting performance. - 5 new saw bands Fpsdpfx Agjxnartomeb - Roller conveyor approx. 5 m (also fully functional)
