Punching machine

TRUMPF TruPunch 3000

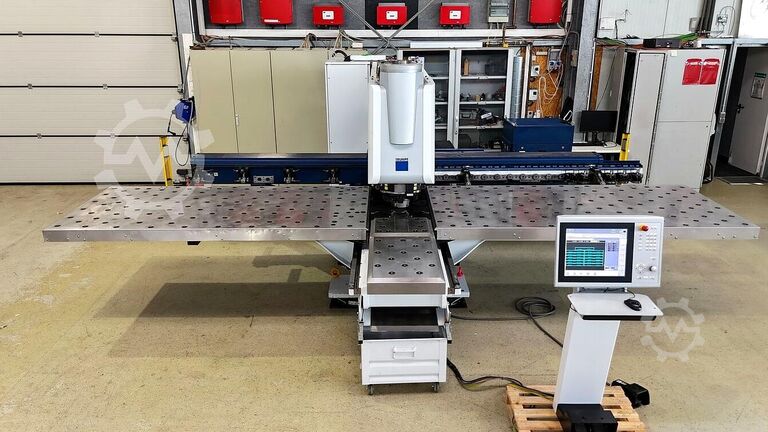

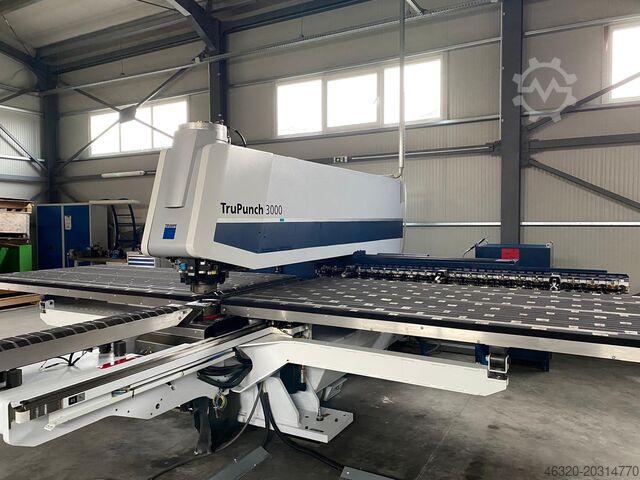

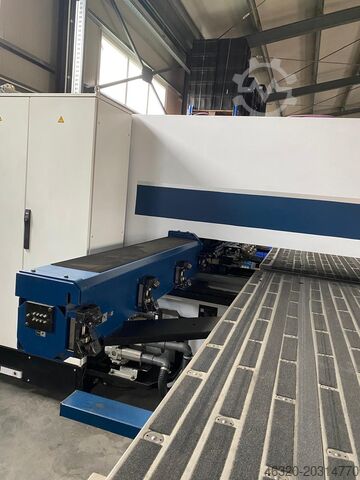

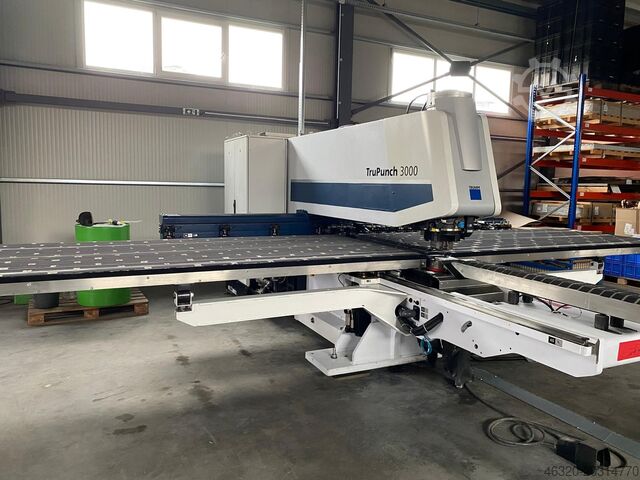

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, punching force: 18 t, working range: 30,001,500 mm, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,600 mm, Very well maintained and fully serviced used Large format Trumpf 3000 cnc punch press for sale Manufacturer TRUMPF Type TruPunch 3000 (S11) Year 11/2012 Ijdpfxsxrngge Ad Dstp Working area 3000 x 1500 mm - without reposition Working range on cross-side (X-axes) 3000 mm Working range along (Y-axes) 1600 mm Large throat 1600 Complete with multi tool capability Type S11 Video available upon request

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, CNC punching machine with only approx. 11,600 operating hours, immediately available Manufacturer: TRUMPF Model: TruPunch 3000 - 1600(S11) Year of manufacture: 11/2013 Operating hours, approx.: only 11,600 h Sheet format: Large format TECHNICAL DATA: Working area: 3,000 x 1,500 mm, with repositioning Max. workpiece weight: 160 kg Punching and hold-down force: 180 kN and 20 kN Max. stroke rate: Punching: 800 1/min, Marking: 2,500 1/min Dimensions (L x W x H): 6,500 x 6,203 x 2,252 mm SPECIAL EQUIPMENT: - MultiTool function - MultiShear function - Marking / Fast embossing function - Deburring and roller technology - Adaptive stroke calibration - Punch slug breakage monitoring - Lowerable die - Spray degreasing for dies with fill level monitoring - Additional clamp - Sheet collision detection - Stop pin, outer side, left position outside STANDARD EQUIPMENT: Machine: - Working area 3,000 x 1,500 mm (with repositioning) - Rigid C-frame for easy access Iodpjxn Tywofx Ad Djtp - Coordinate guidance for high-precision machining - Linear magazine with 17 tool stations and 3 clamps - Drives with maintenance-free 3-phase servo motors - Repositioning device with programmable hold-down - Ball tables - Parts chute - Programmable support table - Good parts container - Scrap container - Automatic shut-off mechanism - Transport and installation device - Stop pin (right side, inside) - Foot switch for closing the clamps Punching head: - Servo-electric punching head - Rotatable single-tool adapter - Programmable hold-down - Tool length compensation - Spray degreasing for punch - Punch slug extraction - Forming - Manually adjustable pressing force - Stroke counter for punch - Monitoring of fill level for thread-cutting and tool lubrication Control: - Control system based on Bosch MTX CMP 70 - Operating panel with 17" touchscreen - NC program management - Integrated technology data - Teleservice via Internet - Integrated e-shop - Production planning - Programming - Advanced workshop programming - Data transmission - USB interface Safety: CE marking (ex works) Dual-beam light barriers

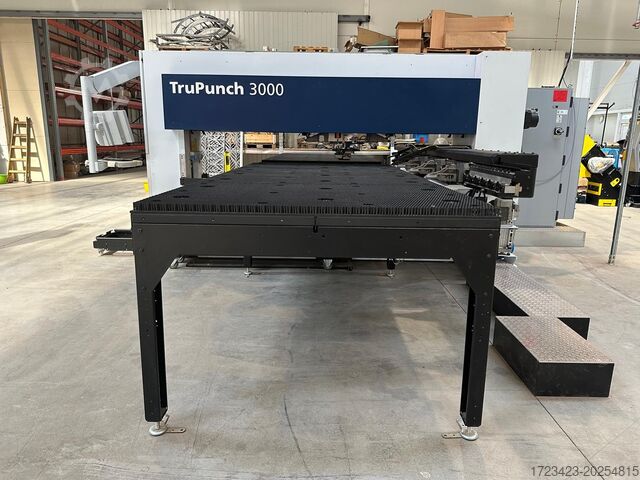

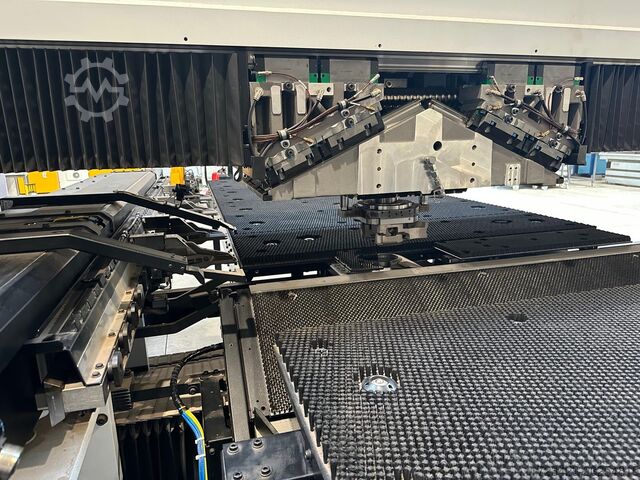

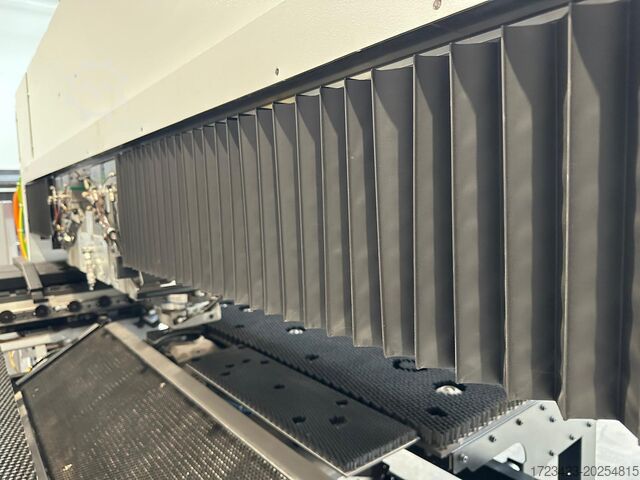

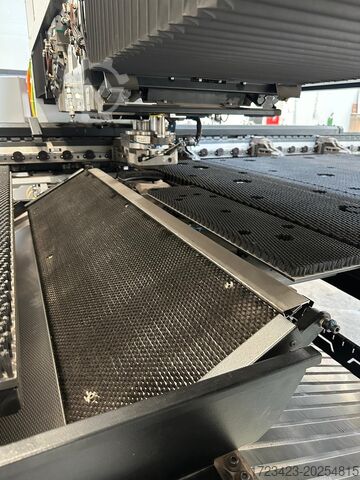

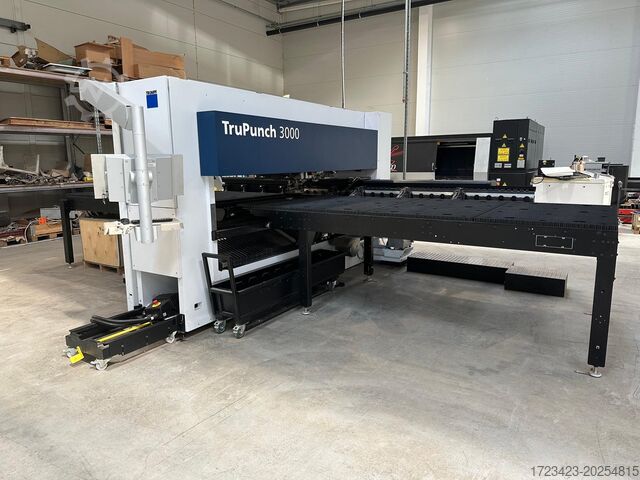

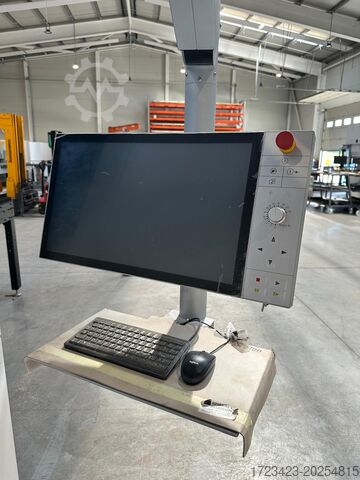

Condition: as good as new (ex-display), Year of construction: 2022, operating hours: 60 h, functionality: fully functional, +++ Demo machine, approx. 60 operating hours +++ +++ Descending Die +++ Basic machine: TruPunch 3000 large format (S20) Machine: - Box frame - Hybrid axis system - Linear tool magazine with 24 stations for clamps and tools - Hydraulic clamps (3x) - Drives with maintenance-free three-phase motors - Repositioning with programmable presser foot - Foot switch to close clamps - Part chute, right - Part removal flap, left - Sensor for part removal flap - SortMaster Compact retrofit-prepared Punching head: - Delta Drive - Rotating single-station tool adapter - Programmable presser foot position - Tool length compensation - Punch spray lubrication - Punching slug vacuum - Forming function - Punch stroke counter Control: - TRUMPF control based on Rexroth IndraMotion MTX - Touch panel with 19" TFT color display - Touchpoint - Auto-shutdown - Remote support interface - Program manager - Production plan Data transmission: - Central Link - Online Update Manager Safety: - CE marking and EC Machinery Directive - Double-beam safety light barrier Advanced standard configuration: - First index pin (inside right) - Ball tables - Part chute for finished part container - Chip container to rear for removal Advanced machine and punching features: - MultiTool function - MultiShear function - MultiBend function - Tapping function with thread counter - Forming tap breakage control - Lubricant level monitoring - Unlimited time license - Marking/Quick beading function (option) - Engraving function - Deburring and roller technology function - Adaptive stroke calibration - StripLine - Die spray lubrication with fill level monitoring - Descending Die - Integrated flattening function - Smart punch monitoring - Additional clamp - Height-adjustable clamp - Vibration damping - Chip container removed to front - Brush tables with loading and unloading assistance - Warped sheet detection Technical data TruPunch 3000 large format (S20) Dimensions / Weight: Width: 7644 mm Depth: 7666 mm Height: 2200 mm Weight (fully equipped): 13,800 kg Control / Hardware / Electrics: Hard disk type: SSD Number and size of hard disks: 2 x 120 GB Customer program memory: 10 GB Display: Touchscreen Display size: 21.5 in Interfaces: USB Network: RJ45 Control type: Bosch CML75 Operating system: Windows 10 IoT Axis data: X/Y/C axis drive: NC-controlled, maintenance-free three-phase servo motors Punching head drive: Electric Max. X axis speed: 90 m/min Max. Y axis speed: 60 m/min Max. simultaneous axis speed: 108 m/min Max. C axis speed (punching): 350 rpm Max. C axis speed (tapping): 350 rpm Max. punching stroke rate (E=1mm): 690 1/min Max. marking stroke rate: 1000 1/min Accuracy — positioning deviation Pa: +/- 0.1 mm Accuracy — position range Ps: +/- 0.03 mm Smallest programmable increment: 0.001 mm Working range / Workpiece size: Max. sheet thickness: 6.4 mm Max. workpiece weight: 230 kg X axis working range: 3000 mm Y axis working range: 1550 mm Punch-specific data: Max. punching force: 180 kN Max. presser foot force: 20 kN Itjdpfxsxmfc Ue Ad Djp Max. tool size, punching (outer diameter): 76.2 mm Max. tool size, forming (outer diameter): 101.6 mm

Condition: refurbished (used), Year of construction: 2014, operating hours: 35,418 h, functionality: fully functional, punching force: 18 t, sheet thickness (max.): 6 mm, feed length X-axis: 2,500 mm, feed length Y-axis: 1,250 mm, HIGHLIGHTS - Last maintenance in February - Punch head: stripper holder and seals replaced - Lower clamping piston replaced - C1K encoder and needle bearing renewed - All wear parts and maintenance items serviced TECHNICAL DETAILS Max. punching force: 180 kN Working area: 2,500 x 1,250 mm Max. sheet thickness: 6.4 mm Control: Bosch MTX CMP70 Tool system: 18 tool stations, with 2 clamps Part chute: 500 x 500 mm Hydraulic single tool holder: 360° rotation Programmable hold-down device: active / passive / re-track MACHINE DETAILS Operating hours: 35,418 h (28.02.2025) Space requirements: 6,500 x 6,000 x 2,230 mm Machine weight: 9,800 kg Total connected load: 18 kVA EQUIPMENT - Rigid, easily accessible C-frame - Linear magazine for tool stations - Foot switch for clamp closing - Servo-electric punching head - Punch lubricator (spray lubrication) - Punch slug extraction - Adjustable hold-down force - 17" touch screen - Teleservice via Internet - Automatic shutdown - USB interface - CE marking - Multi-beam safety light barriers - Hydraulic quick shut-off - Multitool function - Deburring and roller technology function Ijdpfxowu Evys Ad Dstp - Thread forming function - Engraving tool function - Marking/fast bead forming function - Sensor for part chute - Vibration-dampened installation

Condition: used, functionality: fully functional, Year of construction: 2017, operating hours: 5,899 h, Other machines and tools included with the machine: - Tools belonging to the machine (a detailed list can be provided) - Quick Sharp - Multiset ITM BASIC MACHINE: TruPunch 3000 Large Format (S11) Machine Configuration: • C-frame structure • Coordinate guidance system • Linear magazine with 24 stations for clamps and tools • Hydraulic clamps (3 units) Isdpfjwm Shajx Ad Dotp • Maintenance-free 3-phase servo motor drives • Repositioning unit with programmable stripper • Foot switch for clamp closure • Part removal flap • Transport and assembly fixtures Punching Head: • Servo-electric punching head • Rotatable single tool adapter • Manually adjustable press foot force • Programmable press foot positioning • Tool length compensation • Spray lubrication system for punches • Vacuum slug removal • Forming capability • Adjustable stroke rate • Tool lubrication level monitoring Control System: • TRUMPF controller based on Bosch Rexroth IndraMotion MTX • Control panel with 17" TFT display • Integrated technology database • Internet-based teleservice interface • Automatic shutdown function • NC program management • Production planning feature Data Transfer: • USB and network interfaces • Network connection (RJ45) Safety Features: • CE marking • Multi-beam light curtains • Rapid drive shutdown Advanced Standard Equipment: • 1st index pin position, right-hand inner side • Ball transfer tables • Finished parts container • Scrap/chip container OPTIONAL BENEFIT PACKAGES: 2. Productivity Package • MultiTool function • Sensor for part chute • Spray die lubrication with level monitoring 3. Punch Quality Package • MultiShear function • Deburring and roller technology • Adaptive stroke calibration 4. Forming Package • Tapping function with breakage detection • Marking/rapid beading function • MultiBend function • Height-adjustable clamps 5. Engraving Function 6. Smart Punch Monitoring 7. Wireless Operation Point 8. MobileControl App 9. 21 RTC cartridges + TOOLS!
