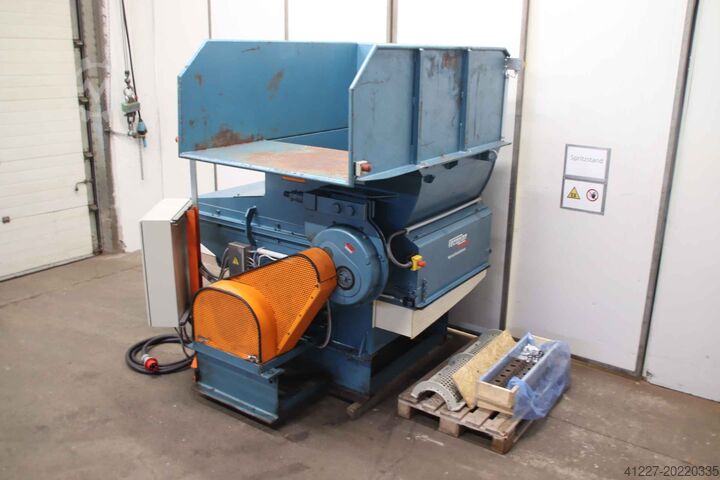

Single-shaft shredder 18.5 kW

Vecoplan VAZ120/105

Condition: used, rotor length: 1,000 mm, power: 15 kW (20.39 HP), rotor flight circle: 250 mm, Inlet opening: 1,050 x 1,200 mm Rotor flight circle: 250 mm Drive: 15 kW Csdor T I Tljpfx Abwshc

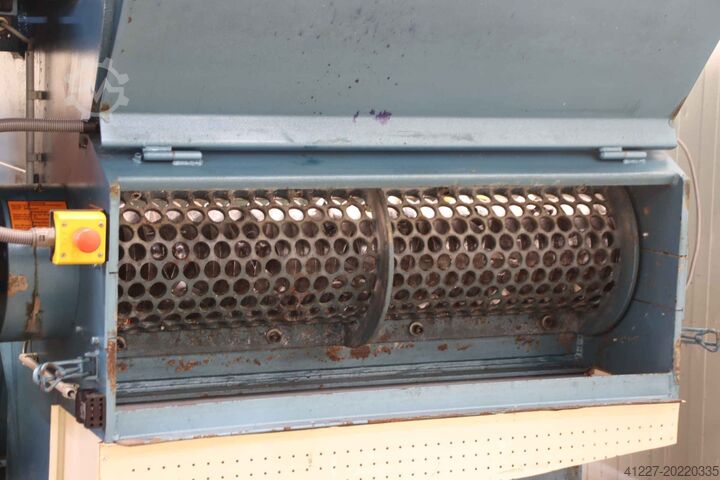

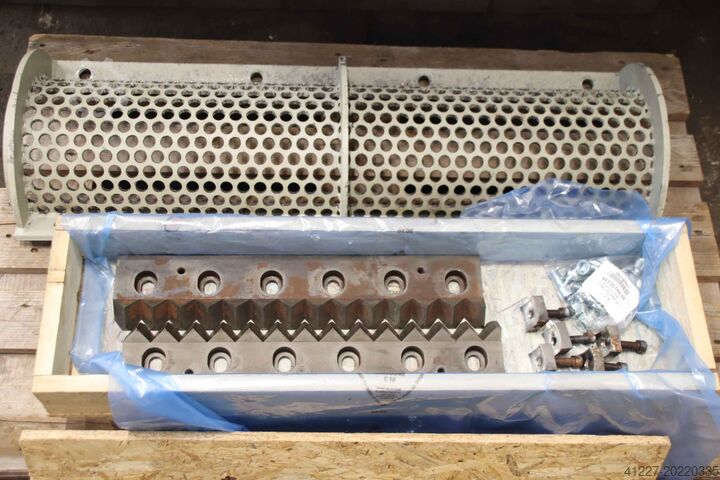

Condition: used, Year of construction: 1991, VECOPLAN VAZ 120/105-U Waste Crusher For shredding particleboard and solid wood waste, drive power 18.5 kW, throughput 1000 kg/h for chipboard waste, 350 kg/h for solid wood waste, screen diameter 25 mm, rotor diameter 235 mm (circle), width 1070 mm, 120 rpm, feed unit : Sectional steel construction , driven by hydraulic cylinders, in plastic guide rails, laterally with rollers, main drive E-motor with turbo coupling, V-belt drive, 2-stage helical gearbox, motor rated power 18.5 kW, rated current 36.5 A, 1455 rpm, 400 V, 50 Hz, Degree of protection IP 54, Type B 3, V-belt pulley Turbo clutch D 1 = 200 mm, V-belt pulley Drive D 2 = 200 mm, Number of V-belts Z = 3 pieces, V-belt Effective length LW = 1900 mm, centre distance ENOM = 635.84 mm, Door length L = 635.84 mm, impression depth EA = 23.35 mm, test force per V-belt F = 75?, Turbo coupling: hydrodynamic coupling, load-free starting of the electric motor, overload protection, hydraulic ic unit: Compact unit with 2 operating speeds, drive power 1.0 / 1.4 kW, drive pressure max. up to 180 bar, extraction nozzle: minimum air velocity V = 28 m/s, inlet length 1200 mm, inlet width 1050 mm, Codpfxot Dh T Dj Abwehc waste shredder with universal rotor- dimensions in mm: approx. 6500 x 2700 x 3600, weight in kg: approx. 2300, Machine quality: fully operational after maintenance. year of construction: 1991
