Tenoning machine

Vertongen

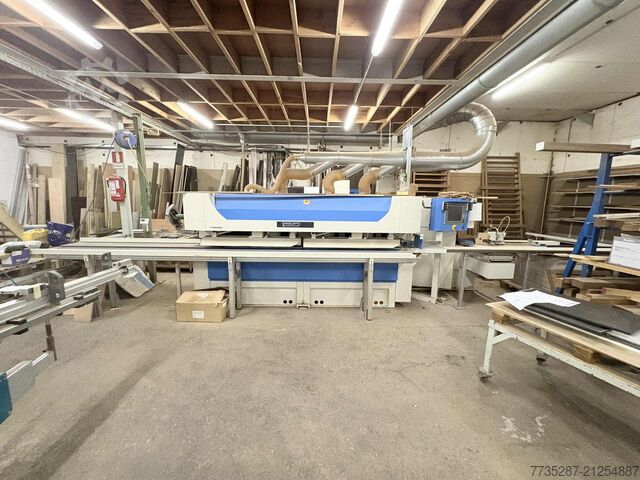

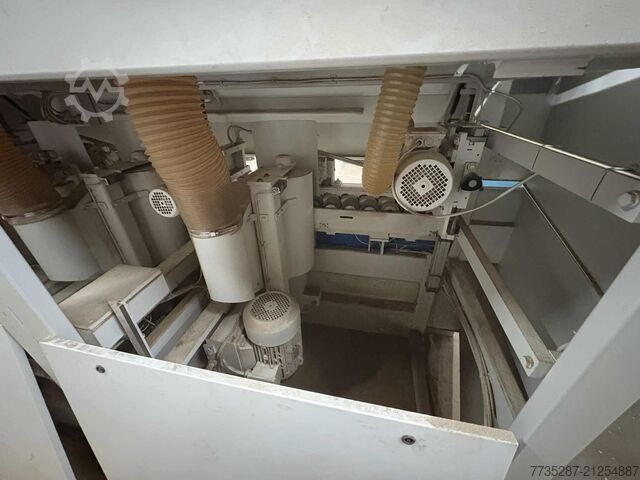

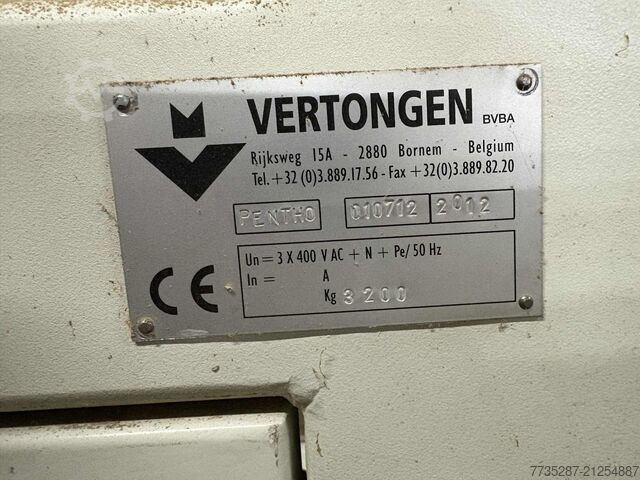

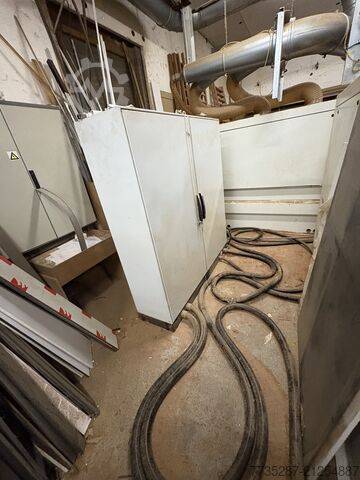

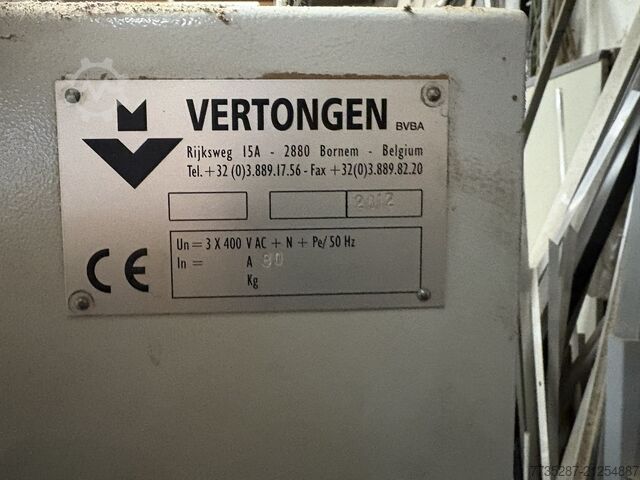

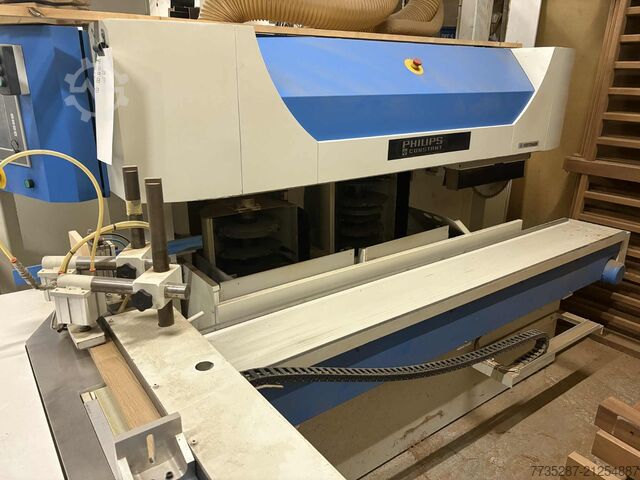

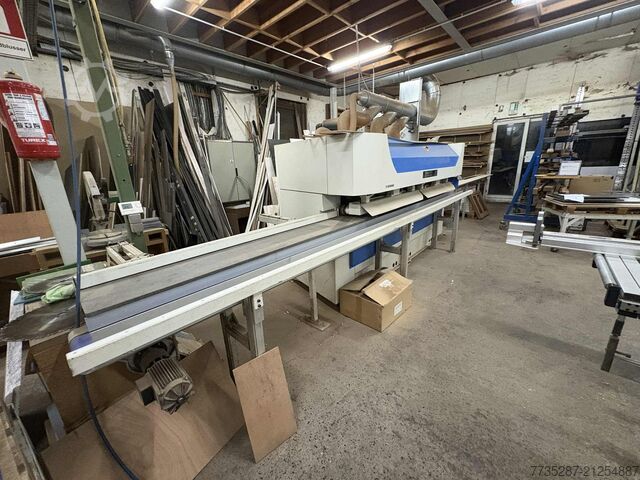

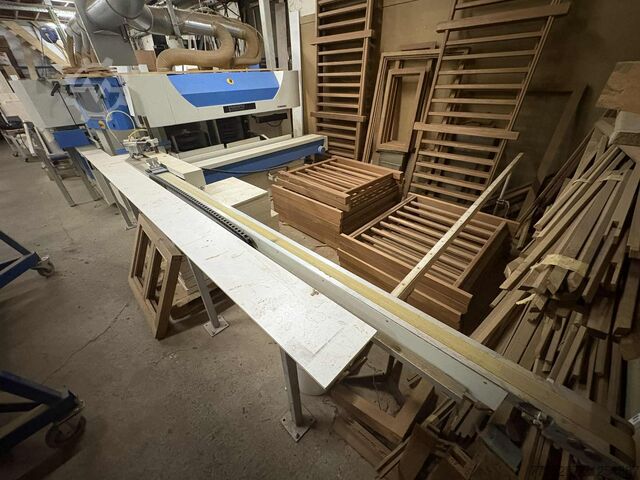

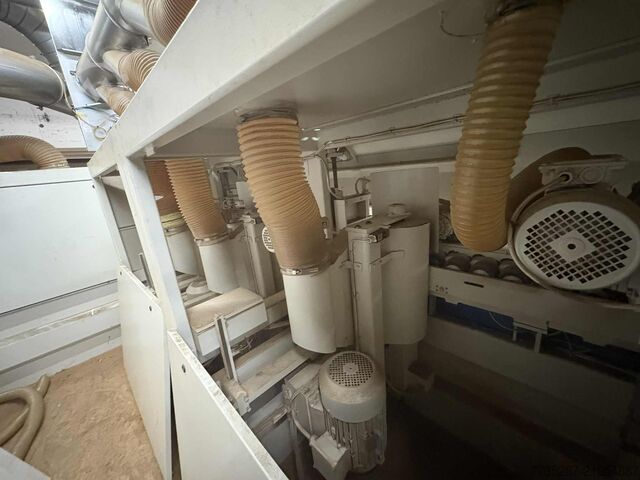

Condition: good (used), Year of construction: 2012, functionality: fully functional, overall weight: 7,300 kg, total height: 1,750 mm, total length: 10,000 mm, total width: 3,750 mm, working width: 3,800 mm, For sale: Vertongen Penpro Control window production line Year of manufacture: 2012 Condition: Good, working condition Complete industrial solution for the production of windows and exterior joinery with high precision and efficiency. 🔹 Description The Vertongen Penpro Control is engineered for flexible production of window frames without setup time. Thanks to the unique combination of tool spindles, various profiles and dowel joints can be produced in different wood thicknesses and widths. It offers stable and highly accurate positioning of the workpieces. After machining, components automatically return to their starting position, resulting in high repeatability and consistent dimensions—ideal for serial production. The central working position allows operation by a single operator, ensuring an efficient workflow and reduced labor costs. 🔹 Applications - Tenoning - Profiling - Window and exterior joinery - Sliding windows & French doors - Angled windows - Solid cabinet doors - Series production with high precision 🔹 Technical specifications - Brand: Vertongen Hodoyky Dispfx Afcsi - Model: Penpro Control - Year of manufacture: 2012 - Industrial, robust design - Suitable for 68 mm and 90 mm profiles - Can be operated by one person - High repeatability

Condition: excellent (used), Vertongen M-300 Combi Throughfeed Sander Hedpoyhn S Ajfx Afcji Working width: 300 mm Working height: up to 200 mm Combi unit with pad Pneumatic oscillation Manual raising and lowering of the work table Two feed speeds Main motor: 5.5 kW Abrasive belt: 300x1900 mm Weight: approx. 600 kg

Condition: excellent (used), Through-feed sander Vertongen S320 Working width 300 mm Working height up to 180 mm Combi unit with pad Manual raising and lowering of the working table Two feed speeds: 7–14 m/min Hedpfoyg Dlcsx Afcoi Main motor 5.5 kW

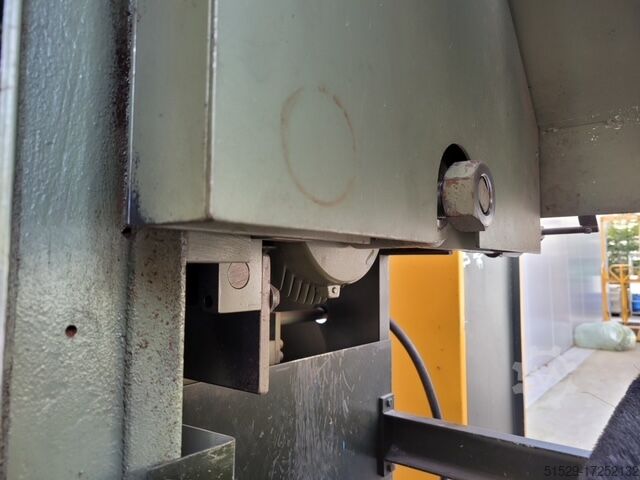

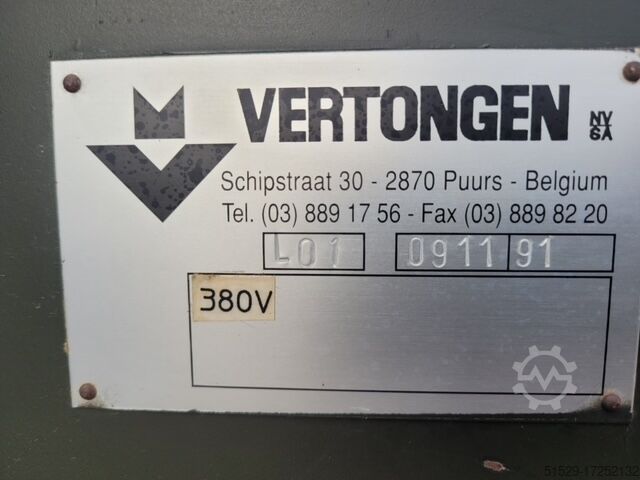

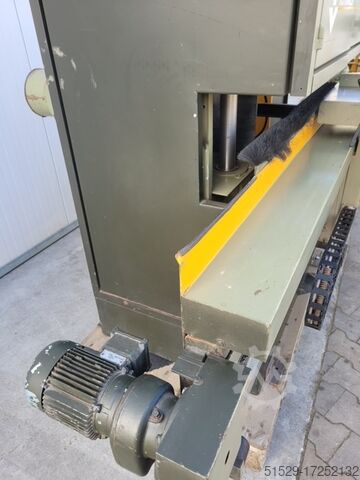

Year of construction: 1994, condition: used, Used machine Hodpfxjxq Ua Ro Afcoi Year of manufacture: 1994 Equipment and technical specifications: Working width: 300 mm Sanding belt oscillation: mechanical Roller guide: rubber-coated Sanding unit: with sanding shoe Feed speed: 2-stage Feed direction: reversible (forward/reverse) Motor start: star-delta Power supply: 380 V Weight: approx. 450 kg Availability: short-term Location: Baden-Württemberg

Condition: used, Year of construction: 1992, spindle diameter: 50 mm, milling spindle length: 545 mm, Longitudinal profile milling machine with lifting spindle 545mm long, diameter of lifting spindle D=50mm, motor 5.5kW. Glazing bead saw D=180mm, 2,2kW. Feed rate 2-4-6-12m/min Hedoua Swwepfx Afcsi

Condition: like new (used), Working width 300 mm Mechanical oscillation Hedpfx Afexp I Dmjcsi Rubber roller Shoe Two-stage feed speed Weight approx. 450 kg Star-delta motor start Safety switch 380 V

Condition: refurbished (used), Year of construction: 2001, machine/vehicle number: 081001, WOODWORKING TENONING MACHINE WITH AUTOMATIC FEED, 4 OPERATIONS Brand: VERTONGEN Model: PENTHO C 4 B Serial No.: 081001 Year: 2001 (Photos taken prior to overhaul, functional testing & cleaning) Automatic cycle woodworking tenoner with manual operator group selection and fine adjustment. MACHINING CAPACITIES: - Max. wood section (thickness x width): 135x230 mm - Max. cutting height: 135 mm MACHINE CONFIGURATION: Table: - Cast iron table 400x600 mm, tiltable up to 60°, positioning by clamping - 2 pneumatic hold-down clamps for wood clamping - Extendable metric stop ruler with double stop, anti-splinter profile, and end support 1) Sawing: cross-cutting - 2.2 kW (3 HP), blade speed 3,000 rpm - Saw blade Ø400 mm, bore Ø30 mm - Cutting depth adjustment 140 mm 2) Top and bottom planing cutterheads with carbide knives: - Cutterhead with W3 carbide knives, Ø160xL140 mm - Top head 3 kW / bottom head 2.2 kW, rotation speed 4,500 rpm - Independent manual fine adjustment for withdrawal or positioning: Top cutterhead axial movement: -40/+35 mm, vertical travel 0-135 mm Bottom cutterhead axial movement: -40/+10 mm, vertical travel 0-80 mm 3) Spindle moulder: - Power 5.5 kW, speed 4,000 rpm - Spindle Ø50 mm, useful length 160 mm - Vertical travel 150 mm, horizontal travel 130 mm Hedpfjwxdb Nsx Afcoi - Max. tool diameter (tenoning discs) Ø350 mm 4) Shoulder head (cutterhead) for left and right operation: - Power 2.2 kW (3 HP), speed 4,500 rpm - W3 carbide knife cutterhead Ø160xL140 mm - Manual fine adjustment for withdrawal, positioning, and travel OTHER TECHNICAL FEATURES: - Main power supply: 3-phase + N + PE, 400V, 50Hz - Installed power: 15.1 kW (20.5 HP), rated IN 30A - Counters for manual operational adjustments - Pneumatic supply: 6 bar working pressure (for hold-downs) - Dust extraction ports and recommended airflows: 360 (saw) + 2500 (cutterheads) + 1250 (spindle moulder) + 2500 (shoulder head) m³/h Air velocity 25-30 m/s Manifold supplied, 1 connection, flanged edge 280 mm. If shoulder operation is used, provide for branching: 160F/150F/150F flex hoses - CE marking, automatic retraction of guards, braked motors, padlockable main isolator, emergency stop buttons Transport dimensions (LxWxH): 3.70 x 1.70 x h.2 m Weight: 1650 kg

Condition: excellent (used), Year of construction: 2008, 2 x pneumatic clamps 1 x Saw unit ( 4 Kw ) 1 x moulding, spindle, bottum : 545 x 40mm ( 4 Kw ) Hodpfx Afswz Ei Tscsi 1 x Moulding, spindle, bottum : 545 x 40mm ( 2,2 Kw ) 1 x moulding, spindle, top : 545 x 40mm ( 2,2 Kw ) Maximum moulding tool : Ø 350 mm Lot of tools/heads for window production included. Table dimensions : 500 x 1030mm Total Amp : 30 Weight : 1640 Kg Ask for WHATSAPP video presentation ZUANI heads/tools on box included ( 13 Pc. ) + 30 pc. of loose tools/discks, included. Original manual + electric diagram
