Automatic Drilling Machine

WEEKE BST 500

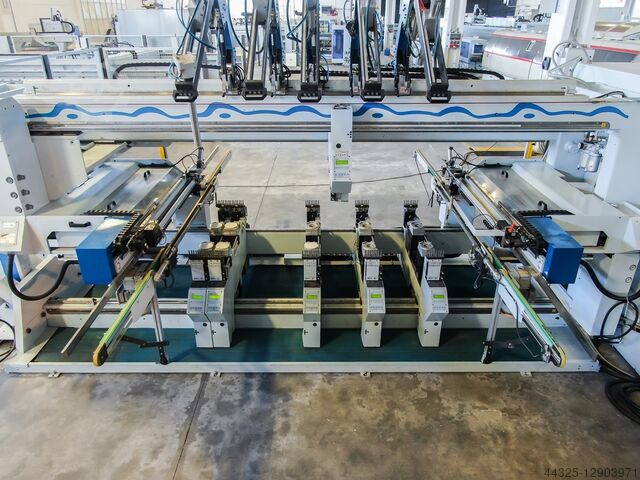

Condition: excellent (used), AUTOMATIC MULTI-BORER "WEEKE" In line with another machine possible Numerical Control Power Control Software WoodWop (TOPDRILL BST 500) Through-feed motorized transport belts (No.) 2 (with adjustable speed) Horizontal units/supports (No.) 2 Drilling heads/Blocks for each horizontal unit (No.) 2 Spindles for each horizontal drilling head (No.) 11 Max. working width (mm) 3000 Min. working width (mm) 250 Bottom vertical units/supports (No.) 6 Drilling heads/blocks for each bottom vertical unit (No.) 2 Spindles for each drill head of the bottom vertical supports (No.) Various Top vertical units/supports (No.) 2 Drilling heads/block for each top vertical unit (No.) 2 Spindles for each drill head of the top vertical supports (No.) Vertical top pressure clamps (No.) 6 Transport belt to evacute chips (wastes) Quota (axes) digital display Fpsdjh Ryhnspfx Aa Nop Total installed power (Kw) 26

Condition: excellent (used), Gantry (Portal) machine Movable panel (workpiece), movable working head (Horizontal position of the panel/workpiece) Numerical Control Power Control, Software WoodWOP Safety cabin (enclosure) of the working head and integral safety cabin (enclosure) of the machine In-feeding working table (panel support). Out-feeding working table (panel support) Panels (workpieces) feeding by No. 3 motorized belts - Feeding speed (m/min) max 130 ca. Minimum workpieces dimensions (X - Y - Z) mm 250 x 100 x 15 Maximum workpieces dimensions (X - Y - Z) mm 2500 x 1050 x 60 Motorized carpet to evacuate chips and wastes. Separate electric and command cabinet Total installed power: Kw 99 N° 2 WORKING GROUPS (TOP) - (SERVO-MOTOR X-Y-Z ): N° 4 Drilling heads (4 x Kw 2.3) with No. 10 vertical spindles each (total top spindles No. 40) Fedpogwbbqefx Aa Nepp N° 3 WORKING GROUPS (BOTTOM) - (SERVO-MOTOR X-Y-Z ) : N° 6 Drilling heads (6 x Kw 2.3) with No. 40 vertical spindles each (total bottom spindles No 240) N° 2 WORKING GROUPS (HORIZONTAL) N° 2 Drilling heads with horizontal spindles N° 21 Horizontal drilling spindles (Right Side) + N° 21 Horizontal drilling spindles (Left Side) N° 8 Dowel Inserting nozzle & glue injectors(Right side) + N° 8 Dowel Inserting nozzle (Left Side) N° 2 Storage tanks for automatic feeding of the dowels OPTIONAL: WIRELESS BAR CODE SCANNER

Condition: used, machine/vehicle number: 006157, Max. panel width: 1000 mm Max. panel length: 2500 mm No of Bottom Units: 5 No of Top Units: 1 Fpjdpfopl Hvdox Aa Nsp Positioning of Units by NC: yes Lateral horizontal groups: yes

Condition: refurbished (used), Numerical Control Type Power Control Software No. 2 Through-feed motorized conveyoring belts No. 2 Horizontal units/supports (with Digital quota/axes display) Fjdevhcbzspfx Aa Nopp No. 2 Drilling heads for each horizontal unit (1 x Kw 1,5) No. 11 Splindles for each horizontal drilling head Max. working width (mm) 3000 Min. working width (mm) 250 No. 6 Bottom vertical units/supports (with Digital quota/axes display) No. 2 Drilling heads/blocks for each bottom vertical unit (2 x Kw 1,5) N. 11 Spindles for each drilling head of the bottom vertical supports No. 2 Top vertical units/supports (with Digital quota/axes display) No. 2 Drilling heads/blocks for each top vertical unit (2 x Kw 1,5) N. 11 Spindles for each drilling head of the top vertical supports No. 6 Vertical top pressure clamps Motorized carpet to evacuate chips and wastes Total installed power (Kw) 50 / 60 (ca.)

Condition: used, machine/vehicle number: 006158, Max. panel width: 1000 mm Fpedpfxjiwptuo Aa Nsp Max. panel length: 2500 mm No of injectors: 14 Positioning of Units by NC: yes

Condition: refurbished (used), Numerical Control Type Power Control Professional Software woodWOP / TopDrill BST No. 2 Through-feed motorized conveyoring belts (4 x Kw ?) Fodpsdz Uk Tsfx Aa Njpp No. 2 Horizontal units/supports (with Digital quota/axes display) No. 1 Drilling head for each horizontal unit (1 x Kw 1,5) No. 21 Splindles for each horizontal drilling head Max. working width (mm) 2500 Min. working width (mm) 250 No. 4 Bottom vertical units/supports (with Digital quota/axes display) No. 2 Drilling heads/blocks for each bottom vertical unit (2 x Kw 1,5) Miscellanous Spindles for each drilling head of the bottom vertical supports No. 2 Top vertical units/supports (with Digital quota/axes display) No. 2 Drilling heads/blocks for each top vertical unit (2 x Kw 1,5) Miscellanous Spindles for each drilling head of the top vertical supports No. 4 Vertical top pressure clamps Motorized carpet to evacuate chips and wastes Total installed power (Kw) 36

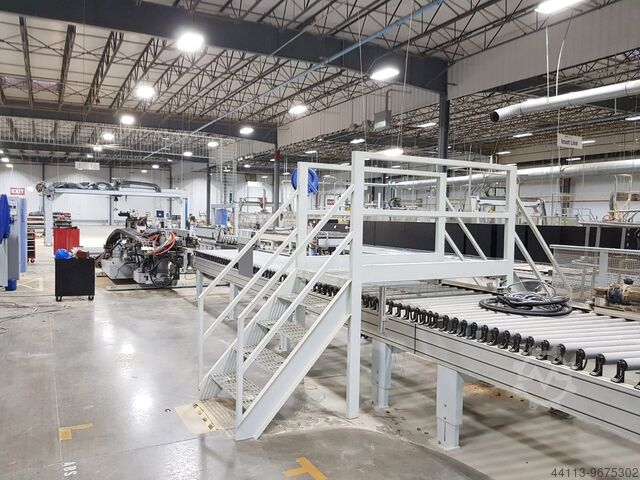

Condition: excellent (used), FULL LINE of Double-side Sizing-Milling & Edge Banding, max working width mm 2500, with automatic handling. Composed of the following machines: X04004A) Double Loader "BARGSTEDT" TBH 500/D/30/14 with central motorised roller conveyor X04004B) Turning station (90°) lengthwise to crosswise "HOMAG" Mod. TDR31/25/12 X04004C) Splitter "HOMAG" Mod. FPR620/04/15/PS/LQ to split in two parts the unique panel X04004D) Seperation Station "BARGSTEDT" Fpedpfxolikvhj Aa Nep X04004E) Double-side Sizing & Edge Banding machine "HOMAG" Mod. KFR 620 / 19 / QA / 25 X04004F) 1° Automatic (through-feed) Multi Borer "WEEKE" Mod. BST 500 D X04004G) 2° Automatic (through-feed) Multi Borer "WEEKE" Mod. BST 500 D X04004H) Turning station (90°) crosswise to lengthwise "HOMAG" Mod. TDR 51/25/12 X04004I) Motorized belt transfer "HOMAG" TR 10/70/12 X04004L) Splitter "HOMAG" Mod. FPR620/04/15/PS/LQ to split in two parts the unique panel X04004M) Double Stacker "BARGSTEDT" Mod. TSP 420/40/30/12 BA with central motorised roller conveyor

Condition: excellent (used), Numerical Control Type Power Control Fpedpfx Aaeivawps Nsp Software TOPDRILL BST 500 No. 2 Through-feed motorized conveyoring belts No. 2 Horizontal units/supports (with Digital quota/axes display) No. 1 Drilling head for each horizontal unit (1 x Kw 1,5) No. 21 Splindles for each horizontal drilling head Max. working width (mm) 2500 Min. working width (mm) 250 No. 4 Bottom vertical units/supports (with Digital quota/axes display) No. 2 Drilling heads/blocks for each bottom vertical unit (2 x Kw 1,5) N. 11 Spindles for each drilling head of the bottom vertical supports No. 4 Vertical top pressure clamps Motorized carpet to evacuate chips and wastes Total installed power (Kw) 20
